Cata OMD 7009 X Electric Oven Instruction Manual

1. Okwu mmalite

Thank you for choosing the Cata OMD 7009 X Electric Oven. This manual provides essential information for the safe and efficient use, installation, and maintenance of your appliance. Please read these instructions carefully before using the oven and keep them for future reference.

The Cata OMD 7009 X is a built-in electric oven designed for domestic use, offering a 70-liter capacity and a temperature range of 30°C to 250°C. It features a sleek black and stainless steel finish and an AquaSmart cleaning system.

2. Ntuziaka nchekwa

Na-agbaso usoro nchekwa ndị a mgbe niile ka igbochi mmerụ ahụ ma ọ bụ mebie ngwa.

• Nchekwa Eletriki: Ensure the oven is correctly earthed and connected to a suitable power supply. Do not use adapters or extension cords.
• Ụmụaka na ndị na-adịghị ike: Enwere ike iji ngwa a ụmụaka ndị gbara afọ 8 na karịa yana ndị nwere ike anụ ahụ, mmetụta uche ma ọ bụ nke uche ma ọ bụ enweghị ahụmahụ na ihe ọmụma ma ọ bụrụ na enyerela ha nlekọta ma ọ bụ ntụziaka gbasara iji ngwa ahụ n'ụzọ dị nchebe ma ghọta ihe egwu dị na ya. . Ụmụaka agaghị eji ngwa eji egwu egwu egwu. Ụmụaka agaghị eme nhicha na nlekọta onye ọrụ na-enweghị nlekọta.
• Ebe na-ekpo ọkụ: The oven and its accessible parts become hot during use. Exercise caution to avoid touching heating elements. Use oven mitts when handling hot dishes or oven accessories.
• Nhicha: Always disconnect the appliance from the power supply before cleaning. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass as they can scratch the surface, which may result in shattering of the glass.
• Ngwa ndị na-ere ọkụ: Echekwala ihe ndị na-ere ọkụ n'ime ma ọ bụ n'akụkụ oven.
• Igwe ikuku: Hụ na ikuku na-ekupụ ikuku gburugburu oven ahụ nke ọma mgbe ị na-arụ ọrụ.
• Ije ozi: Do not attempt to repair or modify the oven yourself. Contact qualified service personnel for all repairs.

3. Nwụnye na Ntọala

The Cata OMD 7009 X oven is designed for built-in installation. Proper installation is crucial for safe and efficient operation.

3.1 Nwepu

Carefully remove the oven from its packaging. Inspect the appliance for any damage incurred during transit. Report any damage to your retailer immediately. Retain packaging materials for potential future transport or disposal.

3.2 Ntinye na ikuku

Install the oven into a suitable cabinet opening. Ensure there is sufficient space for ventilation around the appliance as indicated in the installation diagram. The cabinet material must be heat-resistant.

Foto 1: Installation dimensions for the Cata OMD 7009 X electric oven. This diagram illustrates the minimum required cabinet opening dimensions for proper fitting and ventilation. All measurements are in millimeters.

3.3 Njikọ eletrik

Ọ bụ ọkachamara ọkụ eletrik ruru eru ga-arụ ọrụ njikọ ọkụ eletrik dịka iwu waya mpaghara si dị.tage and frequency ratings on the oven's rating plate match your household's power supply. The oven must be properly earthed.

4. Ntuziaka ọrụ

Familiarize yourself with the oven's controls before first use.

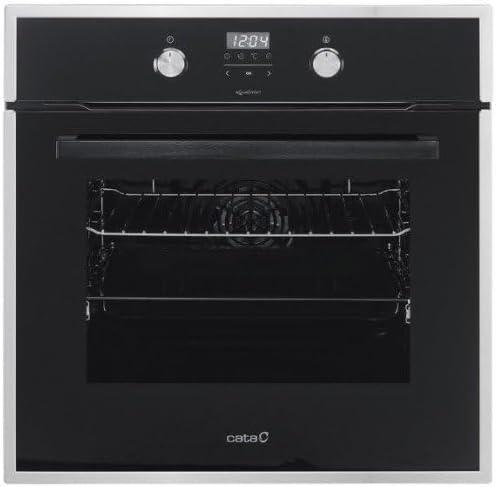

Foto 2: N'ihu view of the Cata OMD 7009 X electric oven, showing the control panel with two rotary knobs and a digital display. The left knob typically controls cooking functions, and the right knob controls temperature and time settings.

4.1 Ojiji mbụ

Before cooking food, heat the empty oven for approximately 30 minutes at maximum temperature (250°C) to burn off any manufacturing residues. Ensure the kitchen is well-ventilated during this process. A slight odor may be present; this is normal.

4.2 Isetịpụ oge

Upon initial power-up or after a power cut, the digital display will flash. Refer to the specific instructions in your oven's quick start guide for setting the current time using the control knobs.

4.3 Ịhọrọ ọrụ nri

Turn the left rotary knob to select the desired cooking function (e.g., conventional heating, fan-assisted, grill). The selected function will typically be indicated on the digital display or by an icon.

4.4 Ịtọ ntọala okpomọkụ

Turn the right rotary knob to set the desired cooking temperature, ranging from 30°C to 250°C. The temperature will be displayed digitally.

4.5 Setting the Cooking Time

Depending on the model, the right rotary knob or dedicated buttons may be used to set a cooking duration. The oven will automatically switch off once the set time has elapsed.

4.6 Na-ekpo ọkụ

For best results, preheat the oven to the desired temperature before placing food inside. The oven will indicate when the set temperature has been reached.

5. Nlekọta na nhicha

Nhicha na mmezi mgbe niile na-eme ka ọ dị ogologo ndụ yana ịrụ ọrụ kachasị mma nke oven gị.

5.1 Nhicha izugbe

• Hụ na oven ahụ dị jụụ ma kwụpụ ya na ọkụ eletrik tupu ị sachaa ya.
• Clean the interior and exterior surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners or scouring pads.
• Remove oven racks and accessories for separate cleaning in warm soapy water.
• Wipe down the oven door glass with a soft cloth and glass cleaner.

5.2 AquaSmart Cleaning System

The Cata OMD 7009 X features an AquaSmart cleaning system. To use this function:

1. Pour approximately 200ml of water into the bottom of the oven cavity.
2. Select the AquaSmart cleaning function (refer to your oven's specific controls for activation).
3. Allow the cycle to complete. The steam generated will soften food residues.
4. Once the oven has cooled, wipe away softened residues with a damp akwa .

6. Nchọpụta nsogbu

Tupu ịkpọtụrụ ọrụ ndị ahịa, review nsogbu na ngwọta ndị a na-ahụkarị.

7. Nkọwapụta

• Akara: Cata
• Ụdị: OMD 7009 X
• Nọmba nlereanya: 7034503
• Ụdị: Igwe ọkụ eletrik
• Ike: 70 lita
• Oke okpomọkụ: 30-250 Celsius C
• Akụkụ (H x W x D): 59.5 x 59.5 x 55.3 cm (approximate, refer to installation diagram for precise cutout dimensions)
• Arọ: 29 n'arọ (63.93 lbs)
• Ụdị mmanụ ụgbọala: Eletriki
• Klas ike: A
• GTIN (nọmba ihe azụmaahịa zuru ụwa ọnụ): 08422248077101

8. Akwụkwọ ikike na nkwado

For warranty information, please refer to the warranty card included with your purchase or contact your retailer. In case of technical issues or if you require assistance, please contact Cata customer support or an authorized service center. Do not attempt to repair the appliance yourself.

For further assistance, visit the official Cata websaịtị ma ọ bụ kpọtụrụ ngalaba ọrụ ndị ahịa ha.
