1. Okwu mmalite
This manual provides essential information for the safe and efficient use of your Cata MRA7108WH Built-in Electric Oven. Please read these instructions carefully before installation, operation, or maintenance. Keep this manual for future reference.
The Cata MRA7108WH is a Class A energy-efficient built-in electric oven with a 60-liter capacity and 7 cooking functions. It features a mechanical programmer and adjustable temperature settings ranging from 40°C to 240°C, designed for various cooking needs.
2. Ntuziaka nchekwa
Nchekwa izugbe:
- Ensure the oven is properly earthed.
- Do not allow children to operate the oven unsupervised.
- Keep flammable materials away from the oven during operation.
- Always use oven mitts when handling hot dishes or oven components.
- Do not use abrasive cleaners or sharp objects on the oven's surfaces.
Nchekwa Eletriki:
- Before cleaning or maintenance, always disconnect the oven from the power supply.
- If the power cord is damaged, it must be replaced by a qualified technician to avoid hazards.
- Adọpụla eriri ọkụ ka ị wepụ ngwa ahụ.
3. Ntọala na nwụnye
The Cata MRA7108WH oven is designed for built-in installation into a kitchen cabinet. Professional installation is recommended to ensure proper functioning and safety.
3.1 Nwepu
Carefully remove the oven from its packaging. Inspect for any damage during transit. Retain packaging materials for potential future transport or service.
3.2 chọrọ nwụnye
- Hụ na nha oghere kabinet ahụ kwekọrọ na nkọwapụta nke oven ahụ.
- Mee ka ikuku dị mma gburugburu oven ahụ.
- The electrical supply must be compatible with the oven's voltage (220 Volts) and power (2300 Watts).
3.3 Eserese nwụnye
Refer to Figure 1 for detailed installation dimensions. Ensure sufficient clearance for proper air circulation and heat dissipation.
3.4 Ojiji mbụ
Tupu ojiji mbụ, hichaa ime oven na mgbasa oziamp cloth. It is recommended to run the oven empty at maximum temperature for approximately 30 minutes to burn off any manufacturing residues. This may produce a slight odor, which is normal.
4. Ntuziaka ọrụ
The Cata MRA7108WH oven features a mechanical cooking programmer and two control knobs for function selection and temperature adjustment.

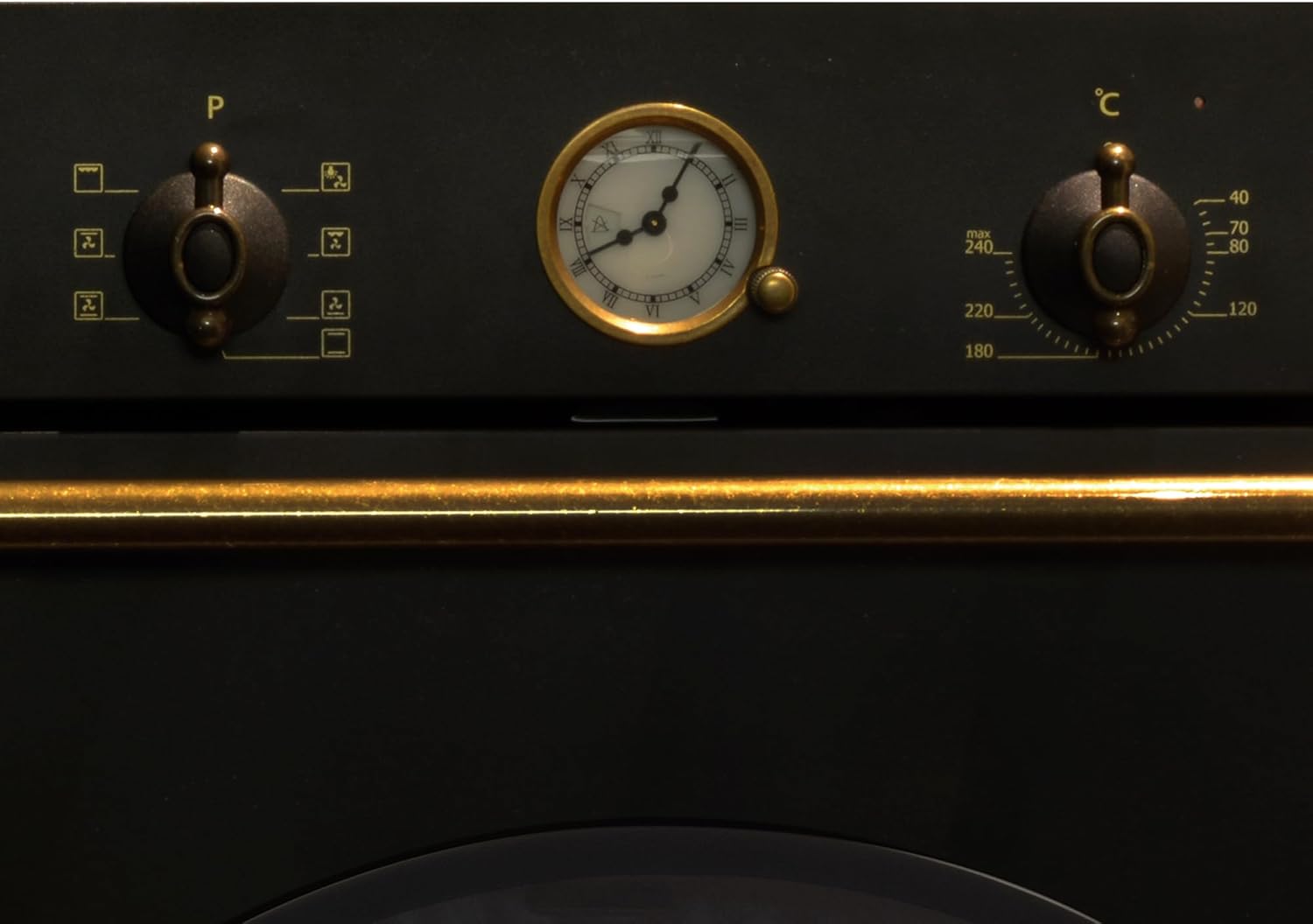

4.1 Ogwe njikwa gafereview
Ogwe njikwa nwere:
- Knob Nhọrọ Ọrụ (aka ekpe): Used to choose one of the 7 available cooking functions.
- Mechanical Timer (Center): Na-edobe oge esi nri.
- Igwe njikwa okpomọkụ (aka nri): Na-agbanwe okpomọkụ oven site na 40°C ruo 240°C.
4.2 Ọrụ nri
The oven offers 7 distinct cooking functions, including:
- Upper and Lower Heating: Standard baking and roasting.
- Convection (nke a na-enyere aka na fan): Even heat distribution for faster cooking and multi-level baking.
- Grill: Maka browning na toasting.
- Ọrụ ekpochapụ: Jiri nwayọọ gbazee nri ndị kpọnwụrụ akpọnwụ.
- Additional functions may vary; refer to the symbols on the function selector knob.
4.3 Ịtọ Oven
- Place food on the appropriate rack level. The oven has 5 rack levels for flexibility.
- Tụgharịa Knob Nhọrọ Ọrụ to the desired cooking mode.
- Tụgharịa Igwe njikwa okpomọkụ iji tọọ okpomọkụ achọrọ.
- Debe oge esi nri site na iji Mechanical ngụ oge. The oven will operate until the set time expires.
4.4 Ngwa
The oven comes with useful accessories:
- Ogbe achịcha grill: For grilling and supporting dishes.
- Ebe a na-esi achịcha: Standard tray for various dishes.
- Tray miri emi: For dishes requiring more depth or collecting drippings.
5. Nlekọta na nlekọta
Nhicha na mmezi mgbe niile ga-eme ka ọ dị ogologo ndụ na arụmọrụ kachasị mma nke oven gị.
5.1 Na-ehicha ime ime
- Kwe ka oven dị jụụ kpamkpam tupu ihicha ya.
- Jiri mgbasa ozi hichaa ime imeamp ákwà na ihe dị nro.
- For stubborn stains, use a specialized oven cleaner, following the product's instructions.
- The oven features removable glass for easier cleaning. Consult a service technician for instructions on removing the inner glass panels if needed.
5.2 Na-ehicha Mpụga
- Clean the exterior surfaces with a soft cloth and a non-abrasive cleaner.
- Avoid using harsh chemicals or abrasive pads, which can damage the rustic glass finish.
5.3 Dochie ọkụ oven
If the oven light needs replacement, ensure the oven is disconnected from the power supply. Unscrew the protective cover, replace the bulb with a suitable high-temperature resistant bulb, and reattach the cover. If unsure, contact qualified service personnel.
6. Nchọpụta nsogbu
Tupu ịkpọtụrụ ọrụ ndị ahịa, review nsogbu na azịza ndị a na-ahụkarị:
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Igwe ọkụ anaghị ekpo ọkụ. | No power supply; timer not set; function/temperature not selected. | Check power connection; ensure timer is set; verify function and temperature knobs are correctly positioned. |
| Nri anaghị esi nri nke ọma. | Incorrect rack level; oven overloaded; door not fully closed. | Adjust rack level; avoid overloading; ensure oven door is securely closed. |
| Igwe ọkụ ọkụ anaghị arụ ọrụ. | Igwe ọkụ adịghị mma ma ọ bụ tọgbọrọ chakoo. | Replace or tighten the oven light bulb (see Maintenance section). |
| Nnukwu anwụrụ ọkụ n'oge nri. | Food residue or grease buildup; high-fat food. | Clean the oven interior thoroughly; use a deeper tray for high-fat foods. |
Ọ bụrụ na nsogbu ahụ anọgide mgbe ị nwalechara ngwọta ndị a, kpọtụrụ ndị ọrụ ruru eru.
7. Nkọwapụta
| Njirimara | Nkọwa |
|---|---|
| Ụdị | CATA |
| Nọmba nlereanya | MRA7108WH (Reference: 07035409) |
| Ụdị | Built-in Electric Convection Oven |
| Ike | 60 lita |
| Klas arụmọrụ ike | A |
| Ọnụọgụ nke Ọrụ | 7 |
| Oke okpomọkụ | 40°C ruo 240°C |
| Ike | 2300 Watt |
| Voltage | 220 volts |
| Akụkụ (W x H x D) | 59.6 cm x 59.5 cm x 58 cm |
| Ibu | 31.5 kilogram |
| Ihe onwunwe | Glass (Rustic Black Finish) |
| Atụmatụ pụrụ iche | Mechanical cooking programmer, Double-glazed door with tangential ventilation, Removable glass for cleaning, Includes grill rack, baking tray, deep tray. |
8. Akwụkwọ ikike na nkwado
Cata products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official Cata websaịtị. Debe ihe akaebe nke ịzụrụ maka akwụkwọ ikike.
For technical assistance, spare parts, or service inquiries, please contact your local authorized Cata service center. You can find contact information on the Cata websaịtị ma ọ bụ site na onye na-ere ahịa gị.
Onye nrụpụta: CATA
Ntụtụ aka nlereanya: 07035409
