1. Ngwaahịa gafereview
The SONICAKE Twiggy Blues is a compact multi-effect pedal designed for guitarists seeking essential blues and retro rock tones. It integrates four core effects: Compressor, Overdrive, Delay, and Reverb, along with a built-in cabinet simulator for direct connection options. This pedal offers a streamlined solution for various playing environments.

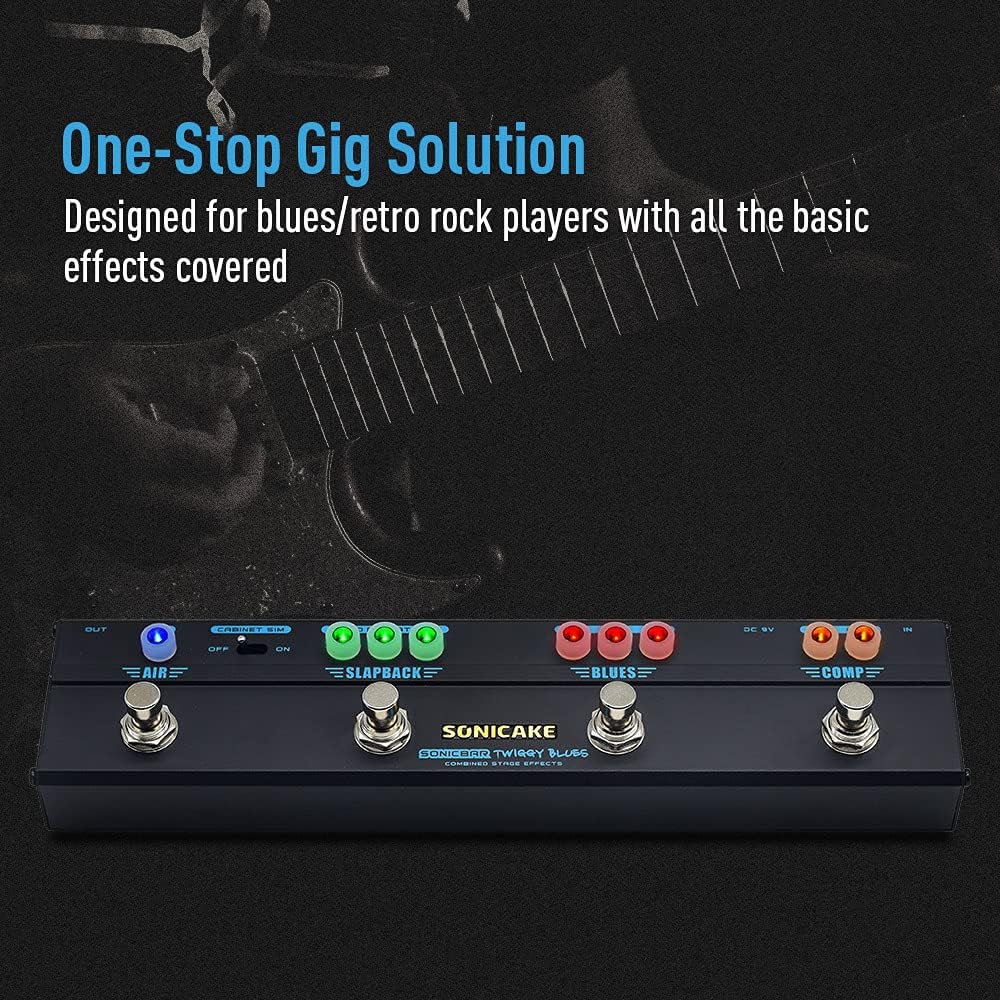

Image 1.1: The SONICAKE Twiggy Blues pedal, showcasing its compact design and integrated effects.
2. Nhazi
Follow these steps to set up your Twiggy Blues pedal:
- Njikọ ike: Connect a standard 9V DC power adapter (center negative) to the "DC 9V" input jack on the pedal. Ensure the power source provides stable and clean power to prevent noise.
- Ntinye Ngwaọrụ: Connect your guitar to the "IN" jack on the right side of the pedal using a standard 1/4-inch instrument cable.
- Njikọ mmepụta: Connect the "OUT" jack on the left side of the pedal to your amplifier's input or an audio interface/mixer using a standard 1/4-inch instrument cable.
- Simulation kabinet: If connecting directly to a PA system, mixer, or audio interface, ensure the "CABINET SIM" switch is set to "ON". If connecting to a guitar amplifier, set the switch to "OFF" to bypass the cabinet simulation.
Image 2.1: Proper connection of the Twiggy Blues pedal to a guitar and an ampna -emegharị ihe.
3. Ntuziaka ọrụ
The Twiggy Blues pedal features four footswitches, each activating a specific effect module. Each module has dedicated control knobs with LED indicators to show the active status.
Image 3.1: Labeled components of the Twiggy Blues pedal.
3.1. Njirimara akụrụngwa
- Ntinye DC 9V: Njikọ nkwụnye ọkụ.
- N'ime Jack: Ntinye guitar.
- Cabinet Simulation Switch: Toggles cabinet simulation ON/OFF.
- Jack pụọ: Mpụta na ampsistemu olu ma ọ bụ ọdịyo.
- COMP Footswitch & Knobs: Activates/deactivates Compressor effect. Knobs control Volume and Compression level.
- BLUES Footswitch & Knobs: Activates/deactivates Overdrive effect. Knobs control Volume, Tone, and Gain.
- SLAPBACK Footswitch & Knobs: Activates/deactivates Delay effect. Knobs control Blend, Repeat, and Time.
- AIR Footswitch & Knob: Activates/deactivates Reverb effect. Knob controls Mix level.
3.2. Effect Modules

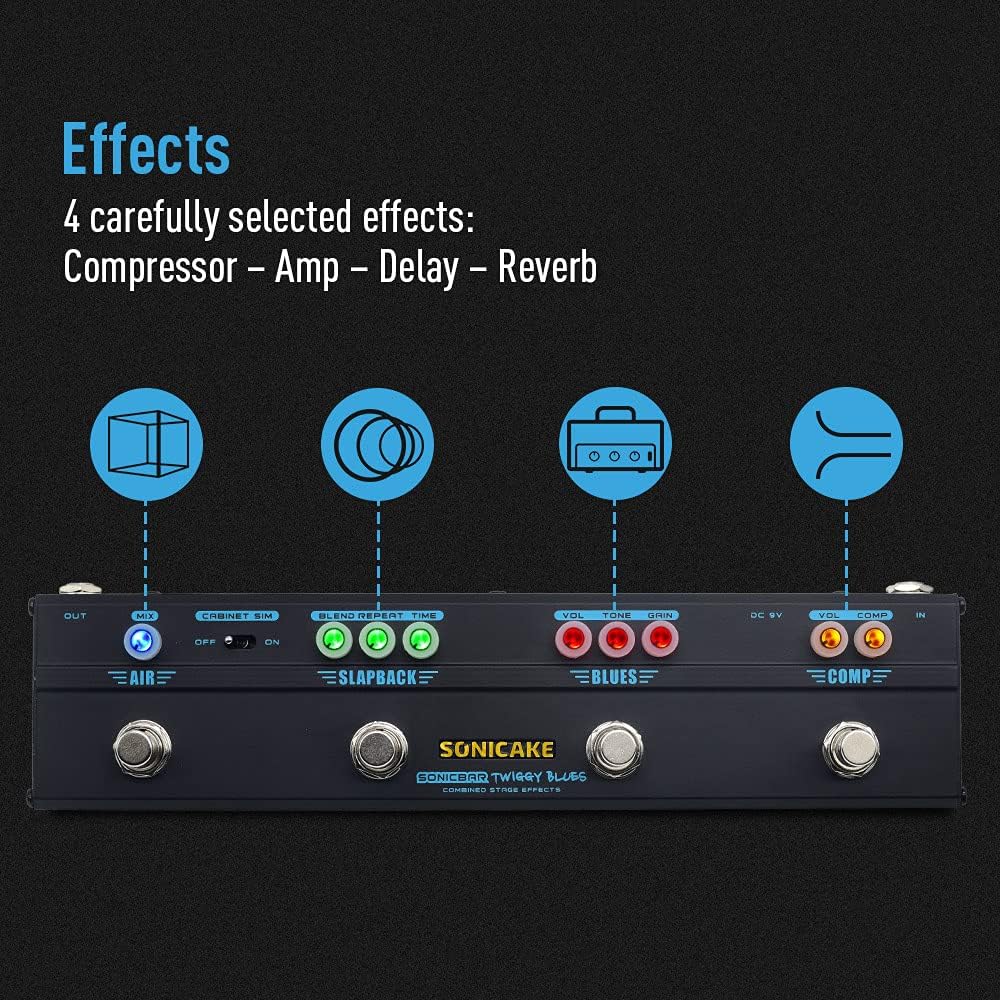

Foto 3.2: Ofeview of the four integrated effects.
3.2.1. Compressor (COMP)
The Compressor module provides a smooth and sustained tone. Use the footswitch to engage or bypass the effect.
- Mpịakọta: Adjusts the overall output volume of the compressor.
- COMP: Controls the amount of compression applied to the signal. Higher settings result in more sustain and a more even dynamic range.
3.2.2. Overdrive (BLUES)
The BLUES module simulates a vintage Dumble-style tube amplifier, offering a range of overdrive tones suitable for blues and classic rock. Engage with its dedicated footswitch.
- Mpịakọta: Sets the output volume of the overdrive effect.
- ỤDỤ: Adjusts the tonal character, from darker to brighter.
- Nweta: Controls the amount of distortion or saturation. Lower settings provide a subtle breakup, while higher settings yield more aggressive overdrive.
3.2.3. Delay (SLAPBACK)
The SLAPBACK module provides an analog-voiced delay effect, ideal for adding depth and rhythmic repeats. Activate using its footswitch.
- ỌCHỤRỤ: Controls the mix between the dry signal and the delayed signal.
- Tinyegharịa: Na-edozi ọnụ ọgụgụ nke igbu oge ikwugharị.
- OGE: Sets the delay time, from short slapback echoes to longer repeats (up to 500ms).
3.2.4. Reverb (AIR)
The AIR module offers a high-quality reverb effect to add spaciousness to your sound. Engage with its footswitch.
- Ngwakọta: Controls the amount of reverb mixed with the dry signal.
3.3. Cabinet Simulation
The built-in cabinet simulation allows for direct connection to a PA system, mixer, or audio interface, providing a guitar cabinet-like sound without needing an amplifier. Use the toggle switch to activate or deactivate this feature.
Image 3.3: The Cabinet Simulation switch for direct output.
3.4. LED egosi
Each effect module features LED indicators around its control knobs. These LEDs illuminate when the corresponding effect is active, providing clear visual feedback on the pedal's status during use.
Image 3.4: LED knobs indicating active effects.
4. Nlekọta
Proper maintenance ensures the longevity and optimal performance of your Twiggy Blues pedal.
- Nhicha: Use a soft, dry cloth to clean the pedal's surface. Avoid abrasive cleaners or solvents, which can damage the finish or internal components.
- Nchekwa: Store the pedal in a dry environment, away from extreme temperatures, humidity, and direct sunlight. When not in use for extended periods, disconnect the power adapter.
- Njikọ: Na-elele njikọ eriri niile mgbe niile maka mmebi na mmebi. Hụ na jakị ndị ahụ enweghị uzuzu na ihe mkpofu.
5. Nchọpụta nsogbu
If you encounter issues with your Twiggy Blues pedal, refer to the following common troubleshooting steps:
- Enweghị ụda:
- Ensure all cables (input, output, power) are securely connected.
- Verify the power adapter is functioning correctly and providing 9V DC (center negative).
- Check if your guitar and amplifier are working independently.
- Ensure the volume knobs on the pedal and your amplifier are not set to zero.
- Mkpọtụ/Ukwe A Na-achọghị:
- Use a high-quality, regulated 9V DC power supply specifically designed for guitar pedals.
- Hụ na e nwere ihe nchekwa waya niile ma dịkwa mma.
- Try isolating the pedal from other electronic devices that might cause interference.
- Mmetụta Na-adịghị Abara Uru:
- Press the footswitch firmly to ensure it engages. The LED indicator should light up.
- Check the knob settings for the specific effect; some effects may be subtle at low settings.
If problems persist, contact SONICAKE customer support for further assistance.
6. Nkọwapụta
| Njirimara | Nkọwapụta |
|---|---|
| Nọmba nlereanya | QCE-10-40 |
| Ibu Ibu | 0.48 Kilogram (1.06 pound) |
| Akụkụ ngwaahịa | 10.31"L x 1.73"W x 2.52"H (26.19 cm x 4.39 cm x 6.40 cm) |
| Akụrụngwa ahụ | Ọla |
| Isi Iyi Ike | Igwe ọkụ eletrik |
| Voltage | 9 volts DC |
| Ụdị mgbaàmà | Analọg |
| Ngwaọrụ Akụrụngwa | 3.5mm Audio (likely referring to internal components or specific connections, standard guitar jacks are 1/4 inch) |
| Ụdị njikọ | 3.5 mm audio (likely referring to internal components or specific connections, standard guitar jacks are 1/4 inch) |
7. Akwụkwọ ikike na nkwado
For warranty information, product registration, or technical support, please visit the official SONICAKE websaịtị ma ọ bụ kpọtụrụ ndị ahịa ha ozugbo. Debe nnata nzụta gị ka ihe akaebe nke ịzụrụ.
SONICAKE Official Websaịtị: Visit the SONICAKE Store on Amazon
