1. Ntuziaka nchekwa dị mkpa
Please read all instructions carefully before using this appliance and retain them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.
- Always ensure the appliance is placed on a stable, level surface to prevent tipping.
- Ejila ngwa, eriri, ma ọ bụ nkwụnye n'ime mmiri ma ọ bụ ihe mmiri ndị ọzọ.
- Unplug the appliance from the power outlet before cleaning, filling, or performing any maintenance.
- Debe ngwa ahụ ka ụmụaka na anụ ụlọ ghara iru.
- Ejila eriri ma ọ bụ plọg mebiri emebi rụọ ngwa ahụ, ma ọ bụ mgbe ngwa ahụ dara ma ọ bụ mebie ya n'ụzọ ọ bụla.
- Akwụsịla ntinye ikuku ma ọ bụ ọnụ ụzọ. Gbaa mbọ hụ na oghere zuru oke gburugburu nkeji maka ikuku ikuku kwesịrị ekwesị.
- Use only clean water in the water tank. Do not add any chemicals or additives other than the provided cooling gel.
- Do not touch the fan blades when the appliance is operating.
- Ngwa a bụ naanị maka ime ụlọ.
2. Ngwaahịa gafereview
The Lenoxx Air Fresh Air Cooler PCL701_127 is a versatile 4-in-1 appliance designed to enhance your indoor comfort. It functions as an air cooler, humidifier, fan, and air filter, providing a comprehensive solution for various environmental needs. It features three speed settings for customized airflow and a 5-liter water tank capacity for extended humidification.
2.1 Atụmatụ
- Ọrụ 4-na-1: Cools, Humidifies, Ventilates, and Filters air.
- Ntọala ọsọ ọsọ 3: Low, Medium, High for personalized comfort.
- 5-Liter Water Tank: Large capacity for continuous operation.
- Cooling Gel Included: Enhances cooling performance.
- Enwere ike ibugharị: Equipped with wheels for easy movement.
Ihe ngwugwu 2.2
Mgbe ị na-ewepụ ihe ndị a, hụ na ihe niile dị na ya dị:
- 1x Lenoxx Air Fresh Air Cooler PCL701_127
- 1x Cooling Gel Pack
- 1x Washable Foam Filter (pre-installed)
- 1x Washable Cloth Dust Bag (pre-installed)
- Akwụkwọ ntuziaka (akwụkwọ a)

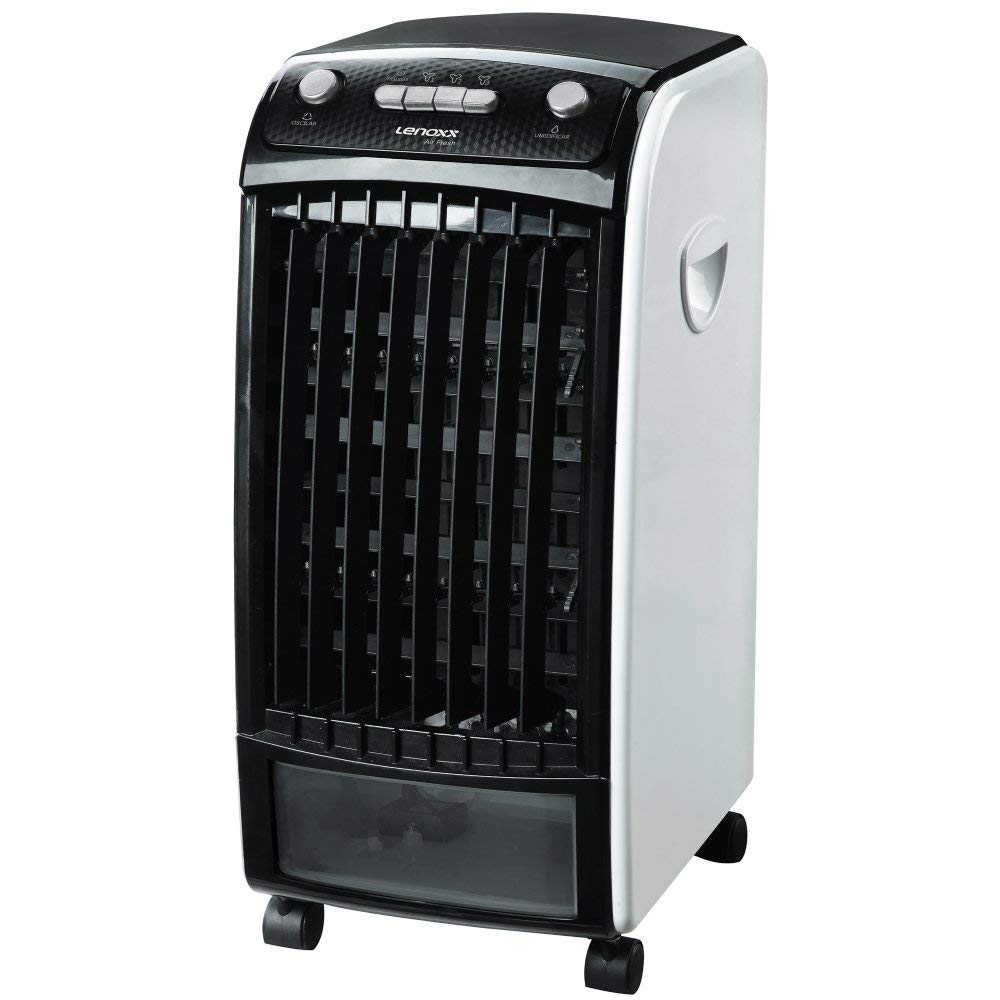

Foto 1: N'ihu view of the Lenoxx Air Fresh Air Cooler PCL701_127. This image shows the main unit with its control panel at the top, air vents, and the transparent water tank at the bottom. The unit is white with dark grey accents.
3. Ntọala na Mgbakọ
3.1 Nwepu
- Jiri nlezianya wepụ ihe mkpuchi ikuku n'ime ngwugwu ya.
- Wepu ihe niile nkwakọ ngwaahịa, gụnyere ihe nkiri ma ọ bụ teepu ọ bụla nchebe.
- Lelee ngwaọrụ ahụ maka ihe ọ bụla na-egosi mmebi. Ọ bụrụ na ọ mebiri emebi, arụla ọrụ ma kpọtụrụ ndị ọrụ nlekọta ndị ahịa.
3.2 Ntinye
Place the air cooler on a firm, level surface. Ensure there is at least 20 cm (8 inches) of clear space around the back and sides of the unit for proper air circulation.
3.3 Na-ejuputa tank mmiri
- Gbaa mbọ hụ na akpọpụla ngwa ahụ na oghere ọkụ.
- Locate the water tank access point, usually at the bottom or back of the unit.
- Carefully pull out or open the water tank.
- Fill the tank with clean, cool tap water. Do not exceed the "MAX" fill line (5-liter capacity).
- If using the cooling gel pack, place it directly into the water tank. Ensure it is fully submerged.
- Securely close or reinsert the water tank.
Mara: For optimal cooling, use cold water or add the frozen cooling gel pack to the water tank.
3.4 Njikọ ike
Plug the power cord into a standard 110 Volt AC electrical outlet. Ensure the outlet is properly grounded.
4. Ntuziaka ọrụ
The control panel is located on the top of the unit. Familiarize yourself with the buttons before operation.
4.1 Gbanyụọ ma ọ bụ gbanyụọ
- Pịa IKE button once to turn the unit on.
- Pịa IKE bọtịnụ ọzọ ka gbanyụọ unit.
4.2 Ntọala Ọsọ
Pịa Ọsọ button repeatedly to cycle through the three fan speeds: Low, Medium, and High. The indicator light will show the selected speed.
4.3 Mode Selection (Cooling/Humidifying)
To activate the cooling and humidifying function, ensure the water tank is filled. Press the COOL/HUMIDIFY button. The unit will begin to draw water from the tank to cool and humidify the air. Press again to deactivate this function, and the unit will operate as a fan only.
4.4 Oscillation
Pịa INGTỌ or CLỌ ỌR. button (button name may vary) to activate the automatic oscillation feature, which distributes air more widely. Press again to stop oscillation.
5. Nlekọta na nhicha
Ndozi mgbe niile na-eme ka arụmọrụ kacha mma ma na-agbatị ndụ nke ihe mkpuchi ikuku gị. Wepụ ihe mkpuchi ahụ mgbe niile tupu ị sachaa ya.
5.1 Ichacha tank mmiri
- Wepụ ihe mkpuchi ikuku ahụ.
- Wepu tank mmiri.
- Wụpụ mmiri ọ bụla fọdụrụ.
- Jiri ákwà dị nro na ihe nhicha dị nro hichaa tankị ahụ. Jiri mmiri dị ọcha sachaa ya nke ọma.
- Hapụ tankị ahụ ka ọ kpọọ nkụ kpamkpam tupu etinye ya ọzọ.
- Clean the water tank at least once a week, or more frequently if used continuously.
5.2 Na-ehicha ihe nzacha
The unit includes a washable foam filter and a washable cloth dust bag. These should be cleaned regularly to maintain air quality and efficiency.
- Wepụ ihe mkpuchi ikuku ahụ.
- Locate and carefully remove the foam filter and cloth dust bag, typically found at the back of the unit.
- Rinse both filters under running water until clean. For stubborn dirt, use a soft brush and mild soap.
- Allow both filters to air dry completely before reinserting them into the unit. Do not use the unit with wet filters.
- Clean filters every two weeks or as needed, depending on usage and air quality.
5.3 Nhicha mputa
Jiri nwayọ hichaa mpụta nke otu ahụ, damp akwa . Ejila ihe nchacha abrasive ma ọ bụ ihe mgbaze.
6. Nchọpụta nsogbu
Tupu ịkpọtụrụ nkwado ndị ahịa, biko rụtụ aka na ntuziaka nchọpụta nsogbu ndị a maka okwu nkịtị.
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Unit anaghị agbanwuo. | Enweghị ọkụ. Apịghị bọtịnụ ike. | Check if the power cord is securely plugged into a 110V outlet. Press the POWER button firmly. |
| Enweghị mmetụta jụrụ oyi. | Tankị mmiri tọgbọ chakoo. Cooling/Humidify function not activated. Cooling gel not used or not frozen. | Jupụta mmiri mmiri na mmiri oyi. Press the COOL/HUMIDIFY button. Ensure cooling gel is frozen and placed in the water tank. |
| Ikuku ikuku adịghị ike. | Ihe nzacha ikuku ruru unyi. Akpọchiela ụzọ mbata/ụzọ ikuku. | Clean the foam filter and cloth dust bag. Ensure there is clear space around the unit. |
| Mgbapu mmiri. | A naghị etinye tank mmiri nke ọma. Mmiri mmiri juru eju. Unit is tilted. | Ensure the water tank is securely closed and inserted. Do not fill past the "MAX" line. Tinye unit ahụ n'elu larịị. |
| Mkpọtụ na -adịghị ahụkebe. | Unit abụghị n'elu larịị. Obstruction in fan. | Debe unit ahụ n'elu elu kwụsiri ike. Unplug and check for any foreign objects near the fan blades. |
7. Nkọwapụta
| Njirimara | Nkọwa |
|---|---|
| Nọmba nlereanya | PCL701_127 |
| Ụdị | Onyeka Onwenu |
| Agba | Ọcha |
| Ihe onwunwe | Plastic |
| Akụkụ ngwaahịa (L x W x H) | 29.5 x 25.5 x 54.5 cm (11.6 x 10.0 x 21.5 inch) |
| Ibu ngwaahịa | 4.64 n'arọ (10.23 lbs) |
| Ike tank mmiri | 5 lita |
| Voltage | 110 volts |
| Energy Efficiency Label (ENCE) | A |
| Asambodo | BRA HO 15/04108 |
8. Akwụkwọ ikike na nkwado
8.1 Ozi akwụkwọ ikike
This Lenoxx Air Fresh Air Cooler PCL701_127 comes with a Akwụkwọ ikike nke ọnwa 12 provided by the supplier. This warranty covers manufacturing defects and material faults under normal use conditions from the date of purchase. Please retain your proof of purchase for warranty claims.
The warranty does not cover damage caused by misuse, neglect, unauthorized repairs, accidents, or normal wear and tear.
8.2 Nkwado ndị ahịa
For technical assistance, warranty claims, or any questions regarding your Lenoxx Air Fresh Air Cooler, please contact your retailer or the official Lenoxx customer support channel. Refer to the contact information provided with your purchase documentation or visit the official Lenoxx websaịtị maka nkọwa nkwado.
