VOLTCRAFT VC40 Socket Tester

Okwu mmalite

The VOLTCRAFT VC40 is a compact and reliable socket tester designed to quickly verify the correct wiring of electrical sockets and test Residual Current Devices (RCDs) with a 30 mA trip current. This device provides visual and audible indications for various wiring conditions, ensuring electrical safety in your installations. It is rated for CAT II 300 V applications.

Ozi nchekwa

Please read and understand all safety instructions before using this device.

• Always ensure the device is in good condition before use. Do not use if damaged.
• This device is designed for CAT II 300 V applications. Do not exceed the specified voltage ọkwa.
• The VC40 is intended for testing standard electrical sockets. Do not use it for purposes other than those specified in this manual.
• Important Note: THIS UNIT WILL NOT DETECT EARTH NEUTRAL REVERSE. Always exercise caution and consult a qualified electrician if you have any doubts about your electrical installation.
• The RCD test function should only be performed by competent individuals, as it will trip the RCD, cutting power to the circuit.

Ngwaahịa gafereview

The VOLTCRAFT VC40 features an automatic testing process, finger contacts for protective conductor and RCD tests, and provides clear visual and audible signals for test results.

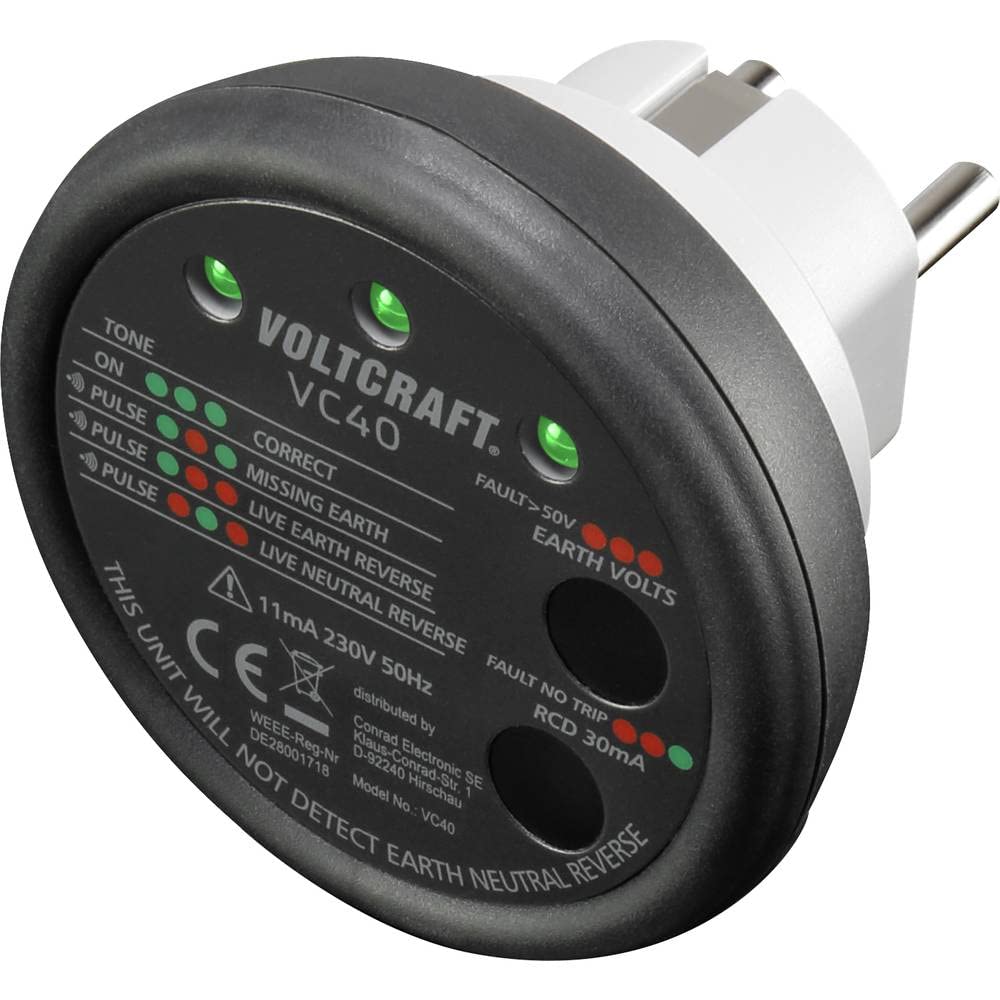

Foto: Angle view of the VOLTCRAFT VC40 Socket Tester, showing its compact design and plug. This image illustrates the overall appearance of the device.

Foto: N'ihu view of the VOLTCRAFT VC40 Socket Tester, clearly displaying the LED indicators and their corresponding wiring conditions and test functions. This is essential for interpreting test results.

Foto: N'azụ view of the VOLTCRAFT VC40 Socket Tester, showing the plug pins and the speaker grille for audible signals.

Melite

The VOLTCRAFT VC40 is designed for immediate use. No assembly or battery installation is required as it draws power directly from the socket being tested.

1. Ensure the socket tester is clean and free from any damage.
2. Verify that the electrical circuit you intend to test is live and within the device's specified voltage range (230V 50Hz).

Ntuziaka ọrụ

1. Wiring Check

To check the wiring of a socket:

1. Plug the VOLTCRAFT VC40 directly into the socket you wish to test.
2. The device will automatically perform a wiring check. Observe the LED indicators and listen for the audible signal.
3. Refer to the 'Interpreting Indicators' section below to understand the test result.

2. RCD (Residual Current Device) Test

To test an RCD (30 mA trip current):

1. First, perform a wiring check as described above to ensure the socket is correctly wired.
2. With the VC40 plugged into the socket, place your fingers on the two metal contact points labeled for RCD test. This initiates the RCD trip test.
3. The RCD should trip, cutting power to the circuit. The VC40's indicators should go off.
4. If the RCD does not trip, refer to the 'Troubleshooting' section.
5. Reset the RCD at your consumer unit/fuse box after the test.

3. Interpreting Indicators

The VC40 uses a combination of green and red LEDs, along with an audible tone, to indicate the wiring status. The labels on the device correspond to the conditions detected.

Note: The exact LED patterns for each fault are indicated on the device itself. Always refer to the labels on the VC40 for precise interpretation.

Nlekọta

The VOLTCRAFT VC40 requires minimal maintenance.

• Nhicha: Wipe the device with a dry, soft cloth. Do not use abrasive cleaners or solvents. Ensure no moisture enters the device.
• Nchekwa: Chekwaa ngwaọrụ ahụ n'ebe dị jụụ, kpọrọ nkụ, pụọ na ìhè anyanwụ kpọmkwem na oke okpomọkụ.
• Nyocha: Periodically inspect the device for any signs of damage, such as cracks in the casing or bent pins. Do not use a damaged device.

Nchọpụta nsogbu

If you encounter issues with your VOLTCRAFT VC40, refer to the following common problems and solutions:

• No Indication / Device Not Working:
  • Ensure the socket is live and supplying power. Test with another known working appliance.
  • Check for visible damage to the VC40. If damaged, discontinue use.
• RCD Does Not Trip During Test:
  • Ensure you are firmly pressing the RCD test contacts.
  • If the RCD still does not trip, it indicates a potential fault with the RCD itself or the electrical installation. This is a serious safety concern. Do not use the circuit and consult a qualified electrician immediately.
• Incorrect Wiring Indication:
  • If the VC40 indicates a wiring fault (e.g., Missing Earth, Live Neutral Reverse), do not use the socket.
  • Contact a qualified electrician to inspect and correct the wiring.
  • Remember, the device will not detect Earth Neutral Reverse.

Nkọwapụta

Akwụkwọ ikike na nkwado

VOLTCRAFT products are built to high standards. This product typically comes with a manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and duration. Spare parts availability is generally 1 year from the date of purchase.

For technical support, troubleshooting assistance, or warranty claims, please contact VOLTCRAFT customer service or your retailer. Keep your purchase receipt as proof of purchase.
