Samsung WF45M5500AP 4.5 Cu. Ft. Front Load Steam Washer User Manual

1. Okwu mmalite

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Samsung WF45M5500AP 4.5 Cu. Ft. Front Load Steam Washer. Please read this manual thoroughly before using the appliance and retain it for future reference.

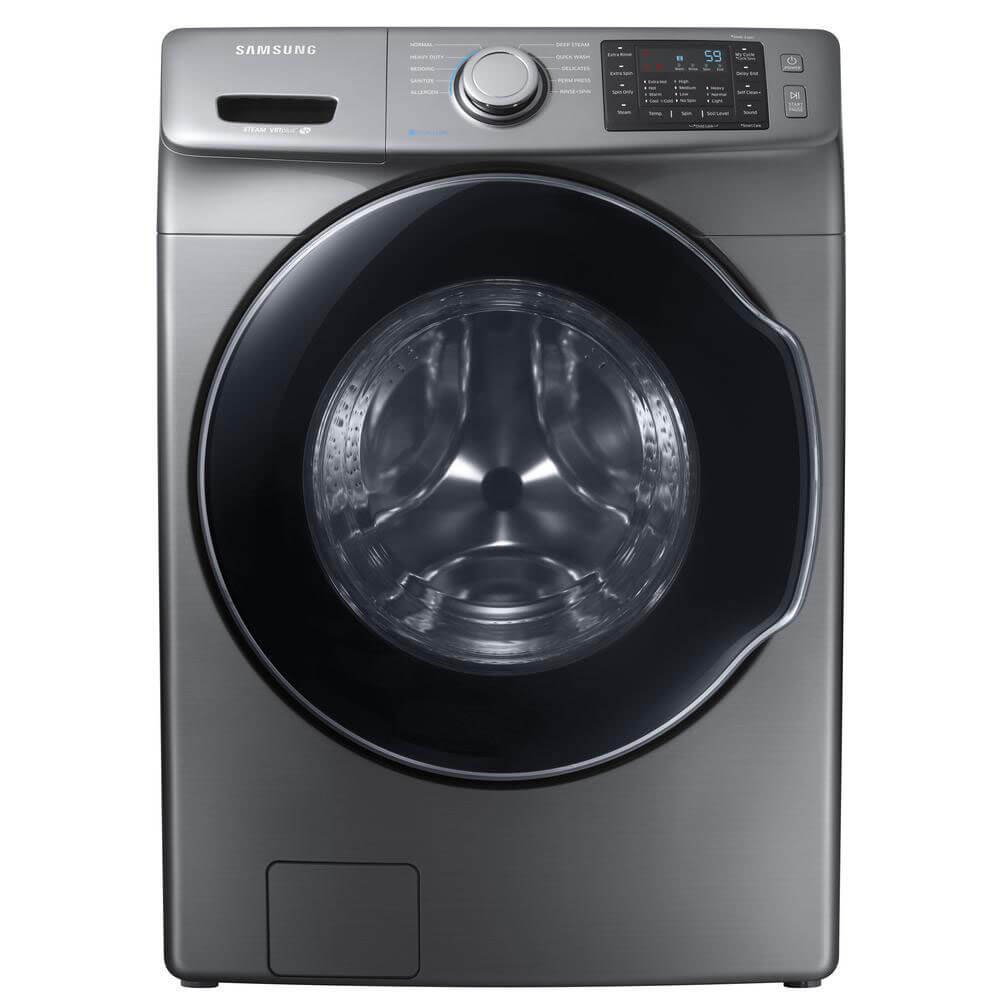

Foto 1: N'ihu view of the Samsung WF45M5500AP Front Load Steam Washer. This image displays the overall design, including the large front-loading door, the control panel at the top, and the detergent dispenser drawer.

2. Ozi nchekwa

Iji belata ihe ize ndụ nke ọkụ, ujo eletrik, ma ọ bụ mmerụ ahụ mgbe ị na-eji ngwa gị, soro usoro nlezianya ndị a:

• Gụọ ntuziaka niile tupu i jiri ngwa.
• Asachala ma ọ bụ kụọ ihe ndị ehichapụrụ na mbụ, saa ya, tinye ya, ma ọ bụ hụ ya na mmanụ ụgbọala, ihe ndị na-ekpocha nkụ, ma ọ bụ ihe ndị ọzọ na-ere ọkụ ma ọ bụ ihe mgbawa ka ha na-ekupụ vapors nke nwere ike ịgbanye ma ọ bụ gbawara.
• Ekwela ka ụmụaka na-egwu egwu ma ọ bụ n'ime ngwa. Nleba anya dị nso nke ụmụaka dị mkpa mgbe a na-eji ngwa ngwa na nso ụmụaka.
• Abanyela n'ime ngwa ma ọ bụrụ na tub ma ọ bụ mkpali na-akpụ akpụ.
• Awụnyela ma ọ bụ chekwaa ngwa a ebe ọ ga-ekpughere ihu igwe ma ọ bụ okpomoku oyi.
• Emela tamper na njikwa.
• Emezighachila ma ọ bụ dochie akụkụ ọ bụla nke ngwa ma ọ bụ nwaa ọrụ ọ bụla ma ọ bụrụ na akwadoro ya na ntuziaka nlekọta onye ọrụ ma ọ bụ na ntuziaka mmezi onye ọrụ nke ị ghọtara ma nwee nkà iji rụọ ya.
• Kwụpụ ngwa ngwa na ọkụ ọkụ tupu ị nwaa ọrụ ọ bụla.

3. Ntọala na nwụnye

Proper installation is crucial for the performance and longevity of your washer. Ensure all steps are followed carefully.

3.1 Nwepu

Remove all packaging materials, including the shipping bolts located at the rear of the washer. Keep the shipping bolts for future transport if needed.

3.2 Leveling the Washer

Use a level to ensure the washer is perfectly level. Adjust the leveling feet at the bottom corners of the washer as necessary. A level washer prevents excessive vibration and noise during operation.

3.3 Njikọ mmiri na-enye mmiri

Connect the hot and cold water inlet hoses to the corresponding hot and cold water valves on the wall and to the back of the washer. Ensure connections are tight to prevent leaks. Use new hoses to prevent water leakage.

3.4 Nwụnye mmiri mmiri

Securely attach the drain hose to the drain outlet at the back of the washer. Place the other end of the drain hose into a standpipe or laundry tub. Ensure the drain hose is properly secured to prevent it from dislodging during the drain cycle.

3.5 Njikọ ike

Plug the washer's power cord into a grounded 120V, 60Hz, 15 Amp electrical outlet. Do not use an extension cord.

4. Ntuziaka ọrụ

Familiarize yourself with the control panel and various wash cycles to optimize your laundry experience.

Ọgụgụ 2: nso nso view of the Samsung WF45M5500AP control panel. This image highlights the cycle selector dial, digital display, and various option buttons for temperature, spin, soil level, and special features.

4.1 Ogwe njikwa gafereview

The control panel consists of a cycle selector dial, a digital display, and various buttons for customizing wash settings.

• Cycle Selector Dial: Turn to select desired wash cycle.
• Ngosipụta Digital: Shows remaining time, cycle status, and error codes.
• Ihu: Adjusts wash water temperature (Extra Hot, Hot, Warm, Cold, Tap Cold).
• Ntugharị: Adjusts spin speed (Extra High, High, Medium, Low, No Spin).
• Ala: Adjusts soil level (Heavy, Normal, Light).
• Nhọrọ: Includes Extra Rinse, Extra Spin, Delay End, Self Clean, Sound.
• Ike: Turns the washer on/off.
• Malite/kwụsịtụ: Starts or pauses the selected wash cycle.

4.2 Na-ebu akwa akwa

Open the washer door and load items loosely into the drum. Do not overload the washer, as this can affect washing performance and cause excessive vibration. Close the door firmly.

4.3 Na-agbakwunye ncha na ihe mgbakwunye

Pull out the dispenser drawer. Add liquid or powder detergent to the main wash compartment. Add fabric softener to the softener compartment and bleach to the bleach compartment, if applicable. Do not overfill.

4.4 Ịhọrọ usoro ịsa ahụ

Tụgharịa Cycle Selector Dial to choose the appropriate cycle for your laundry type. Available cycles include:

• ỌKWU: For everyday items like cottons, linens, and mixed loads.
• ỌRỤ dị arọ: For sturdy fabrics, work clothes, and heavily soiled items.
• ALA: For bulky items like blankets, comforters, and sheets.
• SANITIZA: Uses high temperature to sanitize heavily soiled, colorfast items.
• Allergen: Na-enyere aka iwepụ ihe ndị na-akpata allergies na ákwà.
• DEEP STEAM: Provides a deep clean with steam for tough stains.
• Ịsa ngwa ngwa: Maka ihe ndị ruru unyi nke na-adịghị mma nke chọrọ ịsacha ngwa ngwa.
• NA-atọ ụtọ: Maka ihe ndị dị nro nke chọrọ ịsa ahụ dị nro.
• PERMA PRESS: For permanent press and synthetic fabrics.
• RINSE+SPIN: Maka ịsacha na ịtụgharị ihe na-enweghị usoro ịsacha zuru oke.

4.5 Nhazi Ntọala

After selecting a cycle, you can adjust the Okpomọkụ, Ntugharị, na Ala levels using the corresponding buttons. Press the Nhọrọ button to select additional features like Mgbakwunye itucha or Igbu oge Ọgwụgwụ.

4.6 Ịmalite Okpokoro ahụ

Pịa Malite/kwụsịtụ button to begin the wash cycle. The display will show the estimated remaining time.

5. Nlekọta

Ndozi mgbe niile na-enyere aka hụ na arụmọrụ kachasị mma ma na-agbatị ndụ nke igwe ịsa ákwà gị.

5.1 Cleaning the Dispenser Drawer

Periodically remove and clean the detergent dispenser drawer to prevent residue buildup. Rinse with warm water and a soft brush, then reinsert.

5.2 Cleaning the Drum (Self Clean Cycle)

Jiri ihe Ọdịmma onwe cycle regularly (approximately once a month) to remove detergent residue and bacteria from the washer drum. Do not add laundry or detergent during this cycle.

5.3 Na-ehicha Mpụga

Wipe the exterior surfaces of the washer with a soft, damp akwa . Zere ndị na-ehicha ihe na-ekpo ọkụ.

5.4 Na-ehicha ihe nzacha mgbapụta mmiri

The drain pump filter should be cleaned periodically to prevent clogs and ensure proper drainage. Refer to the detailed instructions in the full product manual for accessing and cleaning this filter.

5.5 Oge oyi

If the washer is to be stored in an area subject to freezing temperatures, follow the winterizing procedure in the full product manual to drain all water from the appliance and prevent damage.

6. Nchọpụta nsogbu

Tupu ịkpọtụrụ ọrụ, review nsogbu ndị a na-ahụkarị na ngwọta ha.

7. Nkọwapụta

• Ụdị: WF45M5500AP
• Ike: 4.5 Cu. Dị
• Ebe nnweta: Ibu n'ihu
• Ịnye ọkụ: 120V / 60Hz (Refer to product label for specific ampiwe)
• Akụkụ (WxHxD): Refer to the full product manual or product label for exact measurements.
• Arọ: Refer to the full product manual or product label.

8. Akwụkwọ ikike na nkwado

Your Samsung WF45M5500AP washer is covered by a limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage duration and limitations. Typically, major appliances come with a 1-year limited warranty on parts and labor.

For technical assistance, service requests, or to purchase replacement parts, please contact Samsung Customer Service:

• Websaịtị: www.samsung.com/us/support/
• Ekwentị: Rụtụ aka na nkwado Samsung websaịtị maka ọnụọgụ kọntaktị kachasị ugbu a.

When contacting support, please have your model number (WF45M5500AP) and serial number ready.
