Extol Craft 417310 Solar Car Battery Charger Instruction Manual

1. Okwu mmalite

This manual provides instructions for the safe and effective use of your Extol Craft 417310 Solar Car Battery Charger. This device is designed for trickle charging 12V lead-acid batteries in various vehicles, including cars, commercial vehicles, campers, and boats. It helps prevent battery self-discharge during extended periods of inactivity, ensuring your vehicle remains ready to start.

2. Ntuziaka nchekwa

• Gụọ ntuziaka niile nke ọma tupu i jiri chaja ahụ.
• Do not expose the solar panel to extreme temperatures, direct impact, or corrosive substances.
• Ensure proper ventilation when charging batteries to prevent gas buildup.
• Debe chaja ka ụmụaka na anụ ụlọ ghara iru.
• Do not attempt to open, disassemble, or modify the charger. This will void the warranty and may cause damage or injury.
• Use this charger only with 12V lead-acid batteries. Do not use with other battery types.
• Zenarị mbịkọta ọnụ ọnụ mmepụta.
• Disconnect the charger from the vehicle's cigarette lighter socket before performing any maintenance on the vehicle.

3. Ngwaahịa gafereview

The Extol Craft 417310 Solar Car Battery Charger is a compact unit designed for convenient battery maintenance. It features a solar panel for energy collection and a connection cable with a 12V cigarette lighter plug for easy vehicle integration. An LED indicator provides visual feedback on the charging status.

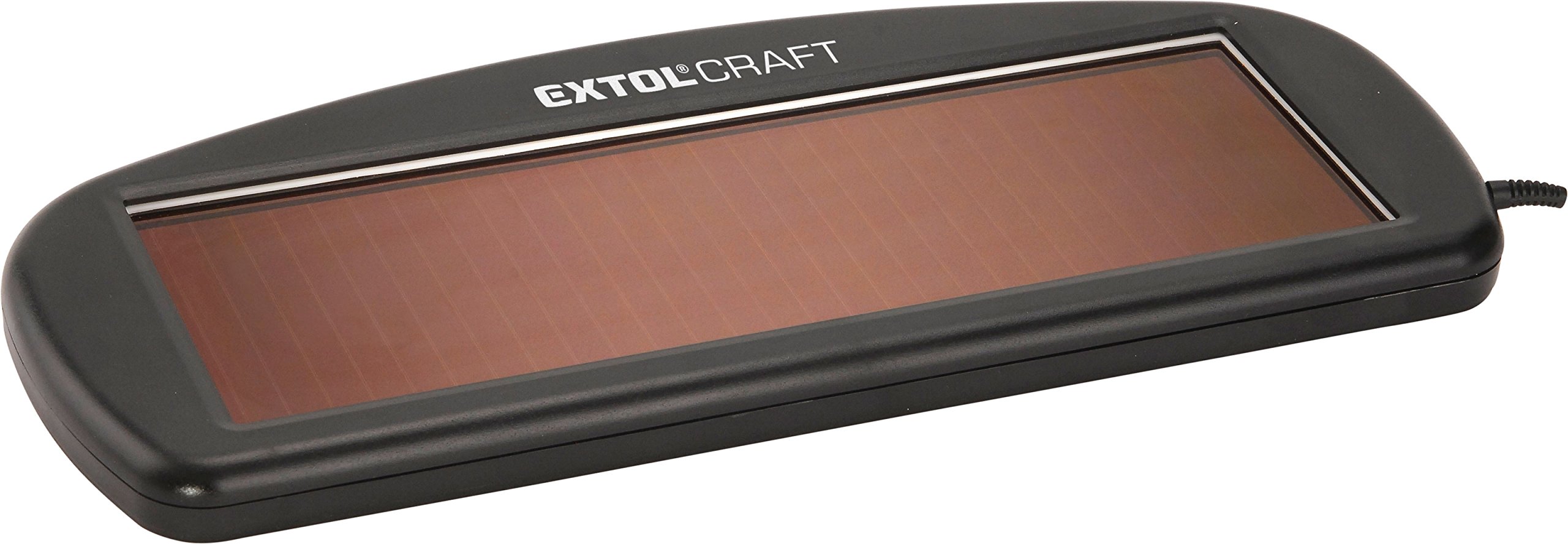

This image displays the Extol Craft 417310 Solar Car Battery Charger. It is a rectangular, dark-colored unit with a large solar panel surface. The brand name 'EXTOL CRAFT' is visible at the top center of the unit. A cable extends from the right side, indicating the connection point.

4. Nkọwapụta

5. Nhazi

1. Ensure your vehicle's engine is off and the ignition is in the 'OFF' position.
2. Locate a suitable position for the solar panel where it can receive maximum direct sunlight. This could be on the dashboard, attached to a window using suction cups (if provided), or placed on the vehicle's exterior. Ensure it is securely positioned to prevent movement.
3. Connect the charger's plug into the vehicle's 12V cigarette lighter socket.
4. Verify that the LED indicator on the charger illuminates. This indicates that the charger is receiving power from the solar panel and is attempting to supply power to the battery.

6. Ntuziaka ọrụ

The Extol Craft 417310 is designed for continuous, long-term connection to prevent battery self-discharge. It provides a trickle charge, meaning it supplies a low current to maintain the battery's charge level without overcharging. This is ideal for vehicles stored for extended periods.

• Once connected and exposed to sufficient sunlight, the charger will automatically begin to supply power to the battery.
• The LED indicator provides a visual confirmation of the charging status. If the LED is off, check for sufficient sunlight or connection issues.
• For optimal performance, ensure the solar panel is clean and free from obstructions (e.g., leaves, snow, dirt) that could block sunlight.
• The charger is not intended for rapidly charging a deeply discharged battery but rather for maintaining a healthy battery's charge over time.

7. Nlekọta

• Nhicha: Jiri nwayọ na-ehicha elu elu anyanwụ mgbe niile, damp cloth to ensure maximum light absorption. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the panel.
• Nyocha: Periodically inspect the connection cable and the 12V plug for any signs of wear, cuts, or damage. If any damage is observed, discontinue use immediately and replace the unit.
• Nchekwa: When not in use for extended periods, store the charger in a dry, cool place, away from direct sunlight and extreme temperatures.

8. Nchọpụta nsogbu

• Nsogbu: Chaja LED anaghị agba ọkụ.
  Ihe kpatara 1 nwere ike ime: Ìhè anyanwụ ezughi oke.
  Ngwọta: Move the solar panel to a location with direct, strong sunlight. Overcast conditions or indoor placement will significantly reduce output.
  Ihe kpatara 2 nwere ike ime: Vehicle's 12V socket is not powered when the engine is off.
  Ngwọta: Some vehicles' cigarette lighter sockets are only active when the ignition is on. Check your vehicle's manual. If this is the case, the charger will only work when the ignition is on, which defeats the purpose of trickle charging a parked vehicle. Consider alternative connection methods if available for your vehicle (e.g., direct battery connection with an appropriate adapter, if compatible and safe).
  Ihe kpatara 3 nwere ike ime: Faulty connection or damaged cable.
  Ngwọta: Ensure the plug is fully inserted into the socket. Inspect the cable for any visible damage. If damaged, the unit must be replaced.
• Nsogbu: Battery still drains despite using the charger.
  Ihe kpatara 1 nwere ike ime: Excessive parasitic drain from vehicle systems.
  Ngwọta: The 1.5W solar charger is designed for trickle charging to compensate for natural battery self-discharge. If there is a significant electrical drain from vehicle systems (e.g., alarm, GPS tracker, aftermarket electronics), the charger's output may not be sufficient to counteract it. Consult a mechanic to identify and resolve parasitic drains.
  Ihe kpatara 2 nwere ike ime: Severely discharged or faulty battery.
  Ngwọta: This solar charger is not intended for charging a completely flat battery. It maintains an already charged battery. If your battery is severely discharged or old, it may need a full charge from a conventional charger or replacement. Have your battery tested by a professional.

9. Akwụkwọ ikike na nkwado

For warranty information, technical support, or service inquiries, please refer to the documentation provided with your purchase or contact Extol customer service directly. Specific warranty terms and contact details can typically be found on the manufacturer's website or in your sales receipt.
