1. Okwu mmalite
The Diversitech T2404 is a 40VA control transformer designed to provide reliable power for low-voltage control circuits. It features multiple primary voltage taps (120V, 208V, 240V AC) and a single 24V AC secondary output, making it suitable for various applications, commonly found in HVAC systems. This manual outlines the proper procedures for installation, operation, and maintenance to ensure safe and efficient performance of the unit.

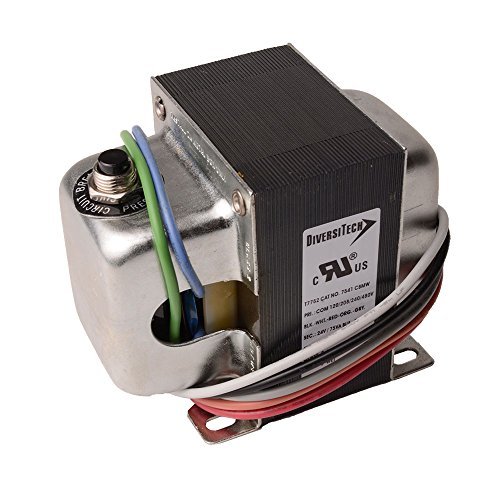

Image of the Diversitech T2404 control transformer, showing its compact design and terminal connections.
2. Ozi nchekwa
Read and understand all instructions before installing or operating this transformer. Failure to follow these instructions may result in electric shock, fire, or property damage.
- Kwụpụ ike: Always disconnect power at the main service panel before installing, servicing, or removing the transformer.
- Ndị ọrụ tozuru oke: Installation and servicing should only be performed by qualified, licensed electricians or HVAC technicians.
- Koodu mpaghara: All wiring must comply with national and local electrical codes.
- Ndabere nke ọma: Ensure the transformer is properly grounded according to local electrical codes.
- Voltage nkwenye: Verify input and output voltages with a multimeter before connecting any loads.
- Nchekwa ibu ibu: Do not exceed the transformer's 40VA rating. Overloading can cause overheating and damage.
3. Nka na ụzụ nkọwa
| Nkọwapụta | Uru |
|---|---|
| Nlereanya | T2404 |
| Ọnụ ego VA | 40VA |
| Primary Voltage | 120V AC / 208V AC / 240V AC |
| Secondary Voltage | 24V AC |
| Ugboro ugboro | 50/60 Hz |
| Onye nrụpụta | Diversitech |
| ASIN | B01N44GFF7 |
4. Ntuziaka nwụnye
Follow these steps for proper installation. Always ensure power is disconnected before beginning any work.
- Ịkwụsị ike: Turn off the main power supply to the circuit where the transformer will be installed. Verify with a voltagonye nnwale na ike agbanyụrụ.
- Ịkwanye: Mount the transformer securely in a suitable enclosure or location, ensuring adequate ventilation and protection from moisture and physical damage.
- Wiring nke mbụ: Connect the appropriate primary voltage wires (120V, 208V, or 240V AC) to the designated primary terminals on the transformer. Refer to the transformer's labeling for specific terminal identification. Ensure connections are tight and secure.
- Wiring nke abụọ: Jikọọ obere-voltage control circuit wires to the 24V AC secondary terminals.
- Nda ala: Connect the transformer's ground terminal to a proper earth ground according to local electrical codes.
- Nyocha: Double-check all wiring connections for correctness and tightness. Ensure no bare wires are exposed.
- Weghachi ike: Once all connections are verified and secure, restore power to the circuit.
Mara: Ọ bụrụ na obi adịghị gị mma maka akụkụ ọ bụla nke usoro nrụnye ahụ, gakwuru ọkachamara ọkụ eletrik ma ọ bụ ọkachamara HVAC ruru eru.
5. Ọrụ
The Diversitech T2404 transformer operates by converting a higher primary voltage (120V, 208V, or 240V AC) to a lower, constant 24V AC secondary voltage. Once properly installed and powered, it will continuously supply 24V AC to the connected low-voltage control circuit, provided the total load does not exceed its 40VA rating. The transformer is designed for continuous duty within its specified parameters.
6. Nlekọta
The T2404 transformer is designed for reliable, long-term operation with minimal maintenance. However, periodic checks can help ensure optimal performance and longevity.
- Nlele anya: Periodically inspect the transformer for any signs of physical damage, corrosion, or loose connections.
- Ịdị ọcha: Keep the transformer free from dust, dirt, and debris, which can impede heat dissipation.
- Igwe ikuku: Ensure that the installation area maintains adequate ventilation to prevent overheating.
- Lelee njikọ: Occasionally check terminal connections to ensure they remain tight and secure.
7. Nchọpụta nsogbu
If the transformer is not functioning as expected, refer to the following troubleshooting guide:
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| No 24V AC output |
|
|
| Low 24V AC output |
|
|
| Transformer ekpo oke ọkụ |
|
|
If troubleshooting steps do not resolve the issue, contact a qualified technician.
8. Akwụkwọ ikike na nkwado
For specific warranty information regarding the Diversitech T2404 transformer, please refer to the official Diversitech website or contact their customer support directly. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.
For technical assistance, product inquiries, or to locate authorized service providers, please visit the Diversitech Store on Amazon ma ọ bụ onye ọrụ nke onye nrụpụta ahụ websaịtị.
