TechniSat TECHNIPLAYER LP 300 Professional DJ USB Turntable

Okwu mmalite

The TechniSat TechniPlayer LP 300 is a professional DJ USB turntable designed for high-quality vinyl playback and digital conversion. This direct-drive turntable features a quartz-controlled motor, allowing for stable rotation and precise speed control. It includes advanced features such as needle illumination, adjustable tracking force, a balanced S-shaped tonearm, and an anti-skating function, catering to both professional DJs and home audio enthusiasts. Additionally, the integrated USB port enables easy digitization of your vinyl collection into MP3 files, with accompanying software provided. A switchable phono preamplifier ensures versatile connectivity to various audio systems, including phono or AUX-IN inputs.

Foto 1: The TechniSat TECHNIPLAYER LP 300 turntable with its dust cover open, showcasing the platter, tonearm, and controls.

Ntuziaka nhazi

1. Mwepu na nlele akụrụngwa

Jiri nlezianya wepụ ihe niile dị na nkwakọ ngwaahịa. Gbaa mbọ hụ na ihe ndị a dị:

• TECHNIPLAYER LP 300 Turntable Unit
• System holder with needle (cartridge)
• Aluminom efere
• Felt platter mat
• Palet (record weight/stabilizer)
• Ibu ibu
• eriri USB
• CD software
• Akwụkwọ ntuziaka onye ọrụ

2. Ntinye

Place the turntable on a stable, level surface away from direct sunlight, heat sources, and strong vibrations. Ensure adequate ventilation around the unit.

3. Mgbakọ

1. Install the Platter: Carefully place the aluminum platter onto the center spindle of the turntable.
2. Place the Felt Mat: Lay the felt platter mat on top of the aluminum platter.
3. Attach the Cartridge: Mount the system holder with the needle (cartridge) to the tonearm headshell. Ensure it is securely fastened.
4. Install the Counterweight: Slide the counterweight onto the rear of the tonearm. Adjust it later for proper tracking force.
5. Place the Palet: The palet can be placed on the record during playback for added stability.

Foto 2: Zuru ezu view of the tonearm and cartridge assembly, crucial for proper record playback.

4. Ijikọ na ihe Audio Sistemu

The TechniPlayer LP 300 offers both phono and AUX-IN connectivity via its switchable preampna -emegharị ihe.

• RCA Audio Output (L/R): Connect the RCA cables from the turntable's audio output to your amplifier's PHONO input (if available) or AUX-IN input. Use the PHONO/LINE switch on the rear of the turntable to select the appropriate output level.
  • Tọọ na FONO if connecting to an amplifier with a dedicated PHONO input.
  • Tọọ na LINE if connecting to an amplifier's AUX-IN or other line-level input.
• Njikọ USB: Connect the USB cable from the turntable to your computer for digitizing records.

Foto 3: The rear panel of the turntable, illustrating the RCA audio outputs and the USB port for connecting to an amplifier or computer.

5. Njikọ ike

Connect the power cable to the turntable and then to a suitable wall outlet.

Ntuziaka ọrụ

1. Ịgbanye / gbanyụọ

To power on the turntable, rotate the Malite/Kwụsị knob clockwise. The platter will begin to rotate. To power off, rotate the knob counter-clockwise until it clicks.

Foto 4: The start/stop control and speed selection buttons (33/45 RPM) located on the turntable's top panel.

2. Ịkpọ ndekọ

1. Place the Record: Place your vinyl record on the platter. If desired, use the palet for added stability.
2. Họrọ Ọsọ: Pịa 33 or 45 button to select the appropriate playback speed for your record.
3. Adjust Tracking Force: Refer to your cartridge's specifications for the recommended tracking force. Adjust the counterweight by rotating it until the tonearm is balanced and then set the desired tracking force using the numbered ring.
4. Ntọala Mgbochi Ịgba Skate: Adjust the anti-skating dial to match the tracking force setting. This prevents the tonearm from drifting inwards or outwards.
5. Lower the Tonearm: Use the cueing lever to gently lower the tonearm onto the record's lead-in groove.
6. Malite ịkpọghachi: The record will begin playing.
7. End Playback: At the end of the record, use the cueing lever to lift the tonearm and return it to its rest.

3. Using the Target Light

Nke Ìhè ezubere iche provides illumination for the stylus, which is useful in low-light conditions for precise cueing. Press the button next to the target light to extend and illuminate it. Press again to retract it.

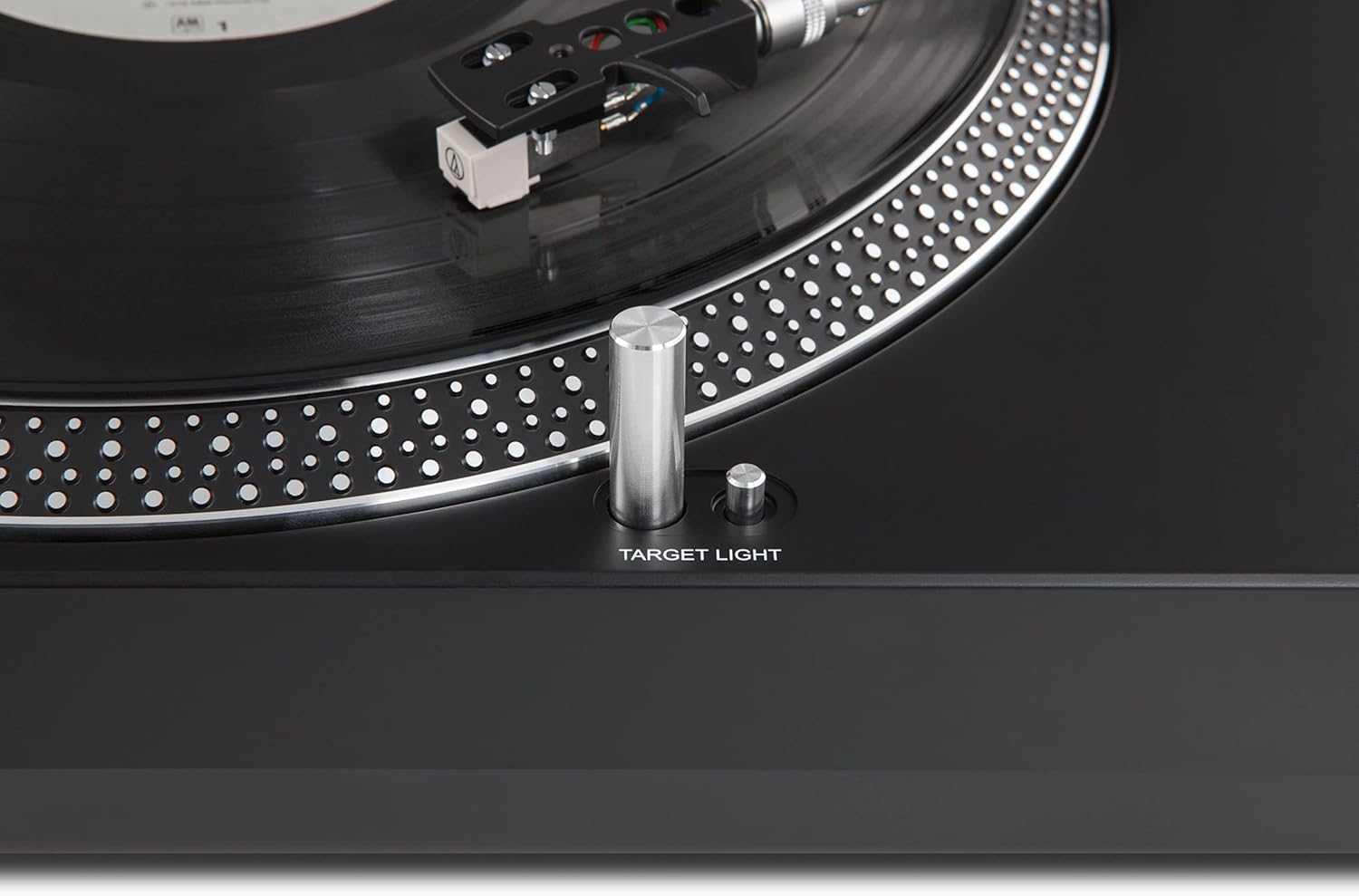

Foto 5: The target light, which illuminates the stylus for accurate placement on the record.

4. Adjusting Pitch

Nke PITCH ADJ. slider allows for fine adjustment of the playback speed. Move the slider up or down to increase or decrease the pitch, respectively. This is particularly useful for DJ applications or correcting minor speed variations.

Foto 6: The pitch adjustment slider, enabling precise control over the playback speed.

5. USB Digitization

To convert your vinyl records to digital MP3 files, connect the turntable to your computer using the provided USB cable. Install the included software from the CD. Follow the software's instructions to record and save your audio. The software is compatible with both Mac and PC operating systems.

Nlekọta

1. Cleaning the Stylus (Needle)

A clean stylus is essential for optimal sound quality and to prevent damage to your records. Use a soft brush, specifically designed for stylus cleaning, and gently brush from back to front. Never brush from side to side.

2. Cleaning the Turntable Unit

Wipe the turntable's surface with a soft, dry, lint-free cloth. For stubborn marks, a slightly damp A pụrụ iji ákwà mee ihe, mana hụ na mmiri ọ bụla abanyeghị na ngwaọrụ ahụ. Zere ihe nhicha ma ọ bụ ihe mgbaze.

3. Dust Cover Care

The dust cover protects your turntable from dust and debris. Clean it with a soft, damp cloth. Avoid using dry cloths as they can scratch the acrylic surface.

Nchọpụta nsogbu

Ọ bụrụ na ị na-ezute okwu anaghị edepụta ebe a ma ọ bụ ọ bụrụ na ngwọta akwadoro akwụsịghị nsogbu ahụ, biko kpọtụrụ nkwado ndị ahịa.

Nkọwapụta

Ozi akwụkwọ ikike

The TechniSat TECHNIPLAYER LP 300 comes with a Akwụkwọ ikike onye nrụpụta afọ 2. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty card included with your product or visit the official TechniSat websaịtị.

Mara: Spare parts availability is currently listed as "unavailable" by the manufacturer. Software updates are also listed as "information not available."

Nkwado

For technical assistance, product inquiries, or warranty service, please contact TechniSat customer support.

• Nkwado n'ịntanetị: Gaa na TechniSat gọọmentị websaịtị maka FAQs, akụrụngwa nkwado, na fọm kọntaktị.
• Ozi mkpọtụrụ: Refer to the contact details provided in your product packaging or on the TechniSat websaịtị maka ekwentị ma ọ bụ nkwado email.

Before contacting support, please have your product model (LP 300) and serial number (if applicable) ready.
