Kyosho Orion Vortex 10" High Torque 550 Brushless Motor 2800KV KDV Instruction Manual

1. Okwu mmalite

This manual provides essential information for the safe and efficient use of your Kyosho Orion Vortex 10" High Torque 550 Brushless Motor 2800KV KDV. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of the product. This motor is designed for remote-controlled vehicles requiring high torque and efficient power delivery.

2. Ozi nchekwa

Always observe the following safety precautions to prevent injury or damage to the motor and surrounding equipment:

• Debe aka, ntutu isi na uwe ndị na-adịghị mma pụọ ​​na akụkụ ndị na-atụgharị.
• Hụ na njikọ eletriki niile dị nchebe ma nwee mkpuchi kwesịrị ekwesị iji gbochie sekit dị mkpụmkpụ.
• Use only compatible Electronic Speed Controllers (ESC) and batteries that meet the motor's voltage na ugbu a chọrọ.
• Avoid operating the motor in wet conditions unless specifically designed for such environments.
• Monitor motor temperature during operation. Excessive heat can damage the motor and ESC.
• Disconnect the battery when not in use or during maintenance.
• This product is recommended for users aged 14 years and up.

3. Nhazi

Follow these steps for proper installation of your brushless motor:

1. Ịwụnye moto ahụ: Securely attach the motor to the vehicle's motor mount using appropriate screws. Ensure the motor is aligned correctly with the drivetrain.
2. Connecting to ESC: Connect the three motor wires to the corresponding output wires of your Electronic Speed Controller (ESC). The order of connection may affect motor rotation direction; adjust if necessary.
3. Pinion Gear Installation: Install the appropriate pinion gear onto the motor shaft. Ensure proper gear mesh with the vehicle's spur gear to prevent premature wear and damage.
4. Njikọ batrị: Connect the ESC to a compatible battery pack. Verify correct polarity before powering on.

Refer to your vehicle's manual for specific mounting and gear mesh instructions.

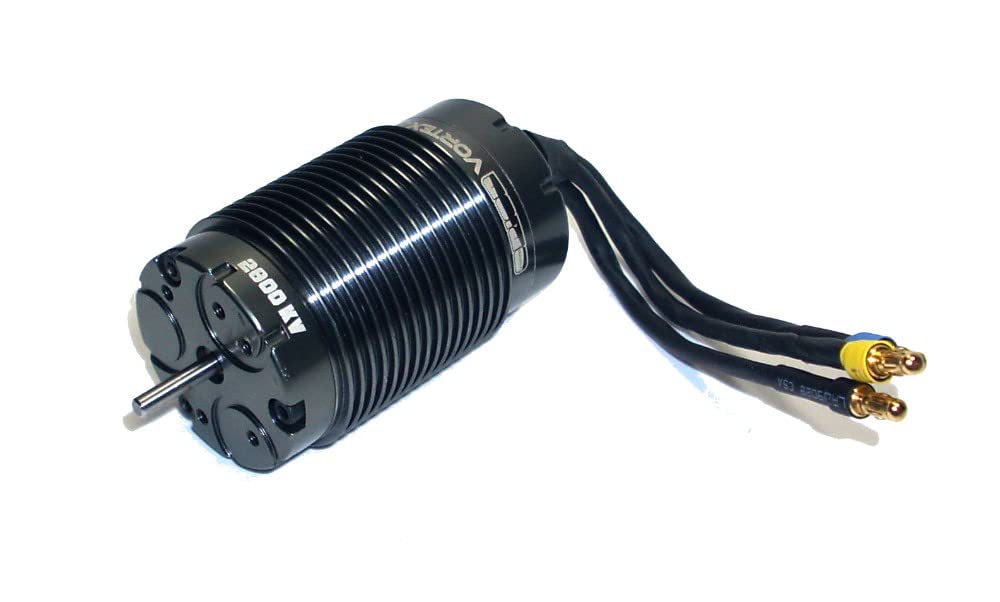

Image showing the Kyosho Orion Vortex 10 inch High Torque 550 Brushless Motor 2800KV KDV, a powerful electric motor designed for remote-controlled vehicles.

4. .rụ ọrụ

Once the motor is installed and connected, follow these guidelines for operation:

• Ike izizi: Power on your transmitter first, then connect the battery to the ESC. Follow your ESC's calibration procedure if required.
• Nleba anya: During initial runs, periodically check the motor and ESC temperature. If either component becomes excessively hot to the touch, stop operation and allow them to cool. Adjust gearing or driving style if overheating persists.
• Ọrụ dị nro: Operate the motor smoothly, avoiding sudden full throttle or braking, especially during the first few runs, to allow components to settle.

5. Nlekọta

Regular maintenance ensures optimal performance and extends the lifespan of your motor:

• Nhicha: After each use, especially in dusty or dirty conditions, clean the motor exterior with a soft brush or compressed air to remove debris.
• Nyocha: Periodically inspect motor wires for fraying or damage. Check the motor mount screws for tightness.
• Agba: The motor's bearings are sealed, but extreme conditions may require inspection or replacement over time. Consult a qualified technician if bearing noise or resistance is detected.
• Nchekwa: Chekwaa moto ahụ n'ebe dị ọcha, kpọrọ nkụ pụọ na oke okpomọkụ na ìhè anyanwụ.

6. Nchọpụta nsogbu

If you encounter issues with your motor, consider the following common problems and solutions:

• Motor Not Spinning:
  • Lelee ọkwa chaja batrị.
  • Verify all electrical connections between motor, ESC, and battery.
  • Ensure the ESC is properly calibrated with the transmitter.
  • Inspect motor wires for damage or short circuits.
• Ịkpọfe moto:
  • Reduce pinion gear size or increase spur gear size to lower the gear ratio.
  • Ensure adequate airflow around the motor.
  • Check for binding in the drivetrain or wheels.
  • Verify battery C-rating is sufficient for the motor's current draw.
• Erratic Motor Behavior:
  • Check for loose or damaged motor wire connections.
  • Ensure the ESC is functioning correctly.
  • Verify no debris is obstructing the motor's rotation.

7. Nkọwapụta

8. Akwụkwọ ikike na nkwado

For warranty information and technical support, please contact Kyosho customer service directly. Keep your proof of purchase for any warranty claims. Detailed contact information can typically be found on the manufacturer's official webngwugwu saịtị ma ọ bụ ngwaahịa.
