Grohe Tempesta Cosmopolitan 100 Shower Rail Set (Model 27789002) - User Manual

1. Ngwaahịa gafereview

The Grohe Tempesta Cosmopolitan 100 Shower Rail Set, model 27789002, is a high-quality shower system designed for modern bathrooms. It features a hand shower with three distinct spray patterns, a durable 900 mm shower bar, and a sleek chrome finish. This set is engineered for ease of use and long-lasting performance, incorporating Grohe's advanced technologies for water efficiency and easy maintenance.

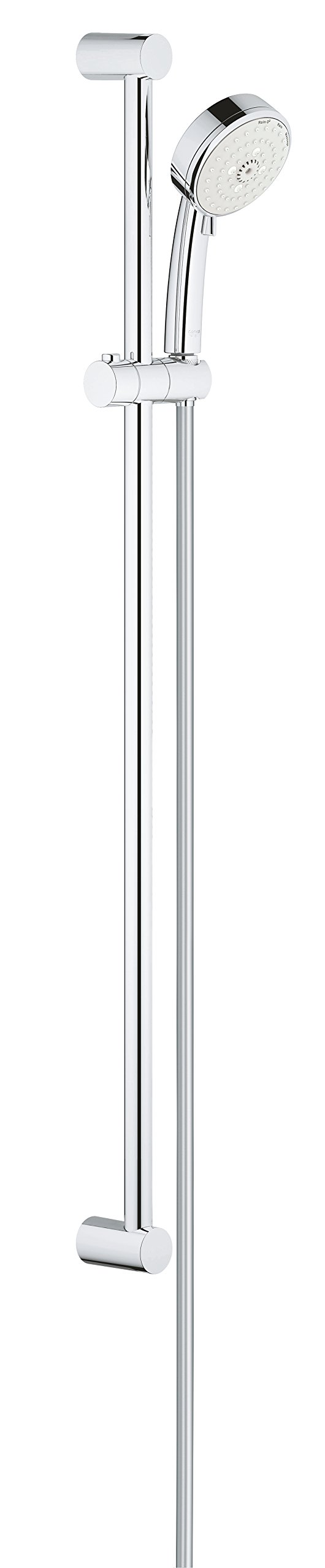

Image 1.1: The Grohe Tempesta Cosmopolitan 100 Shower Rail Set, showcasing the hand shower, shower bar, and chrome finish.

2. Ozi nchekwa

Please read all instructions carefully before installation and use. Failure to follow these instructions may result in injury or property damage.

• Ensure water supply is turned off before beginning any installation or maintenance.
• Use appropriate tools and protective equipment during installation.
• Ọ bụrụ na ịmaghị maka akụkụ ọ bụla nke nrụnye ahụ, kpọtụrụ onye na-ahụ maka plumber tozuru oke.
• Do not use abrasive cleaners or solvents on the chrome finish, as this may damage the surface.

3. Ihe ngwugwu

Verify that all components are present before starting installation:

• Grohe Tempesta Cosmopolitan 100 Hand Shower (3 spray types)
• Shower Bar (900 mm)
• Shower Hose (1750 mm)
• Wall Mounts and Fixings
• Akwụkwọ ntuziaka nwụnye

4. Ntọala na nwụnye

This shower rail set is designed for wall mounting. Professional installation is recommended for optimal performance and safety.

4.1. Ngwaọrụ Ndị A Chọrọ (Agụnyeghị Ya)

• Kwuo egwu
• Drill bits appropriate for wall material
• Ihe teepu
• Pensụl
• Ọkwa
• Screwdriver

4.2. Nzọụkwụ Nwụnye

1. Kwadebe Mpaghara Nwụnye: Turn off the main water supply. Clear the area where the shower rail will be installed.
2. Kaa akara ebe a na-egwupụta ihe: Hold the shower bar against the wall at the desired height. Use a level to ensure it is straight. Mark the positions for the wall mounts with a pencil. Refer to the dimension diagram for recommended spacing.
3. Oghere egwu egwu: Jiri obere ihe e ji gwuo olulu n'ebe akara ahụ dị, jiri ihe e ji gwuo olulu kwesịrị ekwesị maka ụdị mgbidi gị. Tinye ihe mkpuchi mgbidi ma ọ bụrụ na ọ dị mkpa.
4. Attach Wall Mounts: Secure the wall mounts to the wall using the provided screws.
5. Install Shower Bar: Slide the shower bar onto the secured wall mounts. Ensure it is firmly in place.
6. Jikọọ eriri ịsa ahụ: Attach one end of the 1750 mm shower hose to the hand shower and the other end to your shower outlet. Ensure all connections are hand-tightened, then use a wrench for a final quarter turn, being careful not to overtighten.
7. Nwale maka ntapu: Turn on the water supply and check all connections for leaks.

Image 4.1: Installation diagram with key dimensions (920mm bar length, 100mm hand shower diameter, 70mm wall clearance, G 1/2 connection).

5. Ntuziaka ọrụ

The Grohe Tempesta Cosmopolitan 100 hand shower offers three distinct spray patterns for a personalized shower experience.

5.1. Adjusting Spray Patterns

To change the spray pattern, simply rotate the spray plate on the hand shower head. The three available spray types are:

• Rain Spray: A soft, wide spray that mimics natural rain, ideal for a relaxing shower.
• Jet Spray: A focused, powerful spray for invigorating cleansing or rinsing.
• Massage Spray: A pulsating spray designed to soothe muscles and provide a stimulating sensation.

Image 5.1: The hand shower delivering a wide, refreshing spray.

5.2. Adjusting Hand Shower Height and Angle

The hand shower holder can be easily adjusted along the 900 mm shower bar to suit individual preferences. To adjust the height, press the button or lever on the holder and slide it up or down. The angle of the hand shower can also be tilted to direct the water flow as desired.

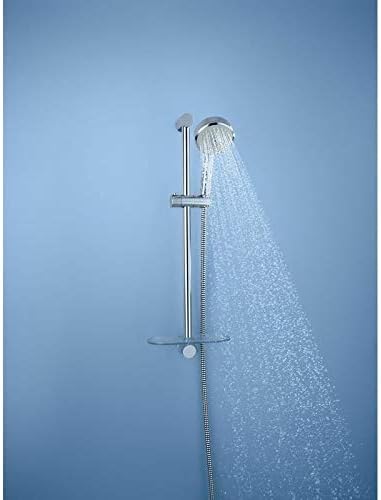

Image 5.2: The hand shower positioned lower on the rail, demonstrating height adjustability.

6. Nlekọta

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Grohe shower set.

6.1. Cleaning the Chrome Finish (GROHE StarLight)

The GROHE StarLight chrome finish is highly durable and easy to clean. To maintain its shine:

• Use only mild soap and water or a non-abrasive liquid cleaner specifically designed for chrome finishes.
• Wipe the surface with a soft cloth or sponge.
• Jiri mmiri dị ọcha kpochaa nke ọma ma jiri akwa dị nro kpoo ya ka ọ ghara ịchọta mmiri.
• Ejila: Abrasive cleaners, scouring pads, acid-based cleaners, or cleaners containing alcohol, as these can damage the finish.

6.2. Limescale Removal (SpeedClean)

The hand shower features Grohe's SpeedClean anti-limescale system. To remove limescale buildup from the spray nozzles:

• Simply wipe the silicone nozzles with your finger or a soft cloth. The flexible silicone allows for easy removal of limescale deposits.
• For stubborn deposits, a mild descaling solution can be used, followed by thorough rinsing.

7. Nchọpụta nsogbu

If you encounter issues with your shower set, refer to the following common problems and solutions:

8. Nkọwapụta

9. Akwụkwọ ikike na nkwado

9.1. Akwụkwọ ikike nke onye nrụpụta

GROHE offers a 5-year manufacturer's warranty for this product when purchased and shipped directly from Amazon. For purchases made through third-party sellers, the respective seller's warranty terms apply. Please retain your proof of purchase for warranty claims.

9.2. Nkwado ndị ahịa

For further assistance, technical support, or spare parts inquiries, please visit the official GROHE website or contact their customer service department. Contact details can typically be found on the GROHE websaịtị ma ọ bụ na nkwakọ ngwaahịa.
