Leica Pinmaster II Metric/Yard Version 40533 User Manual

Okwu mmalite

This manual provides comprehensive instructions for the proper use, setup, and maintenance of your Leica Pinmaster II Metric/Yard Version 40533 rangefinder. Please read this manual thoroughly before operating the device to ensure optimal performance and safety.

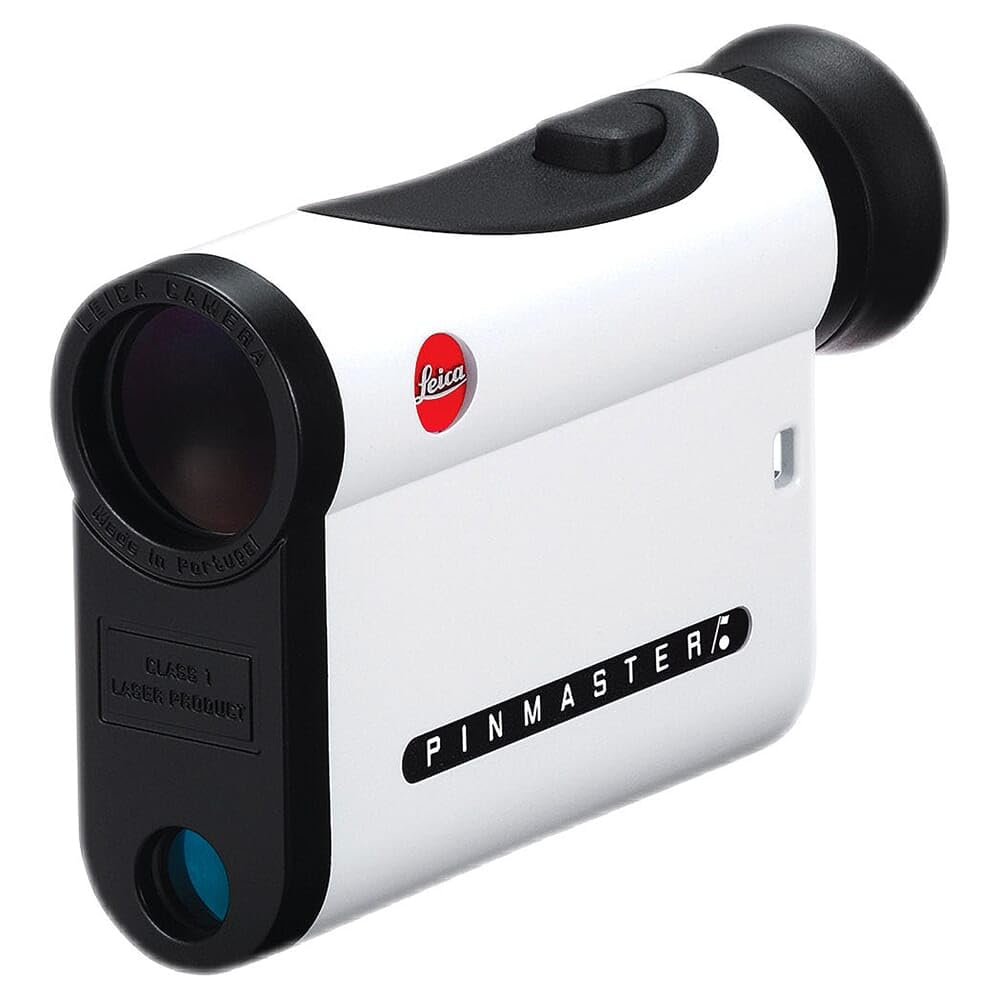

Image: The Leica Pinmaster II rangefinder, a compact device designed for precise distance measurement in golf.

Ozi nchekwa

• Nchekwa laser: The Leica Pinmaster II uses an invisible Class 1 laser. Do not look directly into the laser beam or point it at others.
• Nchekwa batrị: Use only the specified Lithium-Ion battery. Do not attempt to open, crush, or expose the battery to extreme temperatures. Dispose of batteries according to local regulations.
• Ijikwa mkpokọta: Avoid dropping the device or subjecting it to severe impacts. Keep the device away from direct sunlight for prolonged periods.
• Nguzogide mmiri: The device is waterproof to 3 feet. Do not submerge it beyond this depth or for extended periods. Ensure the battery compartment is securely closed before exposure to water.

Ihe ngwugwu

Chọpụta na ihe niile dị na ngwugwu:

• Leica Pinmaster II Rangefinder (Model 40533)
• Batrị Lithium-Ion (etinyere ya ma ọ bụ kewapụrụ iche)
• Akpa na-ebu
• Eriri olu
• Akwa nhicha oghere
• Ntuziaka mmalite ngwa ngwa

Melite

Ntinye batrị

The Leica Pinmaster II operates on a single Lithium-Ion battery. If the battery is not pre-installed, follow these steps:

1. Locate the battery compartment cover, typically on the side or bottom of the device.
2. Turn the cover counter-clockwise to open it.
3. Insert the Lithium-Ion battery with the positive (+) terminal facing the direction indicated inside the compartment.
4. Replace the cover and turn it clockwise until it is securely tightened to ensure water resistance.

Mara: A low battery indicator will appear in the display when the battery needs replacement.

Ike mbụ Gbanye

After installing the battery, press the main operating button (usually located on the top of the device) to power on the Pinmaster II. The display will illuminate, showing the reticle and measurement units.

Ntuziaka ọrụ

Na-agbanye ma gbanyụọ

• Iji gbanye: Press the main operating button briefly. The device will power on and the display will activate.
• Nwepu akpaaka: The Pinmaster II will automatically power off after approximately 10-15 seconds of inactivity to conserve battery life.

Ogologo Ogologo

To obtain a single distance measurement:

1. Look through the eyepiece and aim the reticle (crosshairs or aiming circle) at the desired target.
2. Press and release the main operating button. The distance to the target will be displayed instantly in yards or meters.
3. Ensure a steady hand for accurate readings. For small targets like flagsticks, aim carefully.

Nkọwa: The Pinmaster II features a bright, clear display with a precise aiming reticle, allowing users to target objects up to 825 yards away. The 7x magnification aids in target acquisition.

Ọnọdụ nyocha

Scan mode allows for continuous measurement of multiple targets or a moving target:

1. Press and hold the main operating button for approximately 2 seconds.
2. While holding the button, pan the device across different targets. The display will continuously update with the distances to the objects in the reticle's path.
3. Release the button to stop scanning. The last measured distance will remain displayed for a few seconds before automatic shut-off.

Unit Selection (Metric/Yard)

To switch between yards and meters:

1. With the device powered on, press and hold the main operating button and a secondary function button (if available, refer to the quick start guide for exact button location) simultaneously for a few seconds.
2. The unit of measurement (Y or M) in the display will change. Release the buttons when the desired unit is shown.

Na-edozi Ngosipụta ihie

The Pinmaster II features an adjustable display brightness for optimal visibility in various lighting conditions. To adjust:

1. Ike na ngwaọrụ.
2. Press the secondary function button (if available) repeatedly to cycle through different brightness levels.
3. Select the brightness level that provides the clearest view without causing glare.

Nlekọta

Na-ehicha ngwa anya

To maintain clear vision, keep the objective and eyepiece lenses clean:

• Use the provided lens cleaning cloth or a soft, lint-free cloth.
• Gently wipe the lens surfaces to remove dust and smudges.
• For stubborn dirt, use a small amount of optical lens cleaning fluid applied to the cloth, not directly to the lens.
• Avoid using abrasive materials or harsh chemicals, as these can damage the lens coatings.

Nchekwa

When not in use, store the Leica Pinmaster II in its protective carrying case in a cool, dry place. Avoid extreme temperatures and high humidity.

Ngbanwe batrị

When the low battery indicator appears, replace the Lithium-Ion battery promptly to ensure continued operation. Follow the battery installation steps outlined in the 'Setup' section.

Nchọpụta nsogbu

Nkọwapụta

Akwụkwọ ikike na nkwado

Leica products are manufactured to the highest quality standards and come with a limited warranty. For detailed warranty information, product registration, or technical support, please refer to the official Leica website or contact Leica customer service. Keep your purchase receipt as proof of purchase for warranty claims.

Akụrụngwa dị n'ịntanetị: For additional information, FAQs, and software updates, visit the official Leica Store on Amazon or the main Leica websaịtị.
