1. Ngwaahịa gafereview

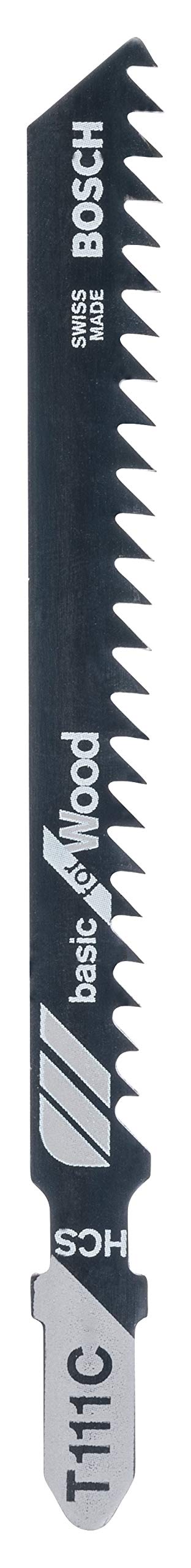

This manual provides instructions for the Bosch HCS T 111 C Jigsaw Blade, Model 2609256716. This blade is designed for fast and efficient cutting of wood materials. It features High Carbon Steel (HCS) construction, a total length of 100 mm, a toothed length of 76 mm, and a pitch of 3.0 mm, suitable for cutting wood with a thickness between 4 mm and 50 mm.
Figure 1: Packaging of the Bosch HCS T 111 C Jigsaw Blade. The packaging displays two blades, indicating their type (T 111 C HCS Basic for Wood) and compatible brands like Black&Decker, Bosch, Makita, Metabo, Skil.
2. Ozi nchekwa
Always adhere to general power tool safety guidelines when using this jigsaw blade. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Nchekwa Anya: Always wear appropriate eye protection, such as safety goggles, to protect against flying debris.
- Yiri Aka Nchekwa: Use work gloves to protect your hands from sharp edges and splinters.
- Ihe eji arụ ọrụ echedoro: Mgbe niile clamp ma ọ bụ tinye ihe e ji arụ ọrụ ahụ n'ebe ọzọ iji gbochie mmegharị n'oge ịkpụ.
- Kwụpụ ike: Ensure the jigsaw is unplugged or its battery removed before changing blades.
- Nyochaa Blade: Before each use, inspect the blade for any damage, cracks, or dullness. Do not use damaged blades.
- Jiri agụba ziri ezi: Ensure the blade type is suitable for the material being cut. This T 111 C blade is specifically for wood.
- Debe aka ọcha: Never place hands near the cutting area while the tool is operating.
3. Ntọala na nwụnye
Proper installation of the jigsaw blade is crucial for safe and effective operation.
- Gbaa mbọ hụ na agbanyụrụ ike: Disconnect the jigsaw from its power source (unplug or remove battery pack).
- Mepee Blade Clamp: Chọta agụba clamp mechanism on your jigsaw. Depending on your jigsaw model, this may involve a lever, a screw, or a quick-release system. Refer to your jigsaw's instruction manual for specific details.
- Fanye agụba: Insert the shank of the Bosch T 111 C blade into the blade clamp, ensuring the teeth are facing forward (towards the front of the jigsaw). Push the blade in until it is fully seated.
- Blade echedoro: Close or tighten the blade clamp mechanism to firmly hold the blade in place. Gently pull on the blade to confirm it is securely locked and will not come loose during operation.
- Lelee ndakọrịta: This blade is compatible with most jigsaws that accept T-shank blades, including models from Bosch, Black&Decker, Makita, Metabo, and Skil.
4. Ntuziaka ọrụ
The Bosch HCS T 111 C blade is designed for fast cutting in wood. Follow these steps for optimal performance:
- Kwadebe mpempe ọrụ: Na nzuzo clamp the wood workpiece to a stable surface. Mark your cutting line clearly.
- Adjust Jigsaw Settings: Set your jigsaw to the appropriate orbital action and speed for wood cutting. For fast cuts, a higher orbital setting is often preferred.
- Malite ịkpụ: Place the jigsaw's base plate flat on the workpiece, ensuring the blade is aligned with your cutting line. Start the jigsaw before the blade makes contact with the material.
- Guide the Cut: Slowly guide the jigsaw along the cutting line, applying steady, even pressure. Allow the blade to do the work; do not force it. The blade is suitable for wood thicknesses between 4 mm and 50 mm.
- Jikwaa njikwa: Keep both hands on the jigsaw's handles for maximum control and stability.
- Finish Cut: Once the cut is complete, release the trigger and wait for the blade to stop completely before lifting the jigsaw from the workpiece.
Figure 2: A jigsaw in operation, cutting a piece of wood. This demonstrates the typical use case for the Bosch HCS T 111 C blade, emphasizing proper handling and workpiece stability.
5. Nlekọta
Proper maintenance extends the life of your jigsaw blade and ensures consistent cutting performance.
- Nhicha: After each use, remove any sawdust, resin, or debris from the blade using a brush or compressed air. Resin buildup can reduce cutting efficiency and increase friction.
- Nchekwa: Store blades in a dry place to prevent rust. Keep them in their original packaging or a blade storage case to protect the teeth from damage and prevent accidental injury.
- Nyocha: Regularly inspect the blade for signs of wear, such as dull teeth, bent sections, or cracks. A dull blade will require more force to cut, leading to poorer cut quality and increased strain on your jigsaw.
- Ndochi: Replace the blade when it becomes dull or damaged. Attempting to sharpen jigsaw blades is generally not recommended due to their small size and specific tooth geometry.
6. Nchọpụta nsogbu
Here are some common issues and their potential solutions when using the jigsaw blade:
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Poor cut quality (rough edges, splintering) | Dull blade, incorrect speed/orbital setting, forcing the cut | Replace blade, adjust jigsaw settings, reduce feed pressure |
| Blade bending or breaking | Forcing the cut, cutting too fast, blade not securely clamped, cutting material too thick | Reduce feed pressure, ensure blade is clamped tightly, verify material thickness is within 4-50mm range |
| Blade getting stuck | Workpiece not properly supported, blade dull, excessive resin buildup | Ensure workpiece is stable, clean or replace blade |
| Oke ịma jijiji | Loose blade, damaged blade, incorrect jigsaw settings | Check blade installation, replace damaged blade, adjust jigsaw settings |
7. Nkọwapụta
| Njirimara | Nkọwa |
|---|---|
| Nọmba nlereanya | 2609256716 |
| Ụdị agụba | T 111 C (HCS, Basic for Wood) |
| Ihe onwunwe | High Carbon Steel (HCS) |
| Mgbakọta Ogologo | 100 mm |
| Toothed Length | 76 mm |
| Mgbapụta | 3.0 mm |
| Cutting Thickness (Wood) | 4-50 mm |
| Ojiji akọwapụtara | Ịcha osisi |
| Ọnụọgụ nke Iberibe | 1 (per package, though some packaging may contain multiples) |
| Akụkụ (L x W x H) | 17 x 5.5 x 0.3 cm |
| Ibu | 10 grams |
8. Akwụkwọ ikike & Nkwado
As a consumable item, jigsaw blades typically do not come with an extended warranty against wear and tear. However, they are generally covered against manufacturing defects.
- Mkpesa akwụkwọ ikike: For any concerns regarding manufacturing defects, please contact your retailer or Bosch customer service with proof of purchase.
- Nkwado ngwaahịa: For additional information or support, please visit the official Bosch website or contact their customer service department. You can find more information at www.bosch-professional.com.
- Jigsaw Manual: Always refer to your specific jigsaw's instruction manual for detailed information on blade compatibility, installation, and safe operation practices.
