1. Ozi nchekwa
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in property damage, personal injury, or death.
Ịdọ aka ná ntị: Ngwaahịa a nwere kemịkalụ mara steeti California ka ọ na-ebute ọrịa kansa na ntụpọ ọmụmụ ma ọ bụ mmerụ ahụ ọmụmụ ọzọ. Maka ozi ndị ọzọ, gaa na www.P65Warnings.ca.gov.
Always exercise caution when dispensing hot water to prevent burns. Keep children away from the dispenser during operation.
2. Ngwaahịa gafereview
The InSinkErator Indulge Contemporary F-HC1100 Instant Hot and Cold Water Dispenser Faucet in Chrome is designed to provide convenient access to near-boiling and cool drinking water. Its contemporary design features a high-arching swivel spout and two integrated levers.
Akụkụ ndị bụ isi:
- Ọrụ abụọ: Dispenses both near-boiling hot water and filtered cold water.
- Ihe owuwu na-adịgide adịgide: Made from solid brass for longevity and corrosion resistance.
- Swivel Spout: 360-degree swivel for easy filling of various containers.
- Safety Hot Lever: Features an instant self-closing valve for safe hot water dispensing.
- Stay-On Cool Lever: Conveniently remains on for continuous cold water flow.
- Designer Finish: Chrome finish complements modern kitchen aesthetics.
Figure 2.1: InSinkErator F-HC1100C Contemporary Instant Hot & Cold Water Dispenser in Chrome.
3. Ntọala & nwụnye
This section provides general guidance for installing your InSinkErator F-HC1100C dispenser. For detailed, model-specific instructions, always refer to the complete manual included with your product. Professional installation is recommended.
3.1 Ndepụta nbanye tupu etinyere
- Ensure countertop thickness is 3 inches or less.
- Verify a standard 1-3/8 inch to 1-1/2 inch diameter hole is available for the faucet.
- Confirm a grounded electrical outlet is available under the sink.
- Ensure adequate clearance for dispenser handles to operate fully.
- The InSinkErator HWT-F1000S Hot Water Tank and Filtration System (sold separately) is required for operation.
3.2 Installation Steps Overview
- Gbanyụọ Ọsọ Mmiri: Chọta ma gbanyụọ valvụ na-enye mmiri oyi n'okpuru sink.
- Prepare Faucet: Unpack all faucet components. Carefully straighten the copper tubing. Ensure the black O-ring is properly seated in the base of the dispenser head.
- Mount Faucet: Feed the tubes down through the countertop hole. Secure the faucet from underneath the sink using the circular mounting plate and hex nut. Tighten by hand, then use the supplied hex tool for final tightening, ensuring the faucet is at the desired angle.
- Mount Tank: Select a vertical mounting spot under the sink, within 16 inches of faucet water lines and 30 inches of a grounded outlet. Mark screw locations, pre-drill pilot holes, and install screws leaving about a quarter inch exposed. Hang the tank on the screws and tighten, but do not overtighten.
- Jikọọ Faucet na tank: Connect the blue, white, and clear tubes from the faucet to their corresponding fittings on the tank. Push the blue tube connector down until it clicks into place.
- Final Water Connection: Install a T-fitting (not included) onto the existing cold water supply line. A dedicated water control valve with a 1/4-inch compression fitting is recommended. Connect the copper inlet tubing to the T-fitting using the compression nut.
- Weghachite Mmiri na Ike: Turn on the water supply. Open the hot water faucet to fill the tank until water flows through the spout. Plug the tank's power cord into the grounded electrical outlet. The tank will begin heating the water.
Video 3.1: Official InSinkErator Installation Guide for Instant Hot & Cold Water Dispenser. This video provides a visual walkthrough of the installation process.
Figure 3.1: The InSinkErator faucet installed on a kitchen counter, ready for use.
4. Ntuziaka ọrụ
The InSinkErator F-HC1100C is designed for simple and safe operation.
4.1 Na-ekesa mmiri ọkụ
- Place a heat-safe cup or container under the faucet spout.
- Push the hot water lever (typically marked with red) back and hold it. Hot water will dispense.
- Release the lever to stop the flow. The hot water lever is designed to automatically shut off for safety.

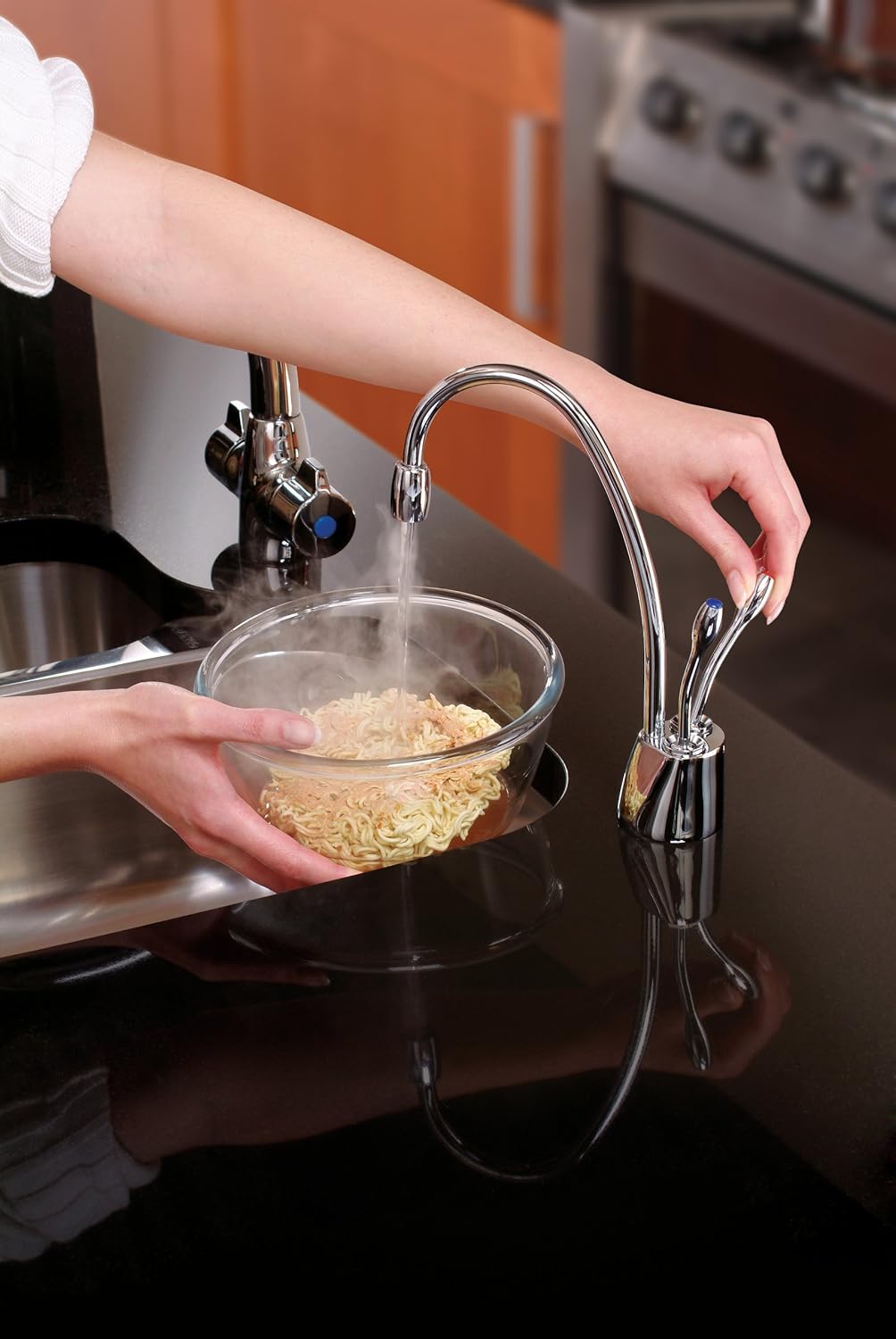

Figure 4.1: Dispensing hot water for instant meals.
4.2 Dispensing Cold Water
- Place a cup or container under the faucet spout.
- Push the cold water lever (typically marked with blue) forward. Cold water will dispense.
- The cold water lever will remain on until manually pushed back to the off position.

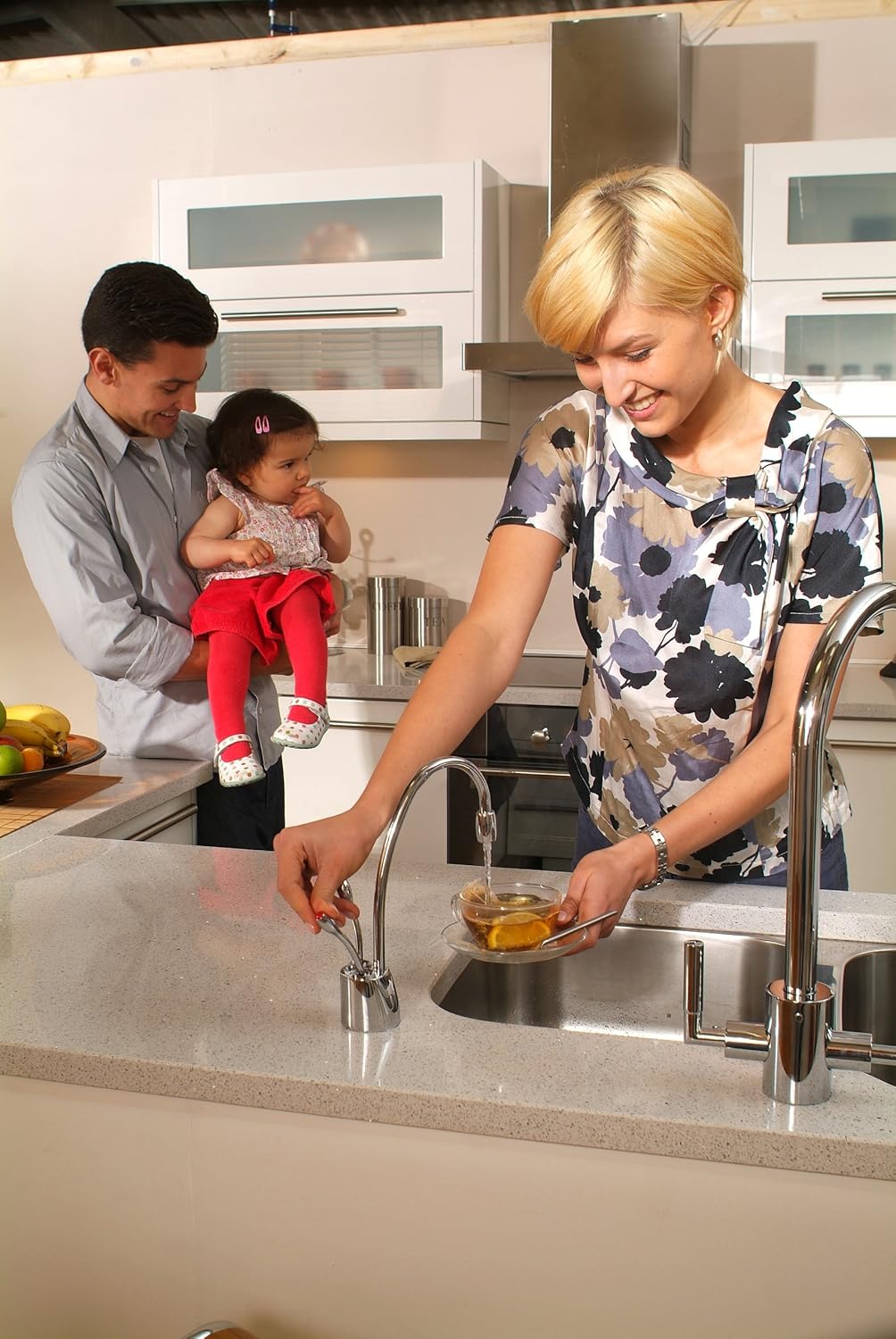

Figure 4.2: Using the cold water dispenser for drinking water.
5. Nlekọta
Regular maintenance ensures optimal performance and longevity of your dispenser.
5.1 Ndochi nzacha
If using the optional InSinkErator HWT-F1000S Hot Water Tank and Filtration System, filter cartridges (e.g., F-201R) should be replaced periodically according to the filter manufacturer's recommendations or when water flow noticeably decreases.
- Refer to your filtration system's manual for specific filter replacement instructions.
- Always turn off the water supply to the filtration system before attempting to replace the filter.
Ọgụgụ 5.1: Ọpụample of an InSinkErator water filtration system.
5.2 Nhicha
- Clean the exterior of the faucet with a soft, damp cloth and mild soap. Avoid abrasive cleaners that may damage the finish.
- Periodically check for any leaks around connections and tighten if necessary.
6. Nchọpụta nsogbu
If you encounter issues with your InSinkErator F-HC1100C, refer to the following common troubleshooting steps:
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| No hot water / Water not hot enough | Power not connected, water supply off, thermostat setting too low, tank not filled. | Check power connection and outlet. Ensure water supply is on. Adjust thermostat on the hot water tank. Open hot water faucet to fill tank until water flows. Allow 15-20 minutes for water to heat. |
| Water dripping from spout | Air in the system, sediment buildup, faulty valve. | Dispense hot water for 2-3 minutes to clear air. If dripping persists, contact customer support. |
| Obere mmiri eruba | Clogged filter, kinked water line, low water pressure. | Replace water filter cartridge. Check water lines for kinks. Verify household water pressure. |
| Ntupu sitere na njikọ | Loose connections, damaged O-rings. | Carefully tighten connections. If leaks persist, inspect O-rings for damage and replace if necessary. |
If these steps do not resolve the issue, please contact InSinkErator Customer Support.
7. Nkọwapụta
| Njirimara | Nkọwa |
|---|---|
| Nọmba nlereanya | F-HC1100C |
| Agba | Chrome |
| Ihe onwunwe | Bras |
| Capacity (Tank) | 2.5 Liters (Tank sold separately) |
| Akụkụ ngwaahịa | 18"D x 3.56"W x 11"H (Faucet) |
| Ụdị | Na-ekpo ọkụ na oyi |
| Ibu | 3.7 Pounds (Faucet) |
| Wattage | 750 watts (Tank) |
| Ụdị nwụnye | N'okpuru Sink |
| Ọnụọgụ nke Aka | 2 |
| Nleba okpomọkụ | 190 ogo Fahrenheit |
| Isi Iyi Ike | Igwe ọkụ eletrik |
8. Akwụkwọ ikike & Nkwado
8.1 Ozi akwụkwọ ikike
The InSinkErator F-HC1100C Instant Hot and Cold Water Dispenser is covered by an exclusive 5-Year "We Come to You" In-Home Full Service Limited Warranty. This warranty includes free house calls (including parts and labor) for the entire warranty period. Please refer to the official warranty documentation included with your product for complete details and terms.
8.2 Nkwado ndị ahịa
For technical assistance, troubleshooting, or warranty claims, please contact InSinkErator Customer Support. Contact information can typically be found on the manufacturer's websaịtị ma ọ bụ na nkwakọ ngwaahịa gị.
Akụrụngwa dị n'ịntanetị: Visit the official InSinkErator websaịtị maka FAQ, ndebanye aha ngwaahịa, yana ihe nkwado ndị ọzọ.
