KODAK EasyShare Z7590 Digital Camera User Manual

Okwu mmalite

Welcome to the KODAK EasyShare Z7590 Digital Camera user manual. This guide provides detailed instructions for setting up, operating, and maintaining your camera. The EasyShare Z7590 is a 5.0-megapixel digital camera featuring a 10x optical zoom Schneider-Kreuznach Variogon lens, designed to capture high-quality images and videos. Its intuitive design and advanced features make it suitable for various photography needs.

The camera is equipped with a 2.2-inch high-resolution indoor/outdoor display, capable of recording continuous VGA (640 x 480) video with audio. It supports SD/MMC memory cards for expanded storage and includes a 32MB internal memory.

Kedu ihe dị na Igbe ahụ

Hụ na ihe niile dị na ngwugwu igwefoto gị:

• KODAK EasyShare Z7590 Zoom Digital Camera
• High-capacity KODAK EasyShare Li-Ion Rechargeable Battery (1700mAh)
• Rapid Battery Charger Kit
• Audio-Video Cable
• eriri USB
• Eriri olu
• Lens Cap with Strap
• Getting Started Kit (with KODAK EasyShare Software)
• Custom Camera Insert (for optional KODAK EasyShare camera and printer docks)

Melite

1. Ịchaji batrị

Before initial use, fully charge the provided Li-Ion rechargeable battery using the rapid battery charger.

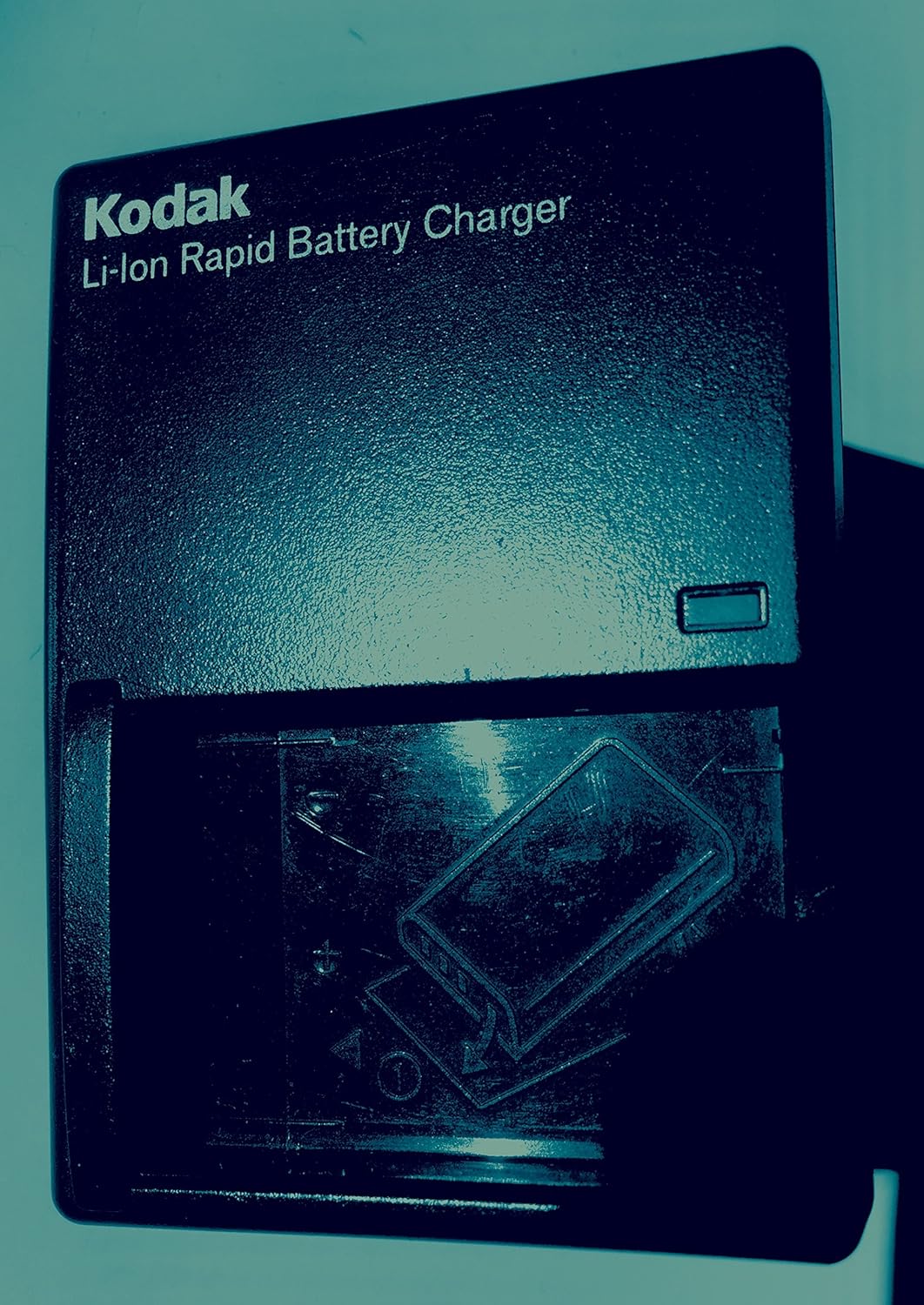

Foto: KODAK Li-Ion Rapid Battery Charger. Insert the battery into the charger as indicated by the diagram on the charger.

1. Insert the KODAK Li-Ion battery into the rapid battery charger.
2. Tinye chaja n'ime oghere ọkụ.
3. The charging indicator light will show the charging status. Refer to the charger's specific instructions for light indications.
4. Once fully charged, remove the battery and insert it into the camera.

2. Ịtinye kaadị ebe nchekwa

The camera has 32MB of internal memory. For extended shooting, insert an SD or MMC memory card.

Foto: SD and MMC Memory Cards. The camera supports both SD and MMC card types.

1. Locate the memory card slot on the camera (typically on the side or bottom).
2. Insert the SD or MMC card with the metal contacts facing the correct direction, as indicated by a diagram near the slot.
3. Tinye kaadị ahụ ruo mgbe ọ pịrị n'ime ebe.

3. Attaching the Neck Strap and Lens Cap

Attach the neck strap for secure handling and the lens cap to protect the lens when not in use.

Foto: KODAK EasyShare Z7590 Digital Camera. The camera is shown with the neck strap attached and the lens cap covering the lens.

Na-arụ ọrụ igwefoto

Camera Controls Overview

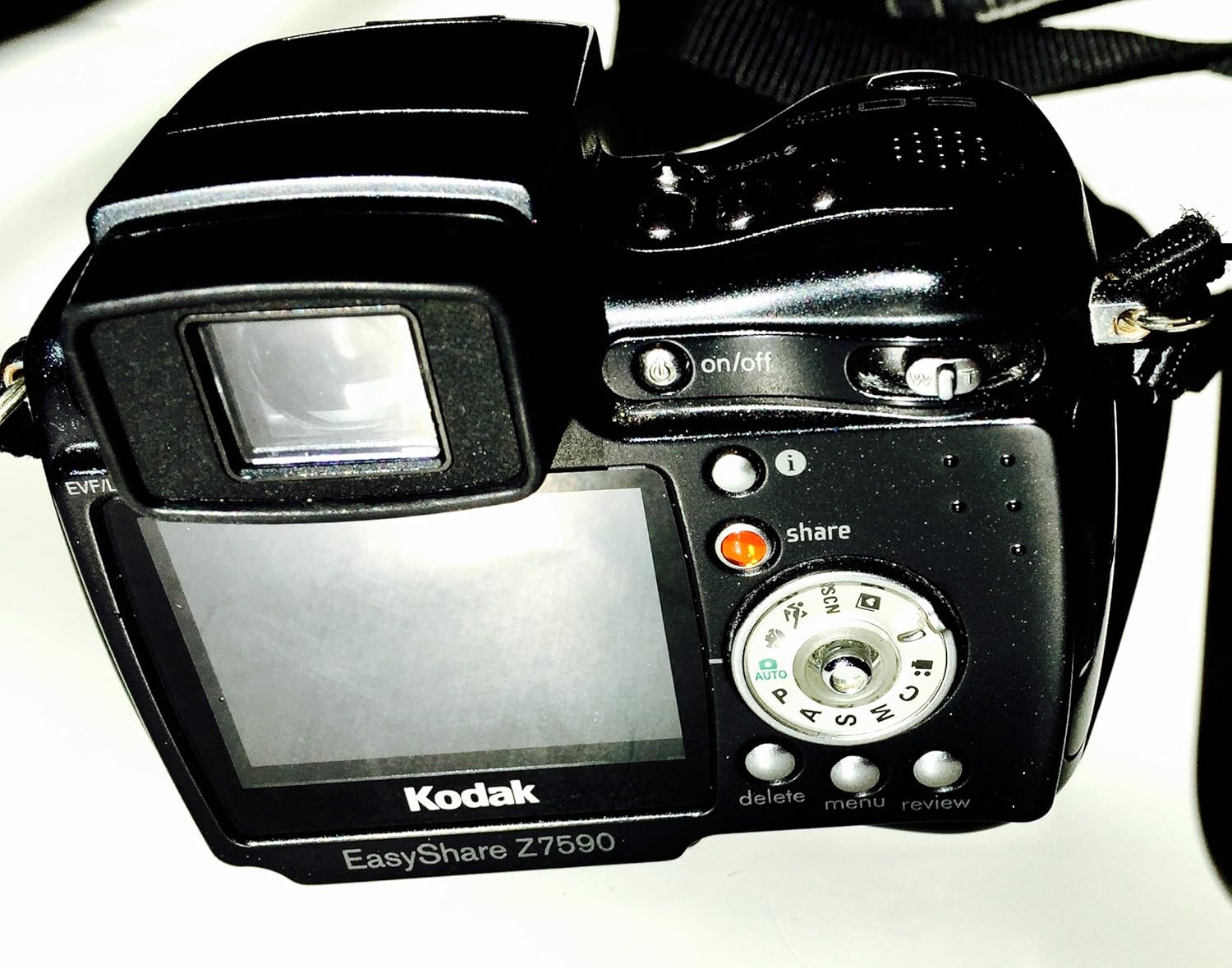

Foto: N'azụ view of the KODAK EasyShare Z7590 Digital Camera. This image highlights the LCD screen, control dial, and various buttons such as 'on/off', 'share', 'delete', 'menu', and 'review'.

• Bọtịnụ ike: Located on the top of the camera, used to turn the camera on or off.
• Bọtịnụ mkpuchi: Press halfway to focus, fully to take a picture.
• Ọkụ mbugharị: Controls the 10x optical zoom and 3x advanced digital zoom.
• Ọkpọ oku ụdị: Selects shooting modes (Auto, Program, Aperture Priority, Shutter Priority, Manual, Scene, Movie).
• Ngosipụta LCD: 2.2-inch high-resolution screen for composing shots and reviewihe oyiyi.
• Bọtịnụ Ekekọrịta: Maka tagging photos for printing or emailing.
• Bọtịnụ menu: Accesses camera settings and options.
• Hichapụ bọtịnụ: Removes unwanted photos or videos.
• Review Bọtịnụ: Enters playback mode to view captured media.

Ụdị agbapụ

The mode dial allows selection of various shooting modes to suit different photographic situations.

• Ụdị akpaaka (AUTO): Camera automatically sets optimal exposure.
• Program Mode (P): Camera sets optimal shutter speed and aperture combination.
• Aperture Priority Mode (A): You choose the aperture, and the camera sets the shutter speed.
• Shutter Priority Mode (S): You choose the shutter speed, and the camera sets the aperture.
• Ụdị akwụkwọ ntuziaka (M): Full control over aperture and shutter speed.
• Omenala mode: Allows you to create and save your own capture settings.
• Scene Modes (SCN): Pre-programmed settings for specific scenarios (e.g., Portrait, Landscape, Sport, Night).
• Ọnọdụ ihe nkiri: For recording video with audio.

Ịse foto

1. Jiri bọtịnụ ike gbanye igwefoto.
2. Select your desired shooting mode using the mode dial.
3. Frame your shot using the LCD display or electronic viewonye nchọta.
4. Jiri ihe mmịfe mbugharị gbanwee ogologo ntụnye anya.


   Foto: N'ihu view of the KODAK EasyShare Z7590 Digital Camera, highlighting the Schneider-Kreuznach Variogon lens with 10x optical zoom.

5. Press the shutter button halfway to focus. The focus indicator will confirm focus.
6. Pịa bọtịnụ mkpuchi ahụ nke ọma iji seta foto ahụ.

Na-edekọ vidiyo

1. Turn the mode dial to Movie Mode.
2. Pịa bọtịnụ mkpuchi ka ịmalite ndekọ.
3. Pịa bọtịnụ mkpuchi ọzọ ka ịkwụsị ndekọ.
4. Videos are recorded in VGA (640 x 480) at 12 frames per second or QVGA (320 x 240) at 20 frames per second, with audio.

Atụmatụ dị elu

Njikwa akwụkwọ ntuziaka

For experienced users, the Z7590 offers extensive manual controls:

• Nkwụghachi ụgwọ ngosi: +/- 2.0 EV in 0.3 EV steps.
• oghere: Wide (f2.8-8.0) and Tele (f3.7-8.0).
• Ọsọ shutter: Automatic: 1/8-1/1700 sec.; Manual: 16-1/1000 sec.
• ISO Equivalents: Automatic: 80-160; Selectable: 80, 100, 200, 400, 800.
• Nchekwa onwe: Multi-zone, center weighted, selectable: left, center, right.
• Exposure Metering Type: Auto: TTL-AE matrix metering; Selectable: multi-pattern, center-weighted, center spot.
• Ntụle ọcha: Auto, daylight, tungsten, fluorescent, open shade.
• Flash Compensation: 1.0 EV in 1/2 EV steps.
• Ụdị ọkụ: Auto, red-eye, fill, off.

Continuous Shooting and Bracketing

• First Burst Mode: Captures up to 5 frames in rapid succession at 2 frames per second.
• Last Burst Mode: Captures up to 30 frames at 2 frames per second, saving the last 4 frames.
• Autoexposure Bracketing: 3 images with user-selectable brackets (+/-0.3, +/-0.7 or +/-1.0 EV).

Ụdị ihe nkiri

The camera includes 16 programmed scene modes for optimized shooting in various conditions:

• Portrait Modes: Portrait, Self-portrait, Night Portrait, Backlight.
• Landscape Modes: Landscape, Night Landscape, Fireworks.
• Bright Scene Modes: Beach and Snow.
• Action Modes: Sport and Children.
• Close-up Modes: Macro and Flower.
• Ụdị nnọkọ For indoor settings with lower light.
• Text/Documents Mode: Ensures sharp text when photographing documents.
• Manner/Museum Mode: Use when sound or flash are not desired.

Ụdị agba

Adjust the color output of your images with 5 available color modes:

• High Color
• Low Color
• Agba eke
• Sepia
• Oji na ọcha

Jikọọ na Ịkekọrịta

The KODAK EasyShare Z7590 is designed for easy sharing of your photos and videos.

Using the Share Button

The exclusive Share button on the camera allows you to tag favorite pictures for later printing or emailing directly from the camera when connected to a computer with KODAK EasyShare Software.

KODAK EasyShare Software

The included KODAK EasyShare Software works seamlessly with your camera to enable one-button transferring and sharing. It provides tools to view, edit, organize, print, or create slide shows from your computer. The "One Touch to Better Pictures" feature automatically adjusts inkjet printer settings for optimal photo quality on KODAK Inkjet Photo Papers.

Jikọọ na Kọmputa

Use the provided USB cable to connect your camera to a computer for transferring files.

Ijikọ a TV

Use the provided Audio-Video cable to connect your camera to a television for viewing photos and videos on a larger screen.

Nlekọta

Proper care and maintenance will ensure the longevity and optimal performance of your KODAK EasyShare Z7590 Digital Camera.

• Na-ehicha oghere: Use a soft, lint-free cloth specifically designed for camera lenses. Avoid using abrasive materials or harsh chemicals. Gently wipe the lens in a circular motion.
• Na-ehicha ahụ igwefoto: Jiri ákwà dị nro ma kpọọ nkụ hichaa ahụ igwefoto ahụ. Maka unyi siri ike, jiri obere d hichaa ya.ampen the cloth with water. Do not use solvents or alcohol.
• Nlekọta batrị: Store batteries in a cool, dry place. Do not expose them to extreme temperatures. Remove the battery if the camera will not be used for an extended period.
• Nchekwa: Store the camera in a dry, dust-free environment, preferably in a camera bag or case. Avoid direct sunlight and high humidity. Ensure the lens cap is on when storing.
• Nlekọta Kaadị ebe nchekwa: Handle memory cards carefully. Avoid bending or exposing them to static electricity. Format memory cards periodically within the camera to maintain performance.

Nchọpụta nsogbu

This section addresses common issues you might encounter with your KODAK EasyShare Z7590 Digital Camera.

Nkọwapụta

Key technical specifications for the KODAK EasyShare Z7590 Digital Camera:

Akwụkwọ ikike na nkwado

For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official KODAK support websaịtị.

For technical assistance, troubleshooting beyond this manual, or service inquiries, please contact KODAK customer support.
