Okwu mmalite
This manual provides detailed instructions for the installation, operation, and maintenance of your DB DRIVE A3 2250.5 Okur Series A3 Class AB 1000 Watt 5-Channel Amplifier. Please read this manual thoroughly before attempting installation or operation to ensure proper use and to prevent damage to the unit or your vehicle's audio system.

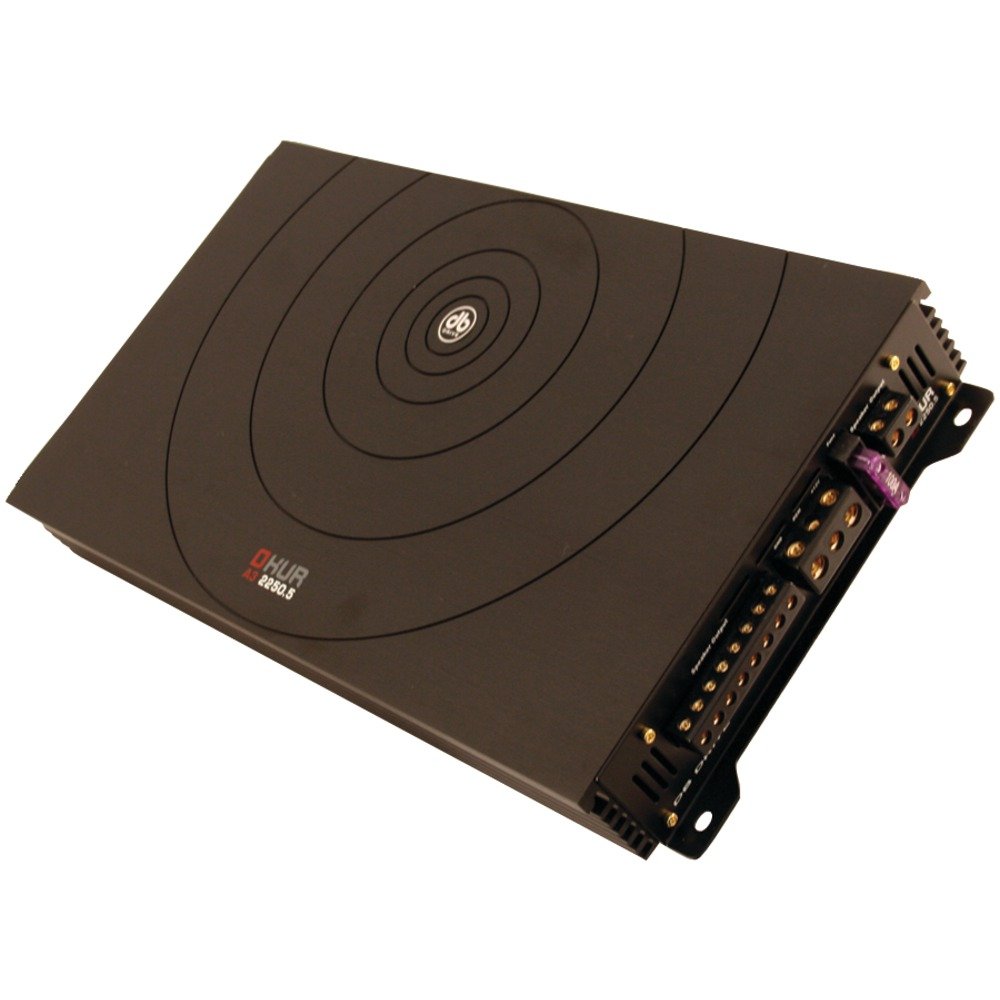

Image: DB DRIVE A3 2250.5 Okur Series A3 Class AB 1000 Watt 5-Channel Amplifia. Foto a na-egosi amplifier's top view, highlighting its compact design and branding.
Ozi nchekwa
Na-edebe nchekwa nchekwa ndị a mgbe niile iji gbochie mmerụ ahụ ma ọ bụ mmebi:
- Disconnect the vehicle's battery negative terminal before making any power connections.
- Hụ na e tinyere waya niile n'ụzọ kwesịrị ekwesị ma chekwaa ha iji gbochie ntụpọ ma ọ bụ obere sekit.
- Use appropriate gauge wiring for power and ground connections as specified in the installation section.
- Wụnye ya amplifier in a location that allows for adequate ventilation to prevent overheating.
- Zere ịwụnye amplifier in areas exposed to moisture or excessive vibration.
- Gakwuru ọkachamara n'ihe gbasara itinye ụda n'ụgbọala ma ọ bụrụ na ị maghị akụkụ ọ bụla nke usoro nrụnye ahụ.
Ntọala na nwụnye
1. Mwepu na nyocha
Jiri nlezianya wepu amplifier from its packaging. Inspect the unit for any signs of damage that may have occurred during shipping. Contact your dealer immediately if any damage is found.
2. Ịwụnye Ampna -emegharị ihe
Choose a mounting location that is dry, well-ventilated, and secure. Common locations include under a seat, in the trunk, or behind a panel. Ensure there is sufficient airflow around the amplifier's heatsink.
- Mark the mounting holes using the amplifier as a template.
- Drill pilot holes if necessary, being careful not to damage any vehicle components.
- Chekwaa amplifier na-eji kposara arịọnụ enyere.
3. Njikọ njikọ
Proper wiring is crucial for performance and safety. Refer to the following guidelines:
- Power (BATT+): Connect a heavy-gauge wire (e.g., 4 AWG or 8 AWG depending on total power) directly from the positive terminal of the vehicle's battery. Install an inline fuse holder within 18 inches (45 cm) of the battery.
- Ala (GND): Connect a heavy-gauge wire of the same size as the power wire to a clean, unpainted metal surface of the vehicle's chassis. Ensure a solid, low-resistance connection.
- Ime (REM): Connect a smaller gauge wire (e.g., 18 AWG) from the amplifier's remote terminal to the remote output of your head unit. This turns the ampgbanyụọ ma gbanyụọ ihe na-ebuli elu ya na isi ihe.
- Ntinye RCAJikọọ eriri RCA site na ihe eji arụ ọrụ nke isi gị tupu oge eruoamp mmepụta na amplifier's RCA input jacks. Ensure correct channel matching (Front L/R, Rear L/R, Sub).
- Mpụta okwu: Connect speaker wires from the amplifier's speaker terminals to your speakers. Observe correct polarity (+ to + and - to -). This is a 5-channel amplifier, typically 4 channels for full-range speakers and 1 channel for a subwoofer.
4. Gain, Crossover, and Bass Boost Settings
These settings allow you to fine-tune the amplifier's output to match your audio system and preferences.
- Nweta njikwa: Adjust the gain to match the output voltage of your head unit. Start with the gain at minimum, then slowly increase it until you hear distortion, then back off slightly. This is not a volume control.
- Crossover (LPF/HPF):
- Ihe ntinye nke obere (LPF): For the subwoofer channel, set the LPF to allow only low frequencies to pass (e.g., 80-120 Hz).
- Ihe nzacha ngafe dị elu (HPF): For the full-range channels, set the HPF to block low frequencies from reaching your main speakers (e.g., 80-100 Hz) to prevent distortion and improve sound clarity.
- Bass Boost: Use the bass boost sparingly. Excessive bass boost can lead to distortion and speaker damage. Adjust to taste, ensuring sound remains clear.
Ntuziaka ọrụ
Once installed and configured, the amplifier will power on automatically with your head unit via the remote turn-on wire. Adjust volume and tone controls primarily from your head unit. The amplifier's settings (gain, crossover) are set during installation and generally do not require frequent adjustment.
Nlekọta
The DB DRIVE A3 2250.5 amplifier chọrọ obere mmezi.
- Nhicha: Periodically wipe the ampJiri ákwà dị nro ma kpọọ nkụ wepụ uzuzu n'èzí lifier. Ejila kemịkalụ siri ike ma ọ bụ ihe nhicha na-eme ka ihe dị nro.
- Nyocha: Occasionally check all wiring connections to ensure they are secure and free from corrosion. Ensure the amplifier's ventilation fins are not obstructed.
Nchọpụta nsogbu
Ọ bụrụ na ị nwere nsogbu na ndụ gị amplifier, rụtụ aka na nsogbu na azịza ndị a na-ahụkarị:
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Enweghị ike / Amplifier anaghị agbanye |
|
|
| Enweghị mpụta ụda |
|
|
| Ụda agbagọ |
|
|
| Amplifier Overheating (Protection Mode) |
|
|
Nkọwapụta
| Njirimara | Nkọwa |
|---|---|
| Nọmba nlereanya | A3 2250.5 |
| Mbupute ike kacha | 1000 Watt |
| Ọwa | 5-Channel (4 stereo, 1 mono for subwoofer) |
| AmpKlas liifier | Klas AB |
| Ngwa | Audiophile Grade |
| Akụkụ (L x W x H) | 53.59 x 30.48 x 10.92 cm |
| Ibu | 6.53 n'arọ |
| Njikwa okpomọkụ | DRIVESINK (Okur Series A3 feature) |
Akwụkwọ ikike na nkwado
DB Drive products are designed for reliability and performance. This product is covered by a limited warranty. Please refer to the warranty card included with your product or visit the official DB Drive websaịtị maka nkọwa na usoro akwụkwọ ikike.
For technical support, service, or warranty claims, please contact your authorized DB Drive dealer or visit the DB Drive official websaịtị maka ozi kọntaktị na akụrụngwa nkwado.
