1. Okwu mmalite
The SONICAKE QME-20 Smart Box is a compact and powerful multi-effects processor designed for guitarists, bassists, and acoustic players. It integrates a wide array of effects, amp models, and utility features into a portable unit, making it suitable for practice, recording, and live performance. This manual provides detailed instructions to help you maximize your experience with the QME-20 Smart Box.
Image 1.1: The SONICAKE QME-20 Smart Box positioned on an electric guitar, showcasing ya dị obere imewe na interface onye ọrụ.
2. Atụmatụ igodo
The QME-20 Smart Box offers a comprehensive suite of features:
- Nhazi ọtụtụ mmetụta: Features 9 simultaneous effect modules and over 130 high-quality effects, including amp, cabinet IR, EQ, delay, and reverb.
- Njikwa atọrọ: 100 preset slots available for storing and recalling your custom tones.
- Advanced Tone Customization: Utilizes proprietary white-box digital modeling for superior sound clarity. Supports third-party NAM (Neural Amp Model) and cabinet IR (Impulse Response) files for expanded tonal possibilities.
- Connectivity & Control: Includes Sonicake Manager software for PC/Mac and the Soniclink mobile app for deep editing, preset management, and IR/NAM uploads.
- Interface ọdịyo USB: Functions as a USB audio interface with loopback and re-amp support for recording and practice.
- Ngwa arụmọrụ: Built-in 20-second looper, chromatic tuner, metronome, and 100 drum rhythms.
- Intuitive Footswitches: Dedicated footswitches with multi-color LED rings for stompbox-style toggling and tap tempo control.
- I/O dị iche iche: True stereo TRS outputs, headphone jack, EXP/FS TRS jack for external expression pedals or footswitches, USB-C, and wireless BT-MIDI.
- Nhọrọ ike: Powered via 9V DC adapter or USB. Features a built-in 2000mAh rechargeable battery for up to 3.5 hours of portable operation.
Foto 2.1: Ofeview of the Smart Box's extensive effect modules and compatibility.
3. Ntuziaka Nhazi
3.1 Mwepu na nyocha izizi
Carefully remove the QME-20 Smart Box from its packaging. Inspect the unit for any signs of damage. Ensure all components are present: the Smart Box unit, USB-C cable, and power adapter (if included).
3.2 Ịnye Ike na Ngwaọrụ
The QME-20 Smart Box can be powered in two ways:
- Via 9V DC Power Adapter: Connect the included 9V DC power adapter to the 9V DC input jack on the rear of the unit. Plug the adapter into a standard wall outlet.
- Via USB-C: Connect the USB-C cable to the USB-C port on the unit and to a compatible USB power source (e.g., computer, USB wall adapter).
- Batrị dị n'ime: The unit has a built-in rechargeable battery. Ensure it is charged for portable use.
3.3 Connecting Your Instrument and Audio Output
Refer to the diagram below for port identification.
Image 3.1: Rear panel connections of the SONICAKE QME-20 Smart Box.
- Connect your guitar or bass to the IN (Input) jack using a standard 1/4-inch instrument cable.
- For stereo output, connect the STEREO pụọ (Output) jacks to your amplifier, mixer, or audio interface using 1/4-inch TRS cables. For mono, use the left output.
- For silent practice, connect headphones to the Ekwentị (Headphone) jack using a 3.5mm stereo cable.
- To use an external expression pedal or footswitch, connect it to the EXP/FS jakị.
- For computer connectivity (USB Audio Interface, software control), connect the USB port to your computer using the provided USB-C cable.
3.4 Software na ngwa nwụnye
To unlock the full potential of the QME-20, download and install the following:
- Sonicake Manager (PC/Mac): Visit the official SONICAKE website to download the latest software for deep editing and preset management.
- Soniclink Mobile App: Chọọ maka "Soniclink" on your mobile device's app store (iOS/Android) to control the unit wirelessly via Bluetooth.
4. Ntuziaka ọrụ
4.1 Basic Navigation and Presets
The QME-20 features a clear display and intuitive controls.

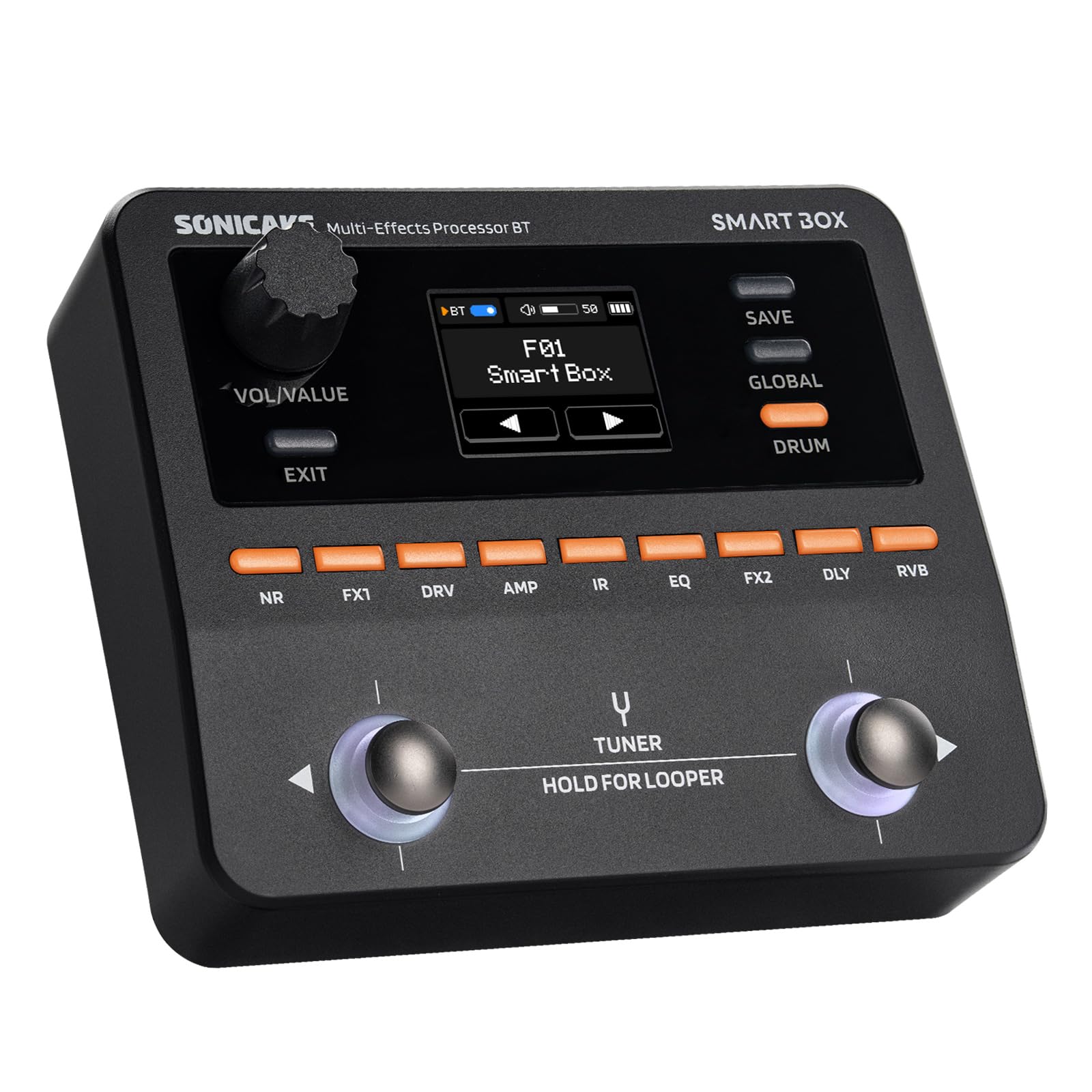

Image 4.1: Seamless tone editing via the full-color screen and LED-lit buttons.
- VOL/VALUE Knob: Controls the overall output volume and adjusts parameter values when editing effects.
- Bọtịnụ ọpụpụ: Returns to the previous menu or exits editing mode.
- Bọtịnụ SAVE: Saves current settings to a preset slot.
- Bọtịnụ ụwa niile: Accesses global settings such as input/output levels, Bluetooth, and system preferences.
- DRUM Button: Activates the drum machine and metronome functions.
- Ụkwụ: The two main footswitches (left and right) are used for navigating presets, engaging/disengaging effects, and controlling the looper. Their function changes based on the selected mode.
4.2 Effect Modules and Editing
The QME-20 organizes effects into 9 modules, each with dedicated buttons (NR, FX1, DRV, AMP, IR, EQ, FX2, DLY, RVB).
- Press an effect module button to toggle it on/off within the current preset.
- Hold an effect module button to enter its editing parameters. Use the VOL/VALUE knob to adjust parameters and the EXIT button to return.
- The Sonicake Manager software and Soniclink app provide a more visual and detailed interface for editing effects and managing presets.
4.3 Tuner, Looper, and Drum Machine
- Tuner: Press both footswitches simultaneously to activate the chromatic tuner. Strum a string, and the display will show the note and tuning accuracy. Press either footswitch again to exit.
- Looper: Hold the right footswitch (labeled "HOLD FOR LOOPER") to enter looper mode.
- Drum Machine/Metronome: Press the DRUM button to access drum rhythms and metronome settings. Use the VOL/VALUE knob to select patterns and adjust tempo.

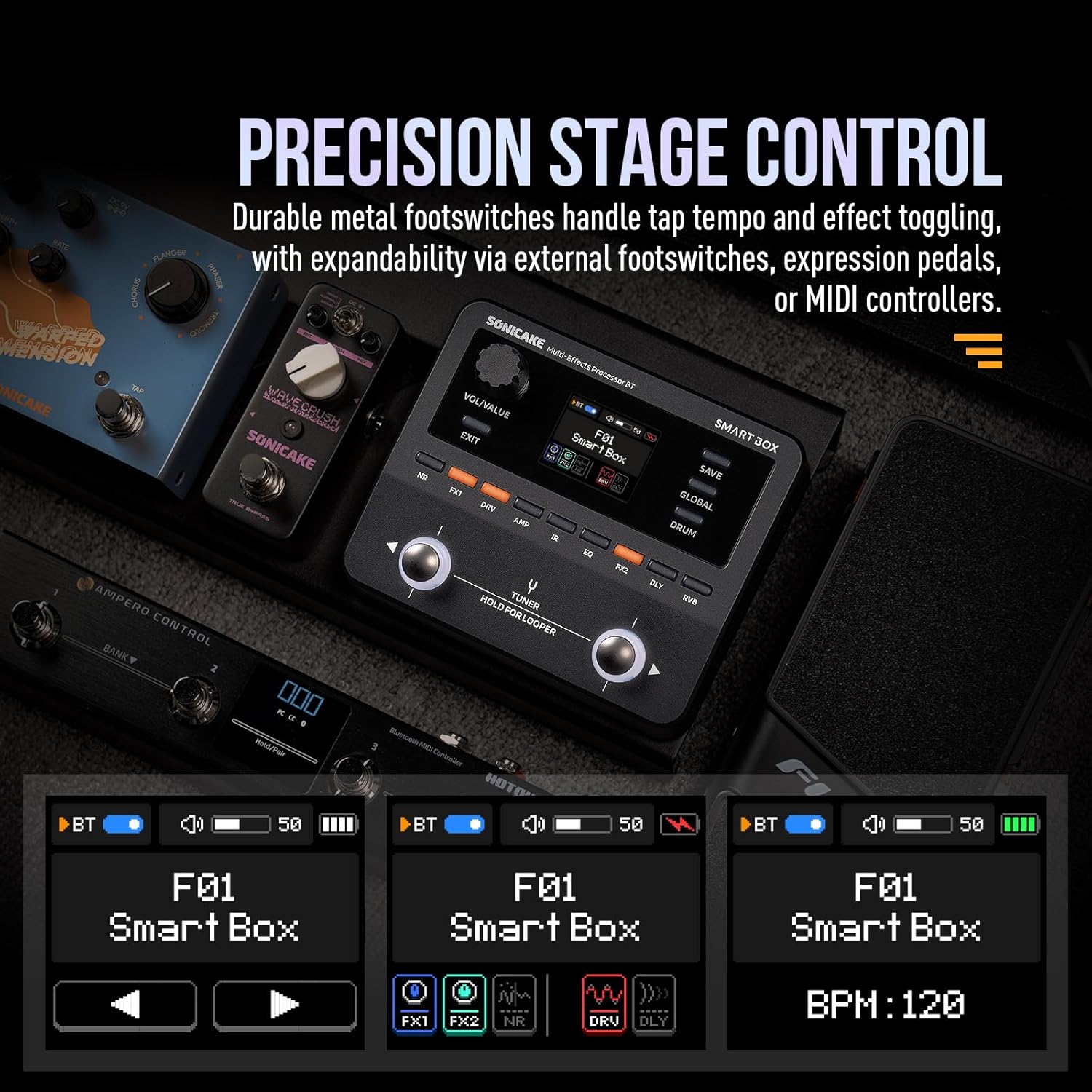

Image 4.2: The QME-20 Smart Box integrates with external footswitches and expression pedals for enhanced stage njikwa.
4.4 Ọrụ Njikọ Ọdịyo USB
When connected to a computer via USB-C, the QME-20 acts as an audio interface. This allows you to:
- Record your guitar directly into a DAW (Digital Audio Workstation).
- Use the re-amp function to send dry guitar signals back through the QME-20 for processing.
- Utilize the loopback function to record audio playing on your computer along with your guitar.
4.5 Njikọ Bluetooth
The QME-20 supports Bluetooth for wireless control via the Soniclink mobile app and for audio playback (BT-MIDI). Refer to the app's instructions for pairing and control.
5. Nlekọta
5.1 Nhicha
To clean the unit, use a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents. Avoid spraying liquids directly onto the unit.
5.2 Nchekwa
When not in use for extended periods, store the QME-20 Smart Box in a cool, dry place away from direct sunlight and extreme temperatures. Disconnect all cables and ensure the unit is powered off.
5.3 Nlekọta batrị
The built-in rechargeable battery should be fully charged before first use. For optimal battery life, avoid completely discharging the battery frequently. If storing for a long time, charge the battery to approximately 50% every few months.
6. Nchọpụta nsogbu
If you encounter issues with your QME-20 Smart Box, refer to the following common problems and solutions:
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Enweghị ike | Power adapter not connected, battery discharged, faulty cable. | Ensure power adapter is securely connected and plugged in. Charge the internal battery. Try a different USB-C cable or power source. |
| Enweghị mmepụta ụda | Incorrect connections, volume too low, effects bypassed. | Check all instrument and output cable connections. Increase the VOL/VALUE knob. Ensure desired effects/amp models are engaged. Check global output settings. |
| Ụda agbagọ ma ọ bụ adịghị mma | Input/output levels too high, faulty cables, incorrect impedance. | Adjust input and output levels in global settings. Try different cables. Ensure your amplifier/mixer input is appropriate for the QME-20's output. |
| Enweghị ike ijikọ site na Bluetooth | Agbanyeghị Bluetooth, ngwaọrụ anaghị adị n'ụdị njikọta, nnyonye anya. | Ensure Bluetooth is enabled on the QME-20 (check global settings) and your mobile device. Put the QME-20 into pairing mode if necessary. Move closer to the unit. |
| Looper not recording/playing | Incorrect looper mode, memory full. | Ensure you are in looper mode. Check looper settings. The looper has a 20-second limit. |
If the problem persists, please contact SONICAKE customer support.
7. Nkọwapụta
| Njirimara | Nkọwa |
|---|---|
| Nọmba nlereanya | QME-20 |
| Akụkụ (L x W x H) | 5.51 x 2.36 x 5.91 sentimita asatọ (ihe dị ka 140 x 60 x 150 mm) |
| Ibu | 15.2 ounce (430 grams) |
| Ịnye ọkụ | 9V DC (2000mA recommended) or USB-C |
| Batrị | Built-in 2000mAh rechargeable battery (up to 3.5 hours operation) |
| Effects Modules | 9 simultaneous modules |
| Total Effects | 130+ |
| Oghere edobere ya | 100 |
| Looper Time | 20 sekọnd |
| Rhythms Drum | 100 |
| Ntinye | 1/4-inch TS Instrument Input |
| Mpụta | 1/4-inch TRS Stereo Output |
| Apụọ ekweisi | 3.5mm ihe nrụpụta ekweisi stereo |
| Expression/Footswitch | 1/4-inch TRS EXP/FS Jack |
| USB Interface | USB-C for Audio Interface and Software Control |
| Njikọ ikuku | Bluetooth (BT-MIDI) |
8. Videos ngwaahịa
The following videos provide additional information and demonstrations of the SONICAKE QME-20 Smart Box. These videos are provided by the seller to enhance your understanding of the product's features and operation.
Vidiyo 8.1: Ngwaahịa gafereview and Demonstration (7:01)
Vidiyo a na-enye nkọwa zuru ezuview of the SONICAKE QME-20 Smart Box, demonstrating its various features and sound capabilities.
Video 8.2: Feature Spotlight (3:54)
A closer look at some of the key functionalities and effects offered by the QME-20 Smart Box.
Video 8.3: Sound Samples (2:20)
Listen to various tones and effects produced by the QME-20 Smart Box in different musical contexts.
Video 8.4: Advanced Usage Tips (9:19)
This video delves into more advanced settings and creative applications of the QME-20 Smart Box.
Video 8.5: Looper and Drum Machine Tutorial (5:32)
A detailed guide on how to use the built-in looper and drum machine features of the QME-20 Smart Box.
Video 8.6: Connectivity and Software Integration (9:15)
This video explains how to connect the QME-20 to various devices and utilize its software control features.
Video 8.7: Quick Start Guide (1:30)
A concise video to help you get started quickly with your QME-20 Smart Box.
Video 8.8: NAM/IR Loading Tutorial (1:08)
Learn how to load third-party NAM and IR files onto your QME-20 Smart Box for expanded tonal options.
Video 8.9: Preset Creation and Management (2:02)
This video guides you through the process of creating, editing, and managing your custom presets on the QME-20 Smart Box.
Video 8.10: Full Product Review (9:56)
Ihe omimi review of the QME-20 Smart Box, covering its performance, features, and overall value.
