1. Okwu mmalite
This manual provides essential instructions for the proper installation, operation, and maintenance of the GENERIC SH-311(A) Shuttle Hook. This component is designed for use with specific Brother pattern sewing machine models, including BAS-304, BAS-310, BAS-311, BAS-314, BAS-326, BAS-341, TC-310(A), and TC-310(B). Please read this manual thoroughly before attempting any installation or maintenance to ensure safe and efficient use.
2. Ozi nchekwa
- Always disconnect the sewing machine from the power supply before installing, removing, or performing any maintenance on the shuttle hook or any other machine part.
- Wear appropriate personal protective equipment (PPE), such as safety glasses, to prevent injury.
- Handle the shuttle hook carefully to avoid dropping or damaging it, as this can affect its performance.
- Debe obere akụkụ n'ebe ụmụaka nọ.
- If you are unsure about any step, consult a qualified sewing machine technician.
3. Ngwaahịa gafereview
The SH-311(A) Shuttle Hook is a critical component in the bobbin assembly of compatible industrial sewing machines. It is responsible for catching the needle thread to form a lockstitch. This part is constructed from durable aluminum, ensuring longevity and reliable performance in demanding sewing environments.

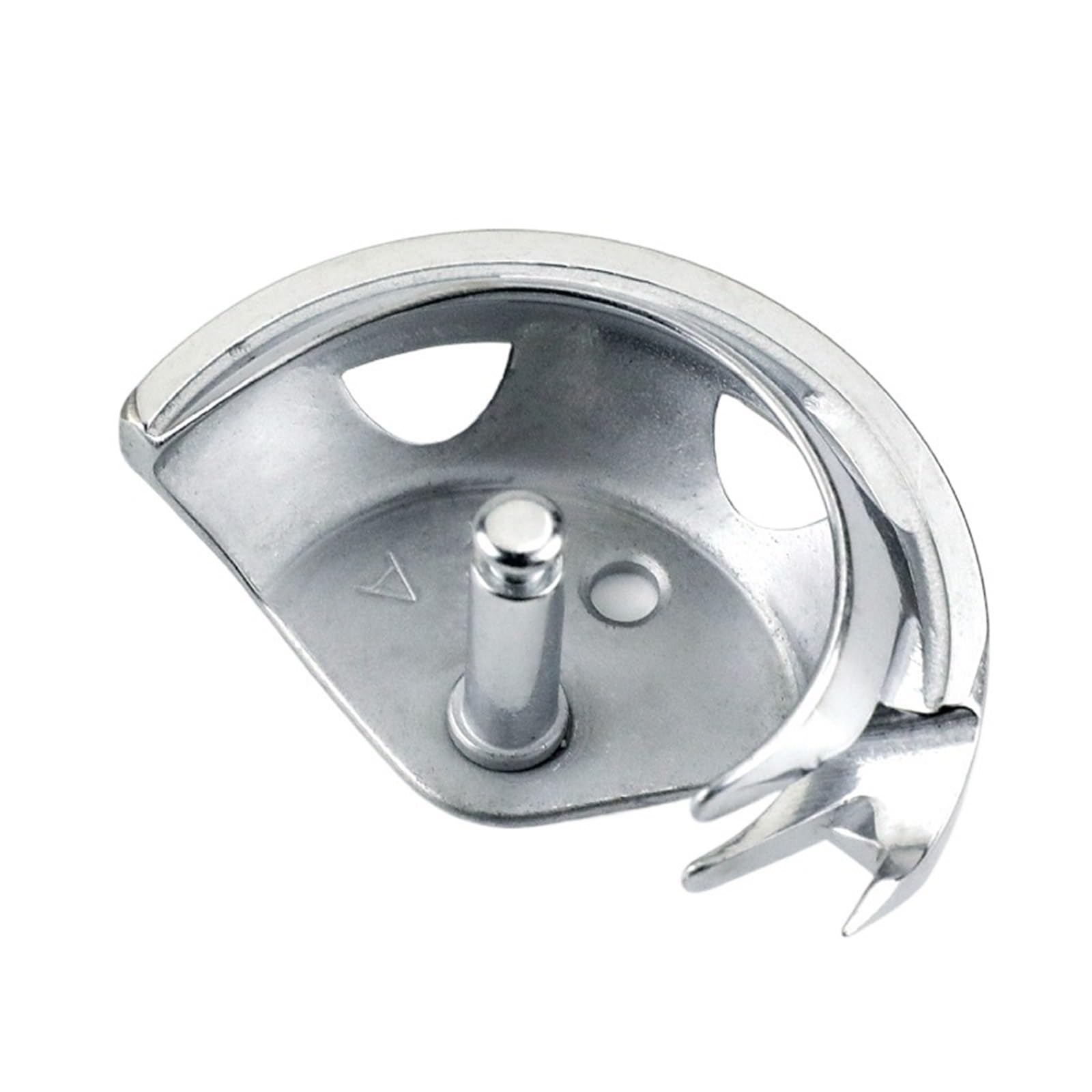

Figure 1: The GENERIC SH-311(A) Shuttle Hook. This image displays the metallic, silver-colored shuttle hook, highlighting its central spindle and the distinctive curved hook structure designed to interact with the sewing machine's needle and bobbin thread.
4. Ntuziaka nwụnye
Follow these steps carefully to install the SH-311(A) Shuttle Hook into your compatible Brother pattern sewing machine.
- Kwadebe igwe: Ensure the sewing machine is turned off and unplugged from the power source. Raise the needle to its highest position.
- Access the Bobbin Area: Open the bobbin case cover or access panel on your sewing machine. Refer to your machine's specific manual for exact instructions on accessing the shuttle hook area.
- Remove the Old Shuttle Hook (if applicable): Carefully remove the existing shuttle hook. There may be retaining clips or screws that need to be loosened or removed. Note the orientation of the old hook for correct installation of the new one.
- Hichaa Mpaghara: Use a brush or compressed air to clean any lint, dust, or thread debris from the bobbin case area and the shuttle race. A clean environment is crucial for optimal performance.
- Install the New Shuttle Hook: Position the new SH-311(A) Shuttle Hook into the shuttle race. Ensure it sits correctly and rotates freely without obstruction. The central post should align with its designated slot.
- Secure the Shuttle Hook: If there were retaining clips or screws, re-secure them to hold the shuttle hook firmly in place. Do not overtighten.
- Nlegharị ule: Manually turn the machine's handwheel slowly to observe the shuttle hook's rotation. It should move smoothly and without binding.
- Gbakọtaghachi: Close the bobbin case cover or access panel.
- Perform a Test Stitch: Plug in the machine and perform a few test stitches on scrap fabric to verify proper function and stitch quality.
5. Atụmatụ ọrụ
Once installed, the shuttle hook operates as an integral part of your sewing machine's stitch formation mechanism. No direct user operation of the shuttle hook itself is required beyond proper installation and maintenance. Ensure that the bobbin is correctly wound and inserted into the bobbin case, and that the machine is threaded according to your sewing machine's manual.
6. Nlekọta
Regular maintenance of the shuttle hook and surrounding area is essential for consistent sewing performance and to extend the life of your machine.
- Nhicha: Periodically, and especially after extended use or when changing thread types, remove the bobbin case and shuttle hook (if easily accessible) to clean out lint and thread fragments. Use a small brush or lint remover.
- mmanu mmanu: Refer to your sewing machine's manual for specific lubrication requirements for the shuttle race area. Some machines require a drop of sewing machine oil in designated spots around the shuttle hook. Use only high-quality sewing machine oil.
- Nyocha: Regularly inspect the shuttle hook for any signs of wear, nicks, or burrs that could snag thread. A damaged shuttle hook can cause skipped stitches, thread breakage, or damage to the fabric. Replace if damage is observed.
7. Nchọpụta nsogbu
If you encounter issues after installing the new shuttle hook, consider the following common problems and solutions:
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Stitches mafere | Incorrect shuttle hook timing, damaged needle, incorrect needle size, or burrs on the hook. | Check needle installation and condition. Ensure shuttle hook is correctly seated. Consult a technician for timing adjustments if necessary. Inspect hook for damage. |
| Thread Breakage (Bobbin Thread) | Rough spots or burrs on the shuttle hook, incorrect bobbin tension, or poor quality thread. | Inspect the shuttle hook for any sharp edges and replace if damaged. Adjust bobbin tension. Use high-quality thread. |
| Noisy Operation from Bobbin Area | Lack of lubrication, lint accumulation, or improper installation of the shuttle hook. | Clean and lubricate the shuttle race area. Re-install the shuttle hook, ensuring it is seated correctly. |
If problems persist after following these troubleshooting steps, it is recommended to contact a professional sewing machine technician.
8. Nkọwapụta
- Ụdị: SH-311(A)
- Ihe: Aluminom
- ndakọrịta: Brother BAS-304, BAS-310, BAS-311, BAS-314, BAS-326, BAS-341 Pattern Sewing Machines; Brother TC-310(A), TC-310(B) Pattern Sewing Machines
- Akụkụ ngwaahịa: Ihe dịka 1 x 1 x 1 cm
- Ibu ihe: Ihe dịka 50 g
- Onye nrụpụta: GENERIC
9. Nkwado
For further assistance or inquiries regarding the GENERIC SH-311(A) Shuttle Hook, please refer to your original sewing machine's manual or contact the manufacturer of your sewing machine for specific technical support related to part compatibility and installation within your machine model.
