BILT HARD 10000 LBS Two Post Clearfloor Automotive Vehicle Lift User Manual

Okwu mmalite

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your BILT HARD 10000 LBS Two Post Clearfloor Automotive Vehicle Lift. Please read this manual thoroughly before installation and use to ensure proper function and safety.

The BILT HARD 10000 LBS Two Post Clearfloor Automotive Vehicle Lift is designed for lifting vehicles up to 10,000 pounds, providing clear under-vehicle access for maintenance and repairs. It features a robust hydraulic system and a fixed top beam for stability.

Ozi nchekwa

ỊDỌ AKA NA NTỊ: Ọ bụrụ na ịgbaso ntuziaka nchekwa ndị a nwere ike ibute nnukwu mmerụ ahụ ma ọ bụ ọnwụ.

• Ensure the lift is installed on a level, solid concrete foundation capable of supporting the lift's weight and maximum load.
• Naanị ndị ọrụ tozuru etozu kwesịrị ịwụnye, rụọ ọrụ ma dokwaa ngwa a.
• Always wear appropriate personal protective equipment (PPE) including safety glasses and steel-toed boots.
• Never exceed the maximum rated load capacity of 10,000 lbs (4.5 tons).
• Before lifting, ensure the vehicle is centered and stable on the lift arms. Use proper lifting points as specified by the vehicle manufacturer.
• Always engage the safety locks before working under a lifted vehicle.
• Debe aka na ụkwụ pụọ na akụkụ ndị na-akpụ akpụ mgbe ị na-arụ ọrụ.
• Do not operate the lift if any part is damaged or malfunctioning.
• Ensure adequate clearance around the lift for safe operation and vehicle movement.

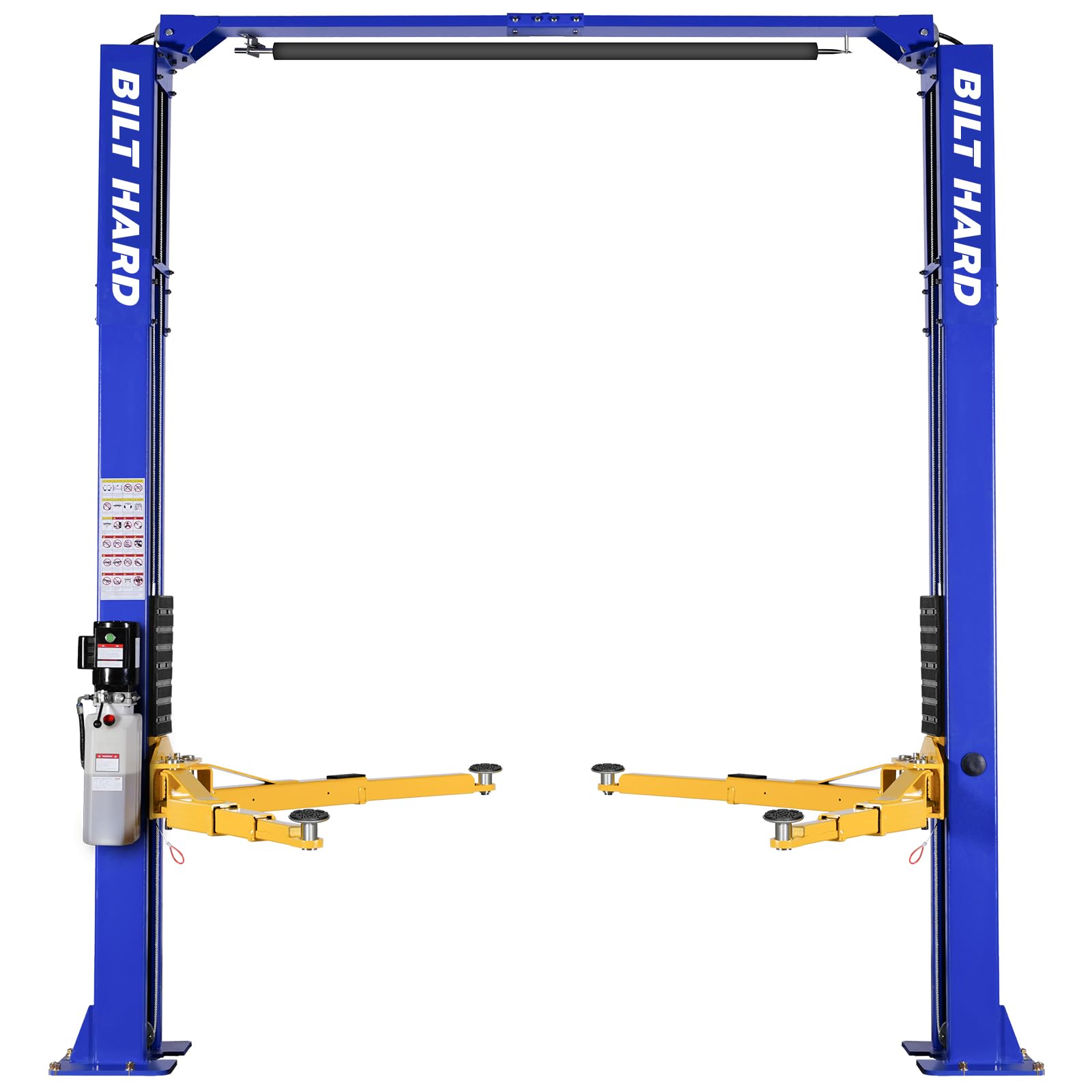

Image: The lift features advanced safety sensors to prevent over-lifting, drops, and uneven lowering, enhancing operational safety.

Ntọala na nwụnye

Proper installation is critical for the safe and reliable operation of your BILT HARD Two Post Car Lift. It is recommended that installation be performed by experienced professionals.

Chọrọ saịtị

• Ntọala: A level concrete slab, minimum 6 inches thick, with a minimum compressive strength of 3000 PSI.
• Mwepu n'elu: Ensure sufficient overhead clearance for the lift's maximum height and the vehicles being lifted. The lift has an overall height of 146.46 inches.
• Nnye ọkụ eletrik: A dedicated 220V, 60HZ, 1-phase power supply with a 3HP motor.

Nzọụkwụ Mgbakọ (General Overview)

1. Wepu ihe niile ma chọpụta megide ndepụta nkwakọ ngwaahịa.
2. Position the columns according to the specified dimensions, ensuring the fixed top beam can be securely installed. The overall width is 137.64 inches, with a drive-through width of 103.07 inches.
3. Anchor the columns to the concrete floor using appropriate anchor bolts.
4. Install the overhead beam, ensuring all cables and hydraulic lines are routed correctly.
5. Connect the hydraulic power unit and fill with recommended hydraulic fluid.
6. Install the lift arms and ensure they move freely and engage the safety locks properly.
7. Perform initial system checks and bleed the hydraulic system as per detailed instructions provided in the full manual.

Image: Detailed dimensions of the BILT HARD Two Post Car Lift, showing overall width, height, and drive-through clearance.

Foto: nso nso view of a lift arm with an adjustable pad, designed to safely support vehicle undercarriages.

Ntuziaka ọrụ

Follow these steps for safe and effective operation of your BILT HARD Two Post Car Lift.

Lifting a Vehicle

1. Kwadebe ụgbọ ala: Drive the vehicle onto the lift, ensuring it is centered between the columns. The lift's clear-floor design allows for easy positioning.
2. Position Lift Arms: Swing the lift arms into position under the vehicle's designated lifting points. Adjust the pads to make firm contact with the vehicle's frame or pinch welds. Ensure the automatic arm restraints engage.
3. Initial Lift: Press the "UP" button on the power unit to slowly raise the vehicle a few inches off the ground.
4. Lelee nkwụsi ike: Carefully check that the vehicle is stable and securely supported on all four pads. If not, lower the vehicle and reposition the arms.
5. Raise to Desired Height: Continue to raise the vehicle to the desired working height. The lift has a lifting height range of 3.9 to 71.7 inches.
6. Engage Safety Locks: Once at the desired height, lower the vehicle slightly until the safety locks engage. This transfers the load from the hydraulic system to the mechanical locks, ensuring safety. The lift features a 2-point safety lock release system.

Iwetu ụgbọ ala

1. Kpochapụ Mpaghara: Ensure no tools, personnel, or obstructions are under or around the vehicle.
2. Welie ntakịrị: Press the "UP" button to slightly raise the vehicle, disengaging the safety locks.
3. Release Safety Locks: Activate the single-point safety lock release mechanism.
4. Ụgbọ ala ala: Press the "DOWN" lever or button to slowly lower the vehicle to the ground. Monitor the vehicle's descent.
5. Remove Arms: Once the vehicle is fully on the ground, swing the lift arms clear before driving the vehicle off the lift.

Image: A white minivan safely lifted by the BILT HARD Two Post Car Lift, demonstrating its capacity for larger vehicles.

Image: A black sedan lifted by the BILT HARD Two Post Car Lift, showcasing the lift's versatility for various vehicle types.

Nlekọta

Regular maintenance is essential to ensure the longevity and safe operation of your BILT HARD Two Post Car Lift.

Nyocha kwa ụbọchị

• Inspect all cables and chains for wear, fraying, or damage.
• Check hydraulic hoses for leaks or damage.
• Verify that safety locks engage and disengage properly.
• Ensure lift arm restraints are functioning correctly.

Nyocha kwa izu

• Check hydraulic fluid level and top off if necessary. Use recommended hydraulic fluid.
• Lubricate all pivot points, rollers, and sliding surfaces with appropriate grease.
• Inspect anchor bolts for tightness.

Nyocha ọnwa

• Inspect all electrical connections for corrosion or damage.
• Check for proper synchronization of lifting carriages.
• Clean the power unit and surrounding area.

Always refer to the detailed maintenance schedule in the complete product manual for specific lubrication points and intervals.

Foto: nkọwa zuru ezu view of the hydraulic power unit and the robust chain drive system, key components requiring regular inspection and maintenance.

Nchọpụta nsogbu

This section provides solutions to common issues you might encounter with your BILT HARD Two Post Car Lift. For more complex problems, contact qualified service personnel.

Okwu na ngwọta nkịtị

Always disconnect power to the lift before attempting any repairs or maintenance.

Nkọwapụta

Key technical specifications for the BILT HARD 10000 LBS Two Post Clearfloor Automotive Vehicle Lift.

Akwụkwọ ikike na nkwado

For specific warranty details regarding your BILT HARD Two Post Car Lift, please refer to the warranty card included with your product or contact BILT HARD customer service directly. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.

For technical assistance, parts inquiries, or any operational questions not covered in this manual, please contact BILT HARD customer support. Have your model number (PLA) and purchase date available when contacting support.

Onye nrụpụta: O siri ike
