Generic Replacement Belt for NordicTrack C200 Treadmill

Okwu mmalite

This manual provides essential information for the proper installation, operation, and maintenance of your new replacement drive belt for the NordicTrack C200 Treadmill, Model NETL10814.0. Adhering to these instructions will help ensure the longevity and optimal performance of your treadmill.

Ozi nchekwa

Always prioritize safety when performing maintenance on your treadmill. Failure to follow safety precautions can result in injury or damage to the equipment.

• Kwụpụ ike: Before beginning any installation or maintenance, always unplug the treadmill from the power outlet.
• Gụọ ntuziaka: Familiarize yourself with all steps before proceeding.
• Jiri Ngwa Kwesịrị Ekwesị: Ensure you have the correct tools for the task.
• Chọọ enyemaka ndị ọkachamara: Ọ bụrụ na ịmaghị usoro ọ bụla, kpọtụrụ onye ọkachamara tozuru etozu.

Ntọala na nwụnye

This section outlines the steps for replacing the drive belt on your NordicTrack C200 Treadmill.

Ngwa achọrọ:

• Screwdriver (Phillips head and/or flathead, depending on treadmill casing)
• Wrench or socket set (for tensioning bolts, if applicable)
• Gloves (optional, for grip and protection)

Nzọụkwụ nwụnye:

1. Kwụpụ ike: Unplug the treadmill from the wall outlet.
2. Remove Motor Hood: Locate and remove the screws securing the motor hood (front cover) of your treadmill. Carefully lift and set aside the hood.
3. Locate Drive Belt: Identify the existing drive belt connecting the motor pulley to the front roller pulley.
4. Relieve Tension: If your treadmill has a tensioning mechanism for the drive belt, loosen it to allow for easier removal of the old belt. This may involve adjusting motor mounting bolts or a dedicated tensioner.
5. Wepu eriri ochie: Carefully slide the old belt off the pulleys. Note its orientation for reference.
6. Wụnye eriri ọhụrụ: Place the new replacement belt onto the smaller motor pulley first, then stretch and guide it onto the larger front roller pulley. Ensure the ribs on the belt align correctly with the grooves on both pulleys.

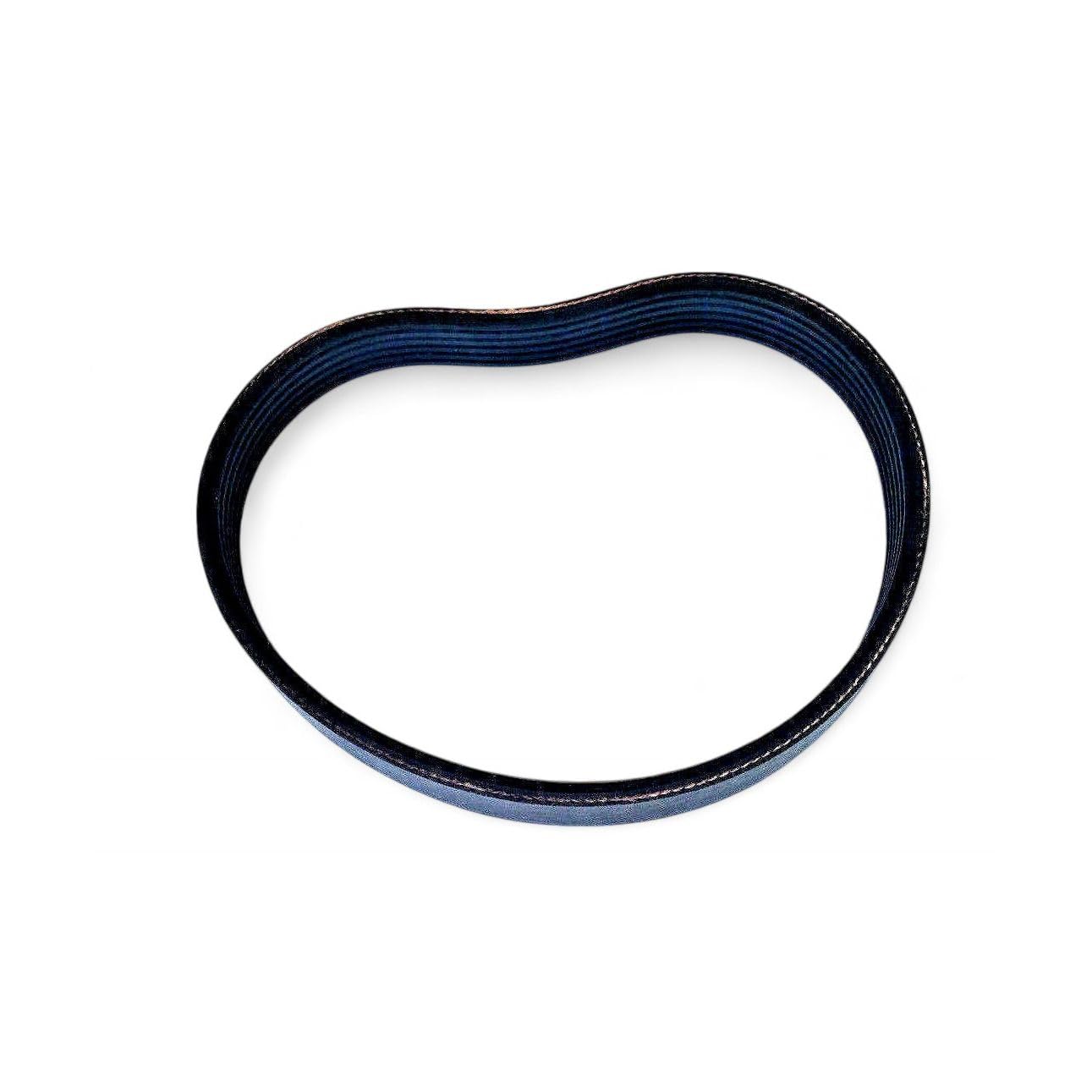

7. Image: Replacement Drive Belt


   Image showing the replacement drive belt, a continuous loop of durable material with multiple ribs on the inner surface, designed for power transmission in treadmills.
8. Mgbatị ahụ: Adjust the tensioning mechanism (if applicable) or motor mounting bolts to achieve proper belt tension. The belt should be taut but allow for a small amount of deflection (approximately 1/2 inch) when pressed firmly in the middle. Akwụsịla elu.
9. Replace Motor Hood: Reinstall the motor hood and secure it with the screws removed earlier.
10. Ọrụ nnwale: Plug the treadmill back into the power outlet and perform a brief test run at a low speed to ensure the belt operates smoothly without slippage or unusual noise.

Atụmatụ ọrụ

Once installed, the replacement drive belt functions as an integral part of your treadmill's power transmission system. Proper installation ensures efficient and quiet operation.

• Smooth Power Transfer: The belt is designed to transfer power from the motor to the walking deck roller, enabling the belt to move.
• Minimize Slippage: Correct tension is crucial to prevent slippage, which can lead to inconsistent speeds and premature wear.
• Mbelata mkpọtụ: A properly installed and tensioned belt should operate quietly. Excessive noise may indicate improper tension or alignment.

Nlekọta

Regular inspection and maintenance of the drive belt can extend its lifespan and ensure consistent treadmill performance.

• Nyocha oge: Every 3-6 months, or after significant use, remove the motor hood (following safety precautions) and visually inspect the drive belt for signs of wear, cracking, fraying, or glazing.
• Ịdị ọcha: Keep the area around the drive belt and pulleys free from dust, debris, and lint, which can accumulate and affect belt performance. Use a dry cloth or vacuum to clean.
• Nyochaa nrụgide: Periodically check the belt tension. If the belt feels loose or you notice slippage during operation, adjust the tension as described in the installation section.
• Ndochi: Replace the belt if you observe significant wear, deep cracks, or if it consistently slips despite proper tensioning.

Nchọpụta nsogbu

Nkọwapụta

• Ngwaahịa: Belt Draịvụ Nnọchi
• ndakọrịta: NordicTrack C200 Treadmill, Model NETL10814.0
• Ihe: Heat- and wear-resistant rubber
• Onye nrụpụta: Aedge
• ASIN: B0FP5LG1HB
• Ụbọchị mbụ dị: Ọgọst 29, 2025

Akwụkwọ ikike na nkwado

For specific warranty information regarding this replacement belt, please refer to the product listing or contact the seller directly. For technical support or further assistance, please reach out to the manufacturer or the point of purchase.
