GTRUI 10.1 Inch QLED Android Car Stereo User Manual

1. Okwu mmalite

This manual provides detailed instructions for the installation, operation, and maintenance of your GTRUI 10.1 Inch QLED Android Car Stereo. This unit is designed to enhance your in-car entertainment and navigation experience with advanced features such as Wireless Apple CarPlay, Android Auto, GPS, Bluetooth 5.0, and a high-resolution QLED touch screen. Please read this manual thoroughly before installation and use to ensure proper functionality and safety.

2. Ndakọrịta ụgbọ ala

This car stereo is specifically designed for the following vehicle models and years:

• Jeep Wrangler/Unlimited: 2007-2018
• Jeep Compass: 2009-2016
• Jeep Patriot: 2009-2016
• Jeep Grand Cherokee: 2005-2011
• Jeep Commander: 2008-2011
• Chrysler Sebring: 2007-2010
• Chrysler Town&Country: 2007-2010
• Dodge Grand Caravan: 2011-2014
• Dodge Charger: 2008-2010
• Dodge Ram 1500/2500/3500: 2009-2012

The unit supports existing steering wheel controls for these compatible models.

3. Ihe ngwugwu

Biko chọpụta na agụnyere ihe niile edepụtara n'okpuru na ngwugwu gị:

This diagram displays the complete package contents, including the 10.1-inch head unit, various cables, antennas, and accessories.

• 10.1 Inch QLED Android Car Stereo Head Unit
• Power Cable & CANBus
• Ihe nkwụnye redio antenna
• Igwe okwu
• AHD 1080P Camera (for reverse view)
• 4G SIM Slot & RCA Cables
• Reversing Control Cable
• Antenna GPS
• eriri USB
• Akwụkwọ ntuziaka onye ọrụ
• 4G antenna

4. Ntọala na nwụnye

Installation of the GTRUI car stereo is designed to be a 'Plug and Play' process, retaining the original wiring harness of your vehicle. Professional installation is recommended to ensure correct wiring and functionality.

4.1 Nwụnye gafereview

This image illustrates the transformation of the vehicle's dashboard, replacing the factory radio with the GTRUI 10.1-inch QLED Android Car Stereo. It highlights the 'Plug and Play' installation, indicating that the original wiring harness is retained for an undamaged setup.

1. Nkwadebe: Kwụpụ batrị ụgbọala ahụ tupu ịmalite ọrụ eletriki ọ bụla.
2. Wepu nkeji ochie: Carefully remove the existing factory radio from your dashboard.
3. Jikọọ Wiring: Connect the provided power cable, CANBus, radio antenna adapter, and other necessary cables to the corresponding ports on the new head unit and your vehicle's wiring harness. Ensure all connections are secure.
4. Wụnye Antenna: Connect the GPS antenna and 4G antenna to the designated ports on the head unit. Position them in a location with clear signal reception, typically on the dashboard or under the windshield.
5. Install Microphone: Connect the external microphone for optimal call quality. Position it near the driver for clear voice capture.
6. Install Reverse Camera: If using the included AHD 1080P camera, route the camera cable from the rear of the vehicle to the head unit and connect it to the 'Reversing Control Cable' input. Ensure the camera is mounted securely and provides a clear view.
7. Mount Head Unit: Carefully slide the GTRUI head unit into the dashboard opening, securing it with the appropriate mounting brackets.
8. Jikọọ batrị: Jikọọ batrị ụgbọ ala.
9. Agbanye ike mbụ: Turn on your vehicle's ignition to power on the stereo. Follow any on-screen prompts for initial setup.

4.2 Njikọta Njikwa wiilụ Ihu Igwe

The unit is designed to integrate with your vehicle's existing steering wheel controls. This allows you to manage audio, calls, and other functions without taking your hands off the wheel. No additional setup is typically required for compatible vehicles as it's a plug-and-play feature.

This image demonstrates the compatibility of the GTRUI car stereo with existing steering wheel controls. It shows various functions such as volume adjustment, track skipping, mute, power, call answer/reject, navigation, and mode selection, indicating a seamless integration with the vehicle's factory features.

5. Ntuziaka ọrụ

5.1 QLED Display and Touch Screen

The 10.1-inch QLED display features a 1280x720 resolution and Glass+Glass full lamination technology, providing a bright, clear, and responsive touch interface. Navigate through menus and applications by tapping, swiping, and pinching on the screen.

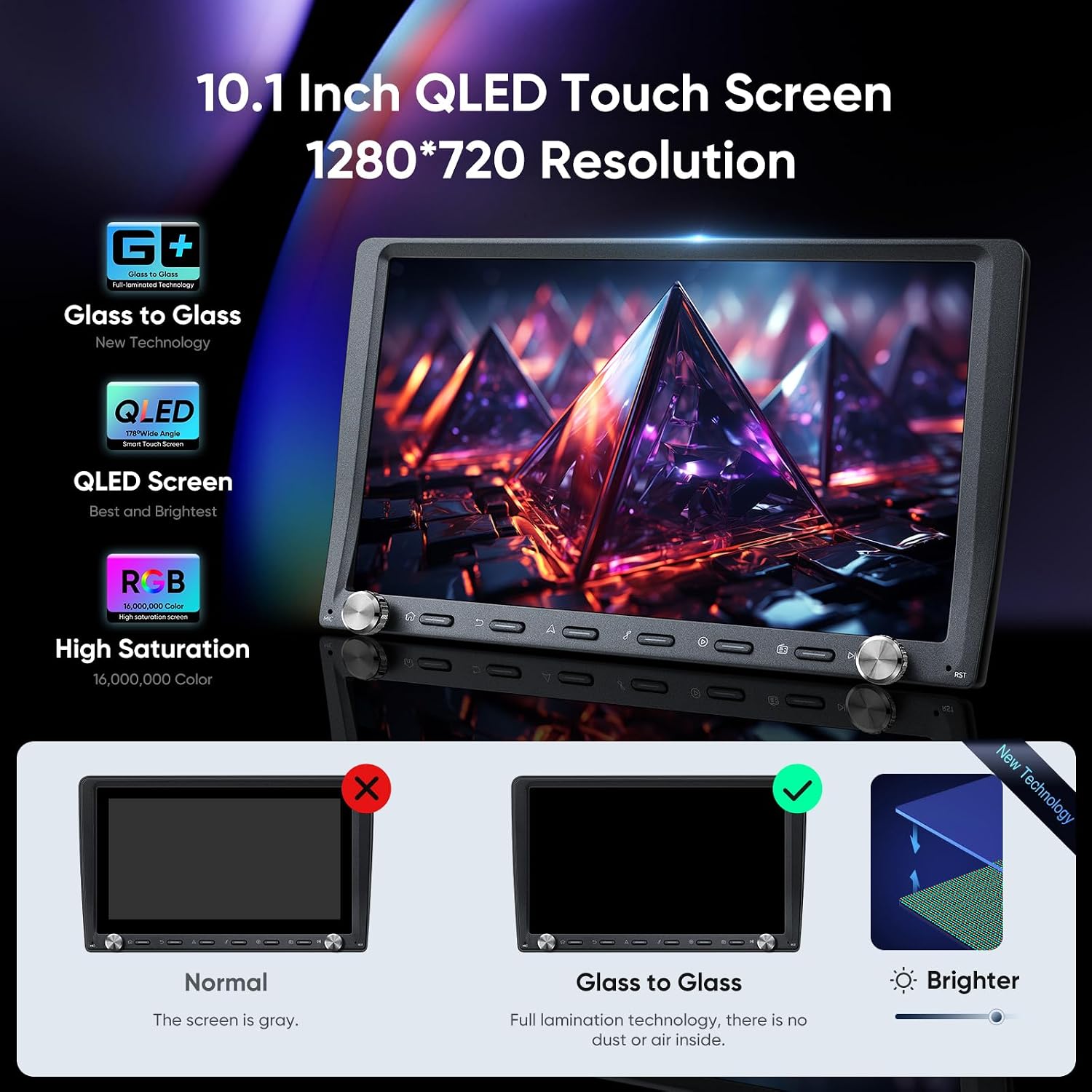

This visual details the advanced display technology of the GTRUI car stereo. It explains the 10.1-inch QLED touch screen with 1280x720 resolution, Glass+Glass full lamination technology for a brighter display without air gaps, and 16 million colors for high saturation.

5.2 Android 12 Sistemụ arụmọrụ

The unit runs on Android 12, powered by an 8-core Cortex A55 processor with 2GB RAM and 32GB ROM. This configuration ensures a fast and smooth user experience, allowing for responsive multitasking and ample storage for apps and media.

This image provides a visual representation of the internal hardware, detailing the 8-core Cortex A55 processor, 2GB RAM, and 32GB ROM. These specifications ensure a faster and smoother operating experience, enabling responsive multitasking and ample nchekwa.

5.3 Apple CarPlay na Android Auto enweghị eriri

Connect your smartphone wirelessly to access Apple CarPlay or Android Auto. This allows for safe use of phone features like navigation, calls, messages, and music through the car stereo's interface or voice commands.

• Nkwalite: Ensure Bluetooth and Wi-Fi are enabled on your smartphone. Follow the on-screen instructions on the car stereo to pair your device.
• Iwu olu: Use "Hey Siri" or "OK Google" to control functions hands-free.
• Mara: Some smartphones may require a wired connection for Android Auto.

This image showcases the Wireless Apple CarPlay and Android Auto functionalities. It displays the familiar app layouts for navigation, music, and communication, emphasizing the convenience of integrating smartphone features directly onto the car stereo's large QLED screen.

5.4 GPS igodo

The unit features built-in GPS navigation. It supports various navigation applications such as Sygic, iGo, Waze, and Google Maps. Ensure the GPS antenna is properly installed for accurate positioning.

• Mmelite map: Connect to Wi-Fi to download and update maps as needed.
• Route Planning: Enter your destination to receive turn-by-turn directions and real-time traffic information.

5.5 AM/FM Radio & AKM DSP Stereo

Access local radio stations with the built-in RDS radio receiver, which supports AF (Automatic Frequency Adjustment) and TA (Traffic Announcement). The AKM DSP stereo, with a 4x50W amplifier, offers a customizable audio experience through a 48-band graphic equalizer and 8 EQ modes.

This image highlights the audio capabilities of the car stereo, featuring an AKM DSP for a realistic audio experience, 4x50W maximum output power, and a 48-band graphic equalizer with 8 EQ modes for personalized sound tuning.

5.6 Bluetooth 5.0

Bluetooth 5.0 connectivity allows for hands-free calling, Bluetooth music streaming, and contact synchronization. Pair your phone via the Bluetooth settings menu on the stereo.

This image details the Bluetooth 5.0 functionality, powered by a Realtek 8761 Chipset. It enables hands-free calling, synchronization of contacts, and high-quality Bluetooth music streaming for a connected driving experience.

5.7 Dual Knob Control

The unit features dual physical knobs for convenient control of volume and menu navigation. The left knob typically controls volume (press to mute), while the right knob can be assigned to various functions or used for scrolling.

Ọrụ ihuenyo gbawara 5.8

Utilize the split-screen feature to run two applications simultaneously on the display. For example, you can have navigation on one side and music playback on the other.

This image illustrates the split-screen function, allowing users to display and operate two applications concurrently on the 10.1-inch screen. An example shows a video player on one side and a navigation map on the other, enhancing multitasking capabilities.

5.9 AHD Backup Camera Support

The included AHD 1080P backup camera provides a clear view of the area behind your vehicle when reversing, enhancing safety and assisting with parking. The display automatically switches to the camera feed when the vehicle is put into reverse gear.

This image highlights the support for an AHD 1080P reverse view camera, which is included in the box. It shows the camera's perspective on the stereo screen with dynamic parking guidelines, contributing to enhanced safety and easier parking.

5.10 Quick Boot Time

The system features a 1-second quick boot time, allowing for rapid startup and immediate access to functions after the vehicle is started.

This image emphasizes the rapid 1-second boot time feature, allowing the head unit to power on quickly after a setting is made, ensuring immediate access to functions upon starting the vehicle.

6. Nlekọta

• Nchacha ihuenyo: Use a soft, lint-free cloth to gently wipe the QLED screen. For stubborn smudges, slightly dampJiri mmiri ma ọ bụ ihe nhicha dị mma kpuchie ákwà ahụ. Zere kemịkalụ siri ike ma ọ bụ ihe ndị na-emebi emebi.
• Nchacha izugbe: Debe unit ahụ pụọ na uzuzu na irighiri ihe. Jiri ahịhịa dị nro ma ọ bụ ikuku abịakọrọ ihicha gburugburu bọtịnụ na ọdụ ụgbọ mmiri.
• Mmelite ngwanrọ: Periodically check for software updates via the system settings to ensure optimal performance and access to new features. Connect to a stable Wi-Fi network for updates.
• Zere oke okpomọkụ: Do not expose the unit to extreme heat or cold, as this can affect its performance and lifespan.

7. Nchọpụta nsogbu

If you encounter issues with your GTRUI car stereo, refer to the following common problems and solutions:

If these solutions do not resolve the issue, please contact GTRUI customer support for further assistance.

8. Nka na ụzụ nkọwa

9. Akwụkwọ ikike & Nkwado

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official GTRUI website. If you encounter any issues not covered in this manual, or require technical assistance, please contact GTRUI customer service. Ensure you have your product model number (B0FDK8M8HD) and purchase details available when contacting support.
