1. Okwu mmalite
Thank you for choosing the Ströme Cooler 12 Portable Air Conditioner. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your unit. Please read it thoroughly before use and retain it for future reference.
Image: The Ströme Cooler 12 Portable Air Conditioner positioned in a living room, demonstrating its compact design and exhaust hose setup.
2. Ozi nchekwa
Na-agbaso ihe ndị a dị mkpa mgbe niile iji belata ihe egwu nke ọkụ, ọkụ eletrik, ma ọ bụ mmerụ ahụ.
- Gbaa mbọ hụ na ọkọnọ ike dabara na voltage akọwapụtara na akara ọkwa nke otu ahụ.
- Ejila eriri ma ọ bụ plọg mebiri emebi rụọ ọrụ ahụ.
- Debe oghere ikuku na ọpụpụ ka ọ bụrụ ihe mgbochi.
- Etinyekwala ihe n'ime ikuku ikuku.
- Kwupu akụkụ ahụ tupu ihicha ma ọ bụ rụọ ọrụ.
- Ezubere ngwa a maka iji ndị mmadụ (gụnyere ụmụaka) nwere ike anụ ahụ, mmetụta uche ma ọ bụ nke uche, ma ọ bụ enweghị ahụmịhe na ihe ọmụma, ma ọ bụrụ na enyereghị ha nlekọta ma ọ bụ ntụziaka gbasara iji ngwa ahụ site n'aka onye na-ahụ maka nchekwa ha.
- Ekwesịrị ilekọta ụmụaka ka ha hụ na ha ejighi ngwa eji egwu egwu egwu.
3. Ngwaahịa gafereview
The Ströme Cooler 12 is a versatile portable air conditioner designed for rooms between 16-23 m². It offers cooling, dehumidification, and fan functions.
3.1 Isi ihe
- Main Unit with integrated wheels and carrying handles.
- Exhaust Hose for expelling warm air.
- Window Kit (adaptor and plate, not explicitly listed but implied by exhaust hose).
- Njikwa Ime Ime.
- Washable Air Filters.
- Control Panel with LCD display.

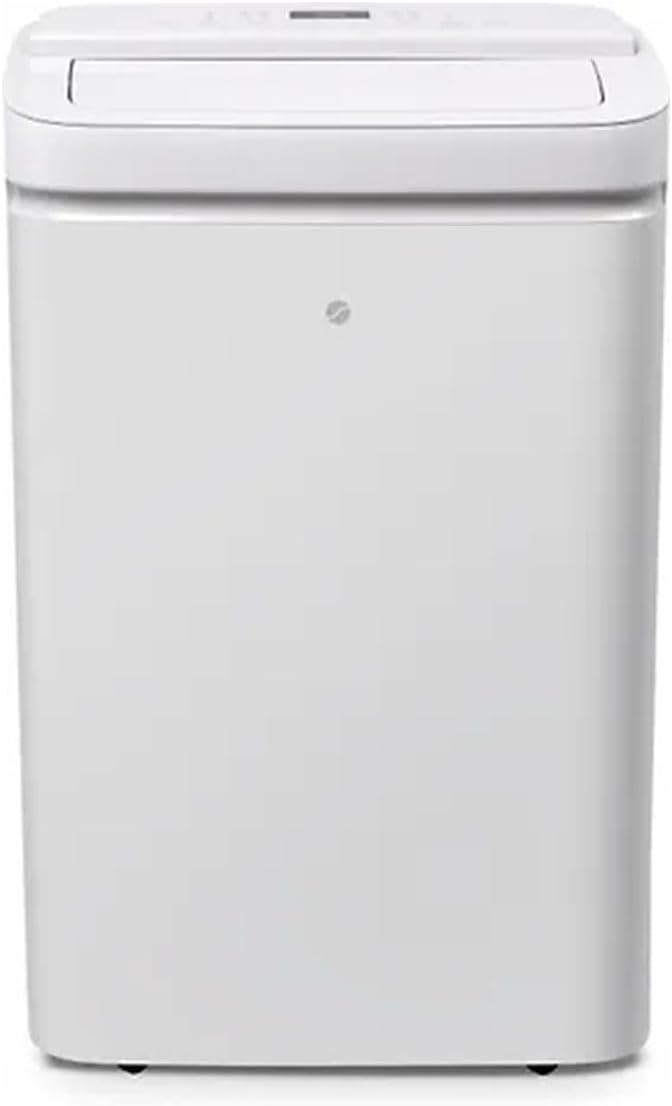

Foto: N'ihu view of the Ströme Cooler 12 unit, showcasing imewe ọcha ya mara mma.
Image: Close-up of the top control panel with an LCD display and various function buttons.

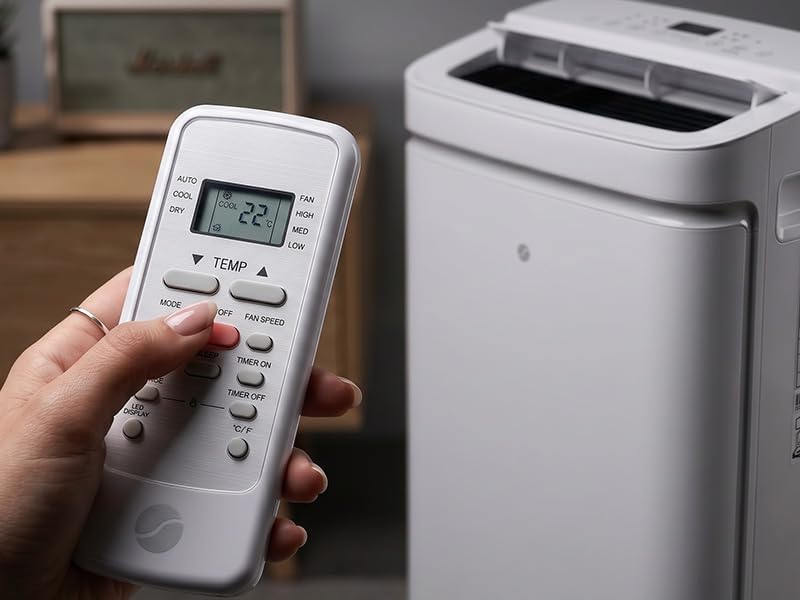

Image: The remote control for the Ströme Cooler 12, showing buttons for mode, temperature, fan speed, and timer.
4. Nhazi
Follow these steps for initial setup of your portable air conditioner.
- Iwepu: Carefully remove the unit from its packaging. Retain packaging for storage or transport.
- Ndokwa: Place the unit on a flat, stable surface. Ensure there is at least 30 cm (12 inches) of space around the unit for proper airflow. The integrated wheels allow for easy movement between rooms.
- Nwụnye Hose Exhaust:
- Attach the exhaust hose to the air outlet on the back of the unit.
- Extend the exhaust hose to the nearest window or opening.
- Secure the window kit adaptor to the end of the hose and install it in the window opening to seal off the gap and prevent warm air from re-entering the room.
Image: A person connecting the exhaust hose to a window opening, ensuring proper ventilation.
- Njikọ ike: Tinye eriri ọkụ n'ime oghere eletrik gbadoro ụkwụ.
5. Ntuziaka ọrụ
The Ströme Cooler 12 offers multiple operating modes and settings for optimal comfort.
5.1 Ogwe njikwa na njikwa anya
The unit can be operated using the control panel on top of the unit or the included remote control. The LCD display shows current settings.
Foto: Zuru ezu view of the control panel, highlighting the mode and fan speed buttons.
5.2 Ụdị arụ ọrụ
- Ụdị oyi: Select 'Cool' to activate the air conditioning function. Adjust the desired temperature using the temperature up/down buttons. The unit will cool the room to the set temperature.
- Ụdị ihicha mmiri: Select 'Dry' to remove excess moisture from the air. In this mode, the fan speed is typically fixed, and temperature cannot be adjusted.
- Fan Ọnọdụ: Select 'Fan' to circulate air without cooling. Choose from three fan speeds (Low, Medium, High).
5.3 Ọsọ fan
In Cooling and Fan modes, you can select from three fan speeds: Low, Medium, or High, to adjust airflow intensity.
5.4 Ọrụ ngụ oge
The 24-hour timer allows you to set the unit to turn on or off automatically after a specified period. Use the 'Timer On' or 'Timer Off' buttons on the remote control to set the desired duration.
5.5 Ọrụ Ịgbagharị
Activate the 'Swing' function to enable automatic oscillation of the air outlet louvers, distributing air evenly throughout the room.
6. Nlekọta
Regular maintenance ensures optimal performance and extends the lifespan of your Ströme Cooler 12.
6.1 Ihicha ihe nzacha ikuku
The washable filters should be cleaned regularly, typically every two weeks, depending on usage and air quality.
- Gbanyụọ: Kwupuo unit ahụ mgbe niile tupu ihicha ya.
- Wepu ihe nzacha: Locate and carefully remove the air filters from the back of the unit.
- Ihe nzacha dị ọcha: Jiri mmiri dị ṅara ṅara saa ihe nzacha ndị ahụ na ncha dị nro. Sachaa nke ọma.
- Ihe nzacha akọrọ: Allow the filters to air dry completely before reinserting them. Do not expose them to direct sunlight or heat.
- Reinstall Filters: Place the dry filters back into their original position.
Image: The rear of the Ströme Cooler 12, indicating the location of the exhaust port and the washable air filters.
6.2 Ihicha Unit Mpụga
Jiri nwayọ hichaa mpụta nke otu ahụ, damp akwa . Ejila kemịkalụ siri ike ma ọ bụ ihe mkpocha abrasive.
7. Nchọpụta nsogbu
If you encounter issues with your Ströme Cooler 12, refer to the following common problems and solutions.
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Unit anaghị agbanwuo | Enweghị ọkụ Agbanyeghi eriri ọkụ | Lelee oghere ọkụ Gbaa mbọ hụ na etinyere eriri ọkụ na nchekwa |
| Ezughi oke jụrụ oyi | Ihe nzacha ikuku ruru unyi Exhaust hose not properly installed Nha ụlọ buru oke ibu Windo/ụzọ mepere emepe | Ihe nzacha ikuku dị ọcha Ensure exhaust hose is sealed Verify room size is within 16-23 m² Mechie windo na ọnụ ụzọ niile |
| Unit na -eme mkpọtụ | Otu ọ bụghị n'elu ala dị larịị Ihe mgbochi na fan | Debe otu n'elu larịị Lelee ma wepụ ihe mgbochi ọ bụla |
| Mgbapu mmiri | Drain plug not properly sealed Water tank full (if applicable) | Ensure drain plug is secure Drain water tank as per manual (if applicable) |
8. Nkọwapụta
| Njirimara | Nkọwa |
|---|---|
| Ụdị | Ströme |
| Nọmba nlereanya | Igwe nju oyi 12 |
| Ike jụrụ oyi | 12,000 BTU (3.5 kW) |
| Nha ime ụlọ akwadoro | 16-23 m² |
| Ọrụ | Njụjụ, Ntupu ikuku, Fan |
| Ọsọ ndị fan | 3 (Ọ dị ala, Ọkara, Elu) |
| Ngụ oge | 24 - elekere |
| Ọkwa mkpọtụ | Oke 64dB |
| Agba | Ọcha |
| Ihe onwunwe | Plastic |
| ASIN | B0F7XMXYDJ |
Image: The energy efficiency label for the Ströme Cooler 12, detailing its performance metrics.
9. Akwụkwọ ikike na nkwado
For warranty information and customer support, please refer to the documentation included with your purchase or contact Ströme customer service. Keep your proof of purchase for warranty claims.
