Stryker 6506 Power-PRO XT Cot Battery (Model 6500-033-000 B11893) User Manual

1. Okwu mmalite

This manual provides essential information for the safe and effective use of the replacement battery for the Stryker 6506 Power-PRO XT Cot. This NiCd battery, model 6500-033-000 B11893, is designed to provide reliable power for emergency medical services equipment. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of the battery.

The battery pack features a ventless, sealed construction, making it suitable for demanding environments. Its design allows for quick and easy replacement within an ambulance vehicle.

2. Ozi nchekwa

Always observe the following safety precautions when handling, installing, or charging the battery:

Emela disassemble, crush, puncture, or short-circuit the battery.
Emela expose the battery to extreme temperatures (above 60°C / 140°F or below -20°C / -4°F) or direct sunlight.
Emela mikpuo batrị ahụ n'ime mmiri ma ọ bụ mmiri mmiri ndị ọzọ.
Use only approved charging methods and equipment.
Debe batrị ahụ n'ebe ụmụaka nọ na anụ ụlọ.
If the battery shows signs of damage, leakage, or overheating, discontinue use immediately and dispose of it properly according to local regulations.
Gbaa mbọ hụ na ikuku ikuku dị mma mgbe ị na-ebufe.

3. Ihe ngwugwu

Chọpụta na ihe niile dị mgbe ị na-ebupụ:

1 x Stryker 6506 Power-PRO XT Cot Replacement Battery (Model 6500-033-000 B11893)

4. Ntọala & nwụnye

The battery pack is designed for quick and easy replacement in the Stryker 6506 Power-PRO XT Cot.

4.1 Ntinye batrị

Ensure the Stryker cot is powered off and disconnected from any external power sources before attempting battery replacement.
Locate the existing battery compartment on the Stryker 6506 Power-PRO XT Cot.
To remove the old battery pack, press the release mechanism (if present) and slide the old pack off. The design allows for a simple "click and slide off" action.
Align the new replacement battery pack (Model 6500-033-000 B11893) with the battery slot.
Slide the new battery pack into place until it clicks securely. Ensure it is fully seated and locked.
Power on the cot and verify that the battery is recognized and functioning correctly.

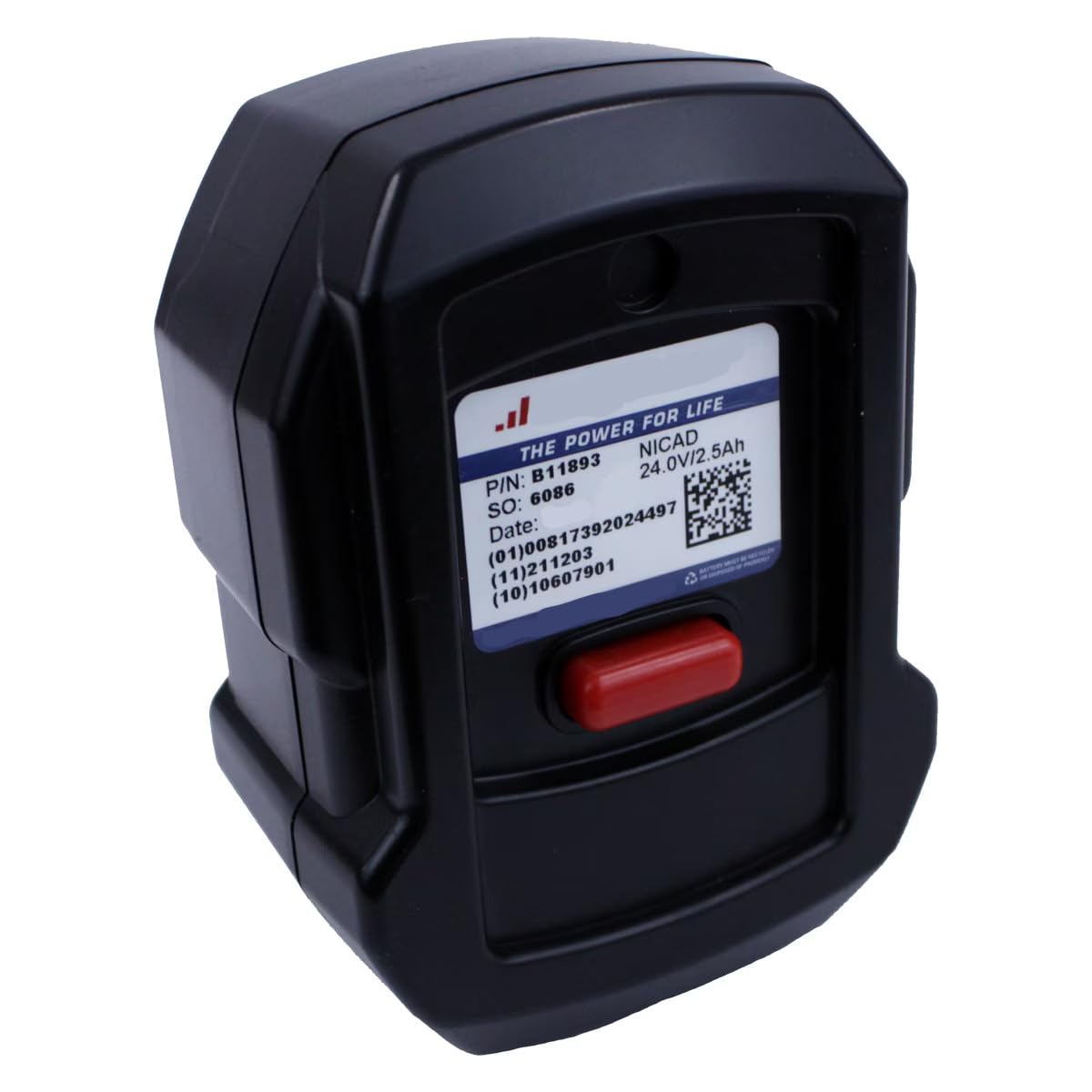

Stryker 6506 Power-PRO XT Cot Replacement Battery, Model 6500-033-000 B11893

Image showing the compact design of the replacement battery pack, ready for installation.

5. Ọrụ

5.1 Ịchaji batrị

The battery pack can be recharged using a wall outlet or directly within an ambulance vehicle's charging system. The charging process is designed to be user-friendly, requiring no complex protocols.

Oge nchaji: A fully depleted battery pack can be fully charged in approximately two (2) hours.
Ngosipụta chaja: Refer to your Stryker 6506 Power-PRO XT Cot's display or charging station indicators for charging status.

5.2 Batrị arụmọrụ

A fully charged battery pack is capable of powering 15 to 20 "calls" with patients weighing an average of 250 lbs. Actual performance may vary based on usage patterns, cot model, patient weight, and environmental conditions.

6. Nlekọta

Mmezi kwesịrị ekwesị na-eme ka batrị gị dị ogologo ndụ ma rụọ ọrụ nke ọma.

Ịchaji mgbe niile: Keep the battery charged. Avoid leaving the battery in a fully discharged state for extended periods.
Nhicha: Wipe the battery pack with a dry, clean cloth. Do not use harsh chemicals or abrasive cleaners. Ensure connectors are free of dirt and debris.
Nchekwa: If storing the battery for an extended period, ensure it is partially charged (around 50%) and stored in a cool, dry place away from direct sunlight and extreme temperatures. Recharge every 3-6 months to prevent deep discharge.
Nyocha: Periodically inspect the battery for any signs of physical damage, swelling, or leakage. Replace immediately if any issues are observed.

7. Nchọpụta nsogbu

If you encounter issues with your battery, refer to the following common problems and solutions:

Nsogbu	Ihe nwere ike ime	Ngwọta
Batrị anaghị achaji	Improperly seated battery Chaja ma ọ bụ isi iyi ike adịghị mma Batrị mebiri emebi	Gbaa mbọ hụ na batrị edoola ya nke ọma wee pịa ya n'ebe. Check charger connection and try a different power outlet/charger. Inspect battery for damage; replace if necessary.
Obere oge ọrụ	Anaghị chajịa batrị Batrị na-eru nso ọgwụgwụ nke ndụ High power consumption by cot	Ensure battery is charged for the full 2 hours. Consider replacing the battery if it's old or frequently used. Minimize unnecessary power usage on the cot.
Battery overheating during charge/use	Batrị ma ọ bụ chaja ezughị oke Igwe ikuku na-adịghị mma	Kwụsị iji ya na ịchaji ozugbo. Nkwado kọntaktị maka nnọchi. Ensure battery compartment has adequate airflow.

Ọ bụrụ na nsogbu ahụ dịgidere mgbe ị nwara azịza ndị a, biko kpọtụrụ nkwado ndị ahịa.

8. Nkọwapụta

Nọmba nlereanya	6500-033-000 B11893
Ụdị batrị	NiCd (Nickel-Cadmium)
Elu ọnụ Voltage	24.0V
Enyere ike	2.5 ah
Ihe owuwu	Ventless, Sealed
Oge Nchaji dị ka	2 hours (from fully discharged)
Onye nrụpụta	Unipower (Generic Brand)
Ndakọrịta	Stryker 6506 Power-PRO XT Cot

9. Akwụkwọ ikike & Nkwado

Maka ozi gbasara akwụkwọ ikike na nkwado ndị ahịa, biko lee akwụkwọ enyere gị mgbe ị zụtara ya ma ọ bụ kpọtụrụ onye na-ere ya ozugbo. Debe ihe akaebe nke ịzụrụ ya maka akwụkwọ ikike ọ bụla.

For technical assistance or questions regarding the Stryker 6506 Power-PRO XT Cot, please consult the cot's official user manual or contact Stryker customer service.
