Kohree 2-in-1 Adjustable Trailer Hitch Instruction Manual

Okwu mmalite

This manual provides detailed instructions for the safe and effective use of your Kohree 2-in-1 Adjustable Trailer Hitch. Please read this manual thoroughly before installation and operation to ensure proper usage and to prevent damage or injury. This adjustable hitch is designed for vehicles with a 2-inch receiver and offers dual ball sizes for versatile towing.

Ngwa ngwaahịa

The Kohree 2-in-1 Adjustable Trailer Hitch kit includes the following items:

• 1x Trailer Hitch (main adjustable shank and ball mount)
• 1x Hitch Tightener (anti-rattle clamp)

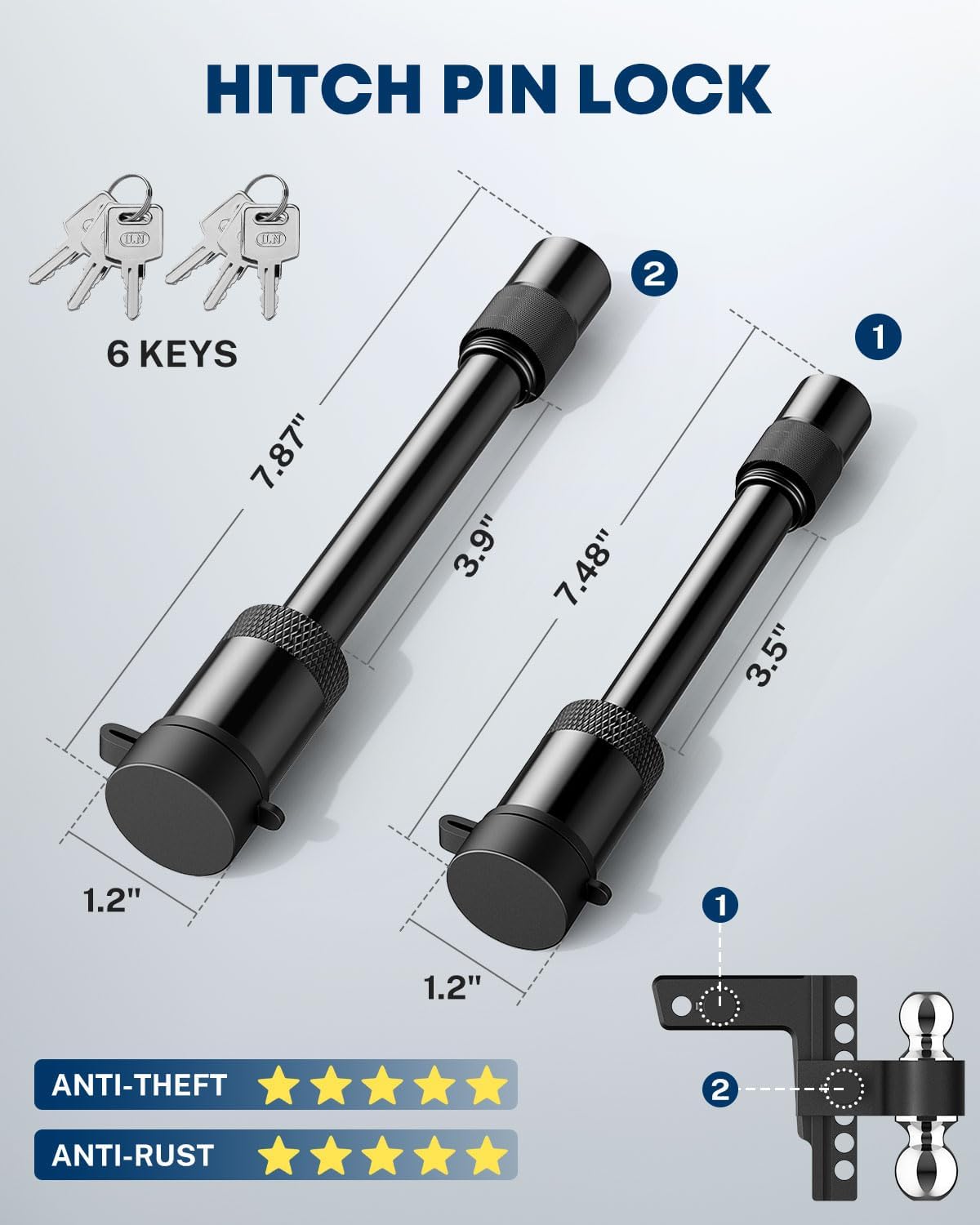

• 2x Hitch Pin Locks
• 6x Keys (for hitch pin locks)

Figure 1: All components included in the Kohree 2-in-1 Adjustable Trailer Hitch kit.

Nkọwapụta

Figure 2: Product dimensions and dual ball towing capacities.

Ntọala na nwụnye

Follow these steps to properly install your adjustable trailer hitch:

1. Tinye Shank ahụ: Slide the main adjustable shank into your vehicle's 2-inch receiver. Ensure it is fully inserted until the pin holes align.


Figure 3: Inserting the hitch shank into the receiver.

2. Secure the Shank: Insert one of the provided hitch pin locks through the aligned holes in the receiver and the hitch shank. Lock it securely with a key.
3. Attach the Ball Mount: Slide the dual ball mount onto the adjustable shank. Select the desired height for your trailer by aligning the pin holes. The hitch offers a maximum drop/rise of 6 inches.
4. Secure the Ball Mount: Insert the second hitch pin lock through the aligned holes of the ball mount and the shank. Lock it securely.

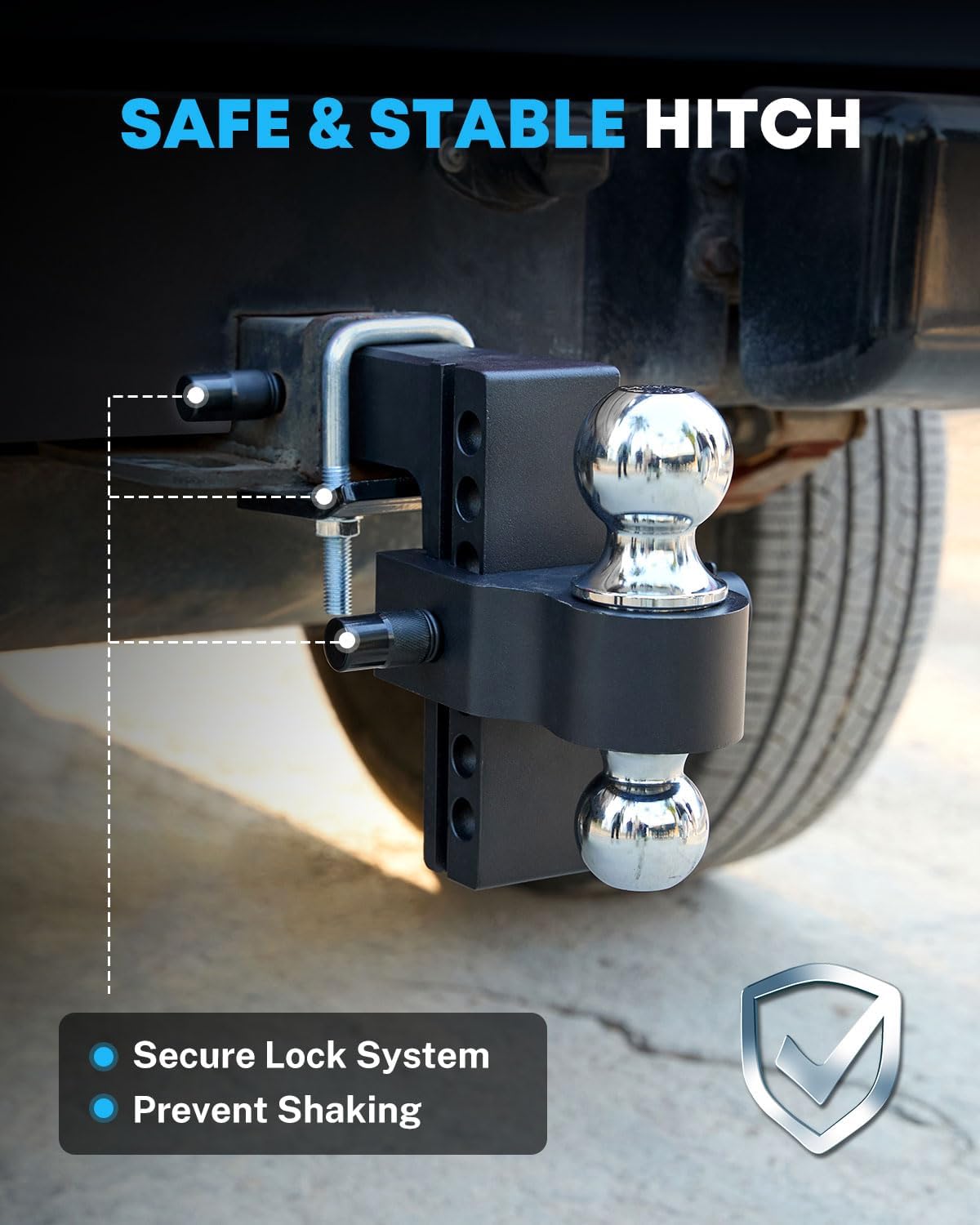

Figure 4: Hitch pin locks securing the assembly.

5. Install the Anti-Rattle Tightener: Position the hitch tightener (U-bolt and plate) around the receiver and the hitch shank. Tighten the nuts evenly to eliminate any play, rattle, or wobble between the hitch and the receiver.


Figure 5: Anti-rattle hitch clamp echichi.

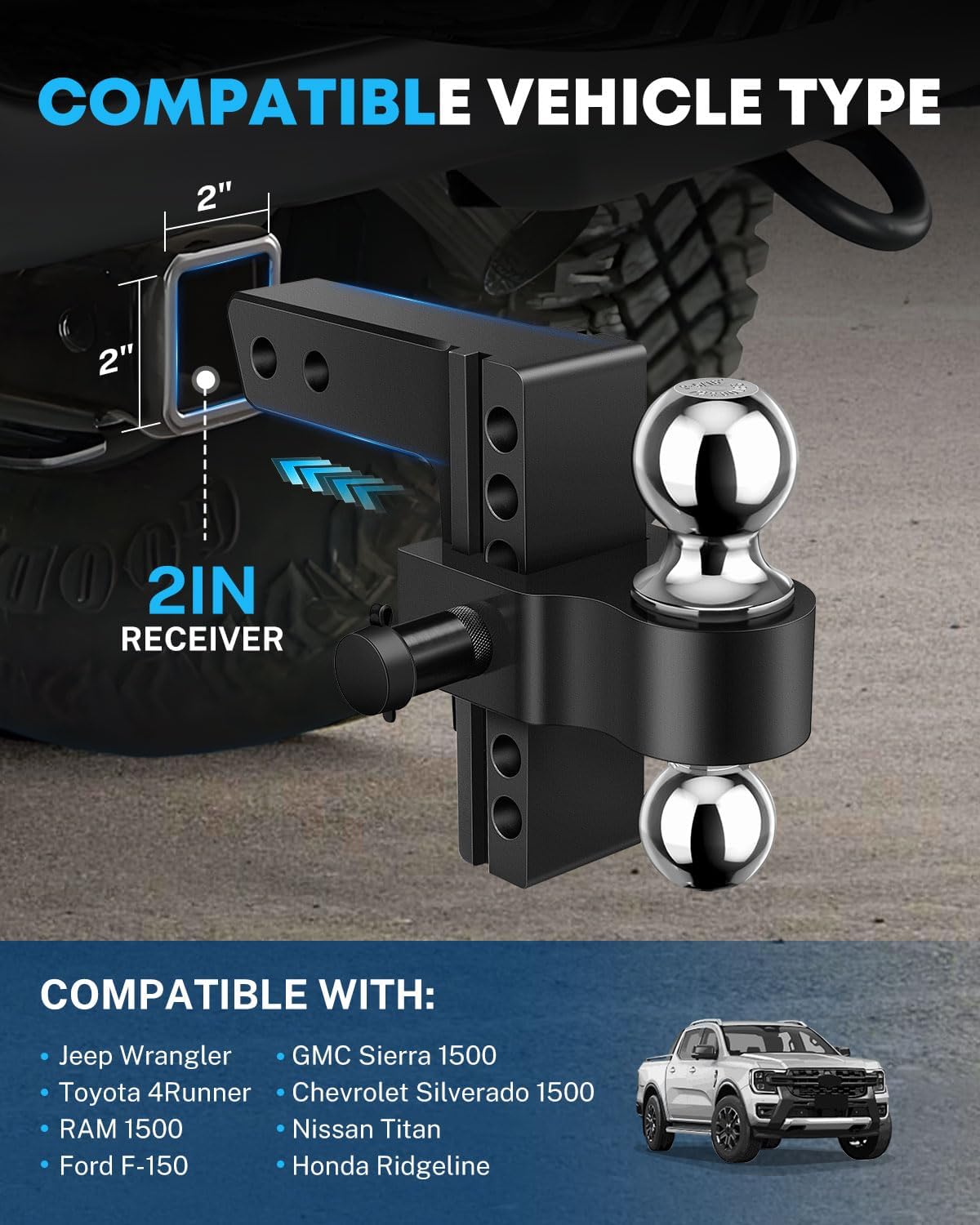

6. Nyochaa ndakọrịta: Ensure your vehicle is compatible with a 2-inch receiver. This hitch is suitable for various trucks, SUVs, and RVs.


Figure 6: Compatible vehicle types.

Ọrụ

The Kohree 2-in-1 Adjustable Trailer Hitch offers flexibility for various towing needs:

• Gbazi Elu: The hitch allows for quick height adjustments up to 6 inches drop or rise. To adjust, remove the hitch pin lock securing the ball mount to the shank, slide the ball mount to the desired height, and re-insert and lock the pin.
• Selecting Ball Size: The dual ball mount features a 2-5/16" ball (12,500 lbs GTW) and a 2" ball (8,000 lbs GTW). Choose the appropriate ball size based on your trailer's coupler and weight requirements. Ensure the trailer is properly seated and locked onto the chosen ball.
• Anti-Rattle System: The included hitch tightener is designed to minimize movement and noise between the hitch and the receiver during towing. Periodically check that the tightener is securely fastened.

Video 1: Installation and adjustment of the Kohree 6 Inch Trailer Hitch with Anti-Rattle Clamp.

Nlekọta

Regular maintenance ensures the longevity and safe operation of your trailer hitch:

• Nhicha: Clean the hitch components regularly with mild soap and water to remove dirt, salt, and road grime. Rinse thoroughly and dry.
• mmanu mmanu: Apply a light coat of grease to the hitch balls and the hitch pin locks periodically to prevent rust and ensure smooth operation.
• Nyocha: Before each use, inspect all components for signs of wear, damage, or corrosion. Check for loose bolts or pins. Replace any damaged parts immediately.
• Nchara mgbochi: The hitch features a rust-proof layer. However, prolonged exposure to harsh environments may still cause wear. Reapply a rust-inhibiting coating if necessary.

Nchọpụta nsogbu

Nke a bụ ngwọta maka nsogbu nkịtị ị nwere ike ihu:

• Hitch Rattle/Wobble: If you experience rattling or wobble, ensure the anti-rattle hitch tightener is correctly installed and tightened. Check that all hitch pins are fully inserted and locked.
• Stuck Hitch Pin Locks: If the hitch pin locks are difficult to turn or remove, apply a penetrating lubricant to the keyhole and mechanism. Allow it to soak, then try again. Regular lubrication can prevent this issue.
• Ihe isi ike imezi elu: Ensure the hitch pin is fully removed before attempting to slide the ball mount. Clean any debris from the adjustment holes and apply a light lubricant if needed.
• Ihe nnata dị nro: While the anti-rattle clamp addresses most play, if the hitch still feels excessively loose, verify that your vehicle's receiver is a standard 2-inch size and not worn.

Ozi nchekwa

Adhere to these safety guidelines when using your trailer hitch:

• Ike ibu: Never exceed the Gross Trailer Weight (GTW) or Tongue Weight (TW) ratings of your hitch, trailer, or tow vehicle. Always use the lower of the three ratings.
• Njikọ kwesịrị ekwesị: Always ensure the trailer coupler is fully seated and locked onto the hitch ball. Use safety chains as required by law and connect them properly.
• Nnyocha Tupu Njem: Before each trip, perform a thorough inspection of the hitch, trailer, and tow vehicle. Check all connections, lights, tires, and brakes.
• Ịkwọ ụgbọ ala n'enweghị nsogbu: Drive cautiously when towing. Allow for increased stopping distances, wider turns, and reduced acceleration. Avoid sudden maneuvers.
• Hitch Pin Locks: Always use the provided hitch pin locks to secure the hitch components and prevent theft or accidental detachment.

Akwụkwọ ikike na nkwado

Your Kohree 2-in-1 Adjustable Trailer Hitch comes with a Akwụkwọ ikike nrụpụta ụbọchị 180. For any questions, concerns, or support needs regarding your product, please contact the Kohree service team. They are available to provide professional advice and assistance.

For further assistance, please refer to the contact information provided with your purchase or visit the official Kohree websaịtị.
