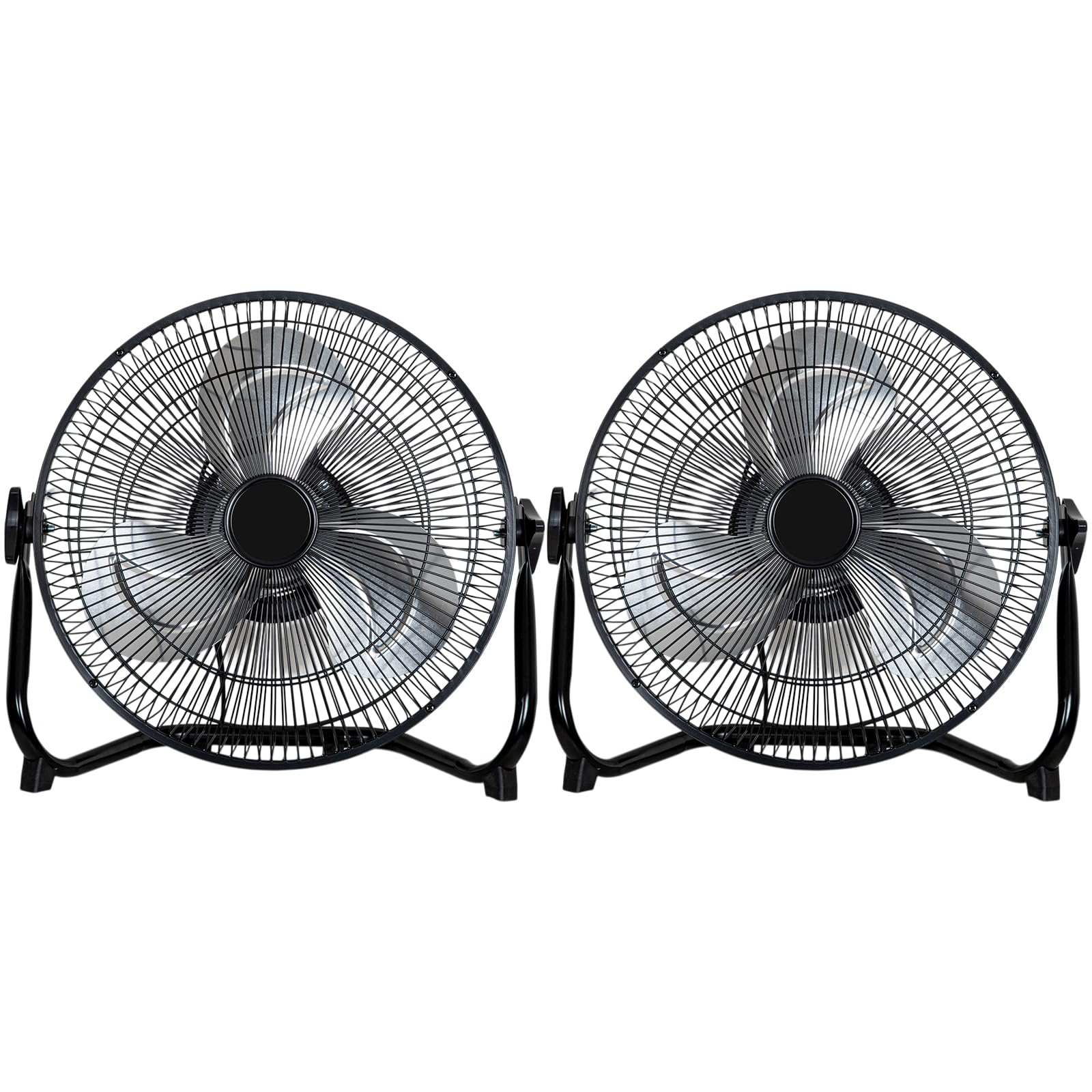

BILT HARD 12-inch 3-Speed High Velocity Floor Fan Instruction Manual

Okwu mmalite

Thank you for choosing the BILT HARD 12-inch 3-Speed High Velocity Floor Fan. This manual provides important information regarding the safe operation, assembly, maintenance, and troubleshooting of your new fan. Please read it thoroughly before use and retain it for future reference.

Ntuziaka nchekwa dị mkpa

Ịdọ aka ná ntị: Iji belata ihe egwu nke ọkụ, ọkụ eletrik, ma ọ bụ mmerụ ahụ n'ebe mmadụ nọ, hụ ihe ndị a:

• Gụọ ntuziaka niile tupu i jiri fan a.
• This product is UL certified for safety.
• Wepụ ihe mkpuchi ikuku ahụ mgbe niile tupu ị sachaa ma ọ bụ rụzie ihe ọ bụla.
• Ejila eriri ma ọ bụ plọg mebiri emebi rụọ ọrụ fan ọ bụla. Tufuo fan ma ọ bụ laghachi na ebe ọrụ enyere ikike maka nyocha na/ma ọ bụ nrụzi.
• Ejila eriri n'okpuru kapeeti. Ejila akwa akwa, ndị na-agba ọsọ, ma ọ bụ ihe mkpuchi yiri ya kpuchie eriri. Adịla eriri n'okpuru ngwá ụlọ ma ọ bụ ngwa. Hazie eriri pụọ na mpaghara okporo ụzọ yana ebe ọ na-agaghị akwụsị.
• Etinyela mkpịsị aka ma ọ bụ ihe ndị ọzọ n'ime oghere ikuku ma ọ bụ ikuku na-abata.
• Do not use outdoors. This fan is designed for indoor use only.
• Gbaa mbọ hụ na etinyere fan ahụ n'elu kwụsiri ike, dị larịị ka ọ ghara ịfetụ.
• Debe ụmụaka na anụ ụlọ n'ebe onye ofufe nọ n'oge ọrụ.
• The small grid spacing helps to keep out accidental fingers and paws.

Ntọala na Mgbakọ

Your BILT HARD 12-inch floor fan requires minimal assembly. Follow these steps:

1. Wepu akụrụngwa: Carefully remove the fan and its support bar from the packaging.
2. Attach Support Bar: The fan comes with a support bar designed for floor placement. Snap this piece into place at the base of the fan.
3. Wepụ plastik nchedo: Some units may have protective plastic secured by the rubber feet. Gently remove the rubber nubs, peel off the plastic, and re-secure the rubber nubs to ensure stability. The tube base with rubber feet ensures stability.
4. Ndokwa: Place the fan on a firm, level surface. Ensure it is away from curtains or other objects that could be drawn into the fan blades.
5. Tinye: Connect the 2-pin grounded plug into a suitable electrical outlet.

Ntuziaka ọrụ

The BILT HARD 12-inch floor fan features simple controls for ease of use.

Njikwa ike na ọsọ ọsọ

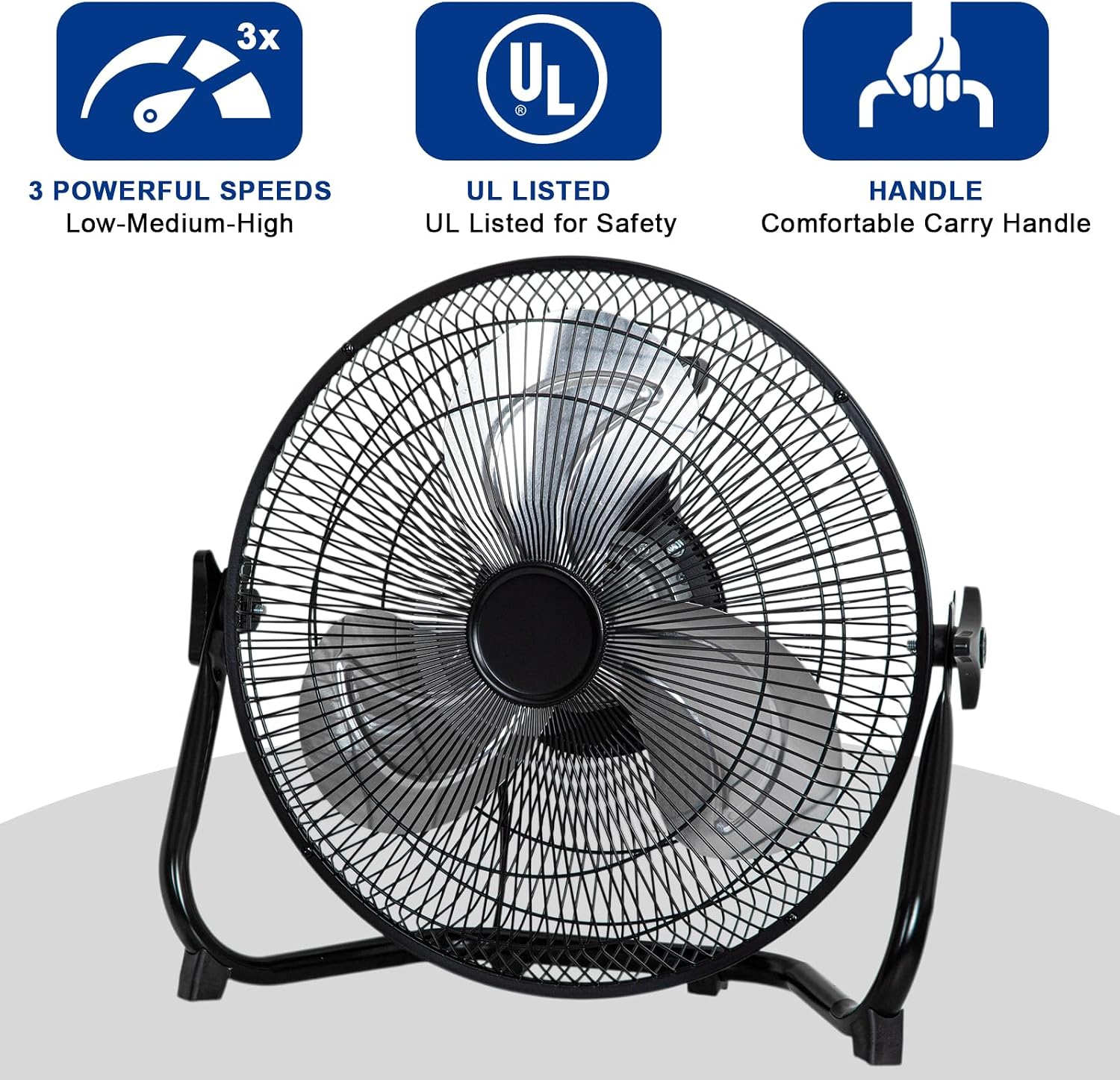

The fan is equipped with a button control switch, typically located on the rear of the fan housing. This switch allows you to select from three distinct speed settings:

• Setting 1 (Low): Provides 1005 CFM (Cubic Feet Per Minute) for gentle airflow.
• Setting 2 (Medium): Provides 1335 CFM for moderate airflow.
• Setting 3 (High): Provides 1650 CFM for powerful, high-velocity airflow.

Rotate the dial to your desired speed setting. Turn the dial to '0' to switch the fan off.

Adjustable Tilt Function

The fan head can be adjusted up to 180 degrees. This allows you to direct the airflow precisely where it is needed. To adjust the tilt, loosen the knobs on either side of the fan, position the fan head to your desired angle, and then tighten the knobs securely.

Enwere ike ibugharị

The fan features a built-in handle for easy transport. Its lightweight design makes it convenient to move between rooms or locations.

Nlekọta

Regular maintenance ensures optimal performance and longevity of your fan. Always unplug the fan before cleaning.

• Akara nhicha: The fan blades can be cleaned using compressed air to remove dust and debris. The larger outer cage grill spacing allows for easier access.
• Nchacha mpụta: Jiri nwayọ hichaa elu mpụta nke fan, damp akwa . Ejila ihe nchacha abrasive ma ọ bụ ihe mgbaze.
• Nchekwa: When not in use for extended periods, store the fan in a cool, dry place, preferably in its original packaging or covered to protect it from dust.

Nchọpụta nsogbu

If you encounter issues with your BILT HARD floor fan, refer to the following common problems and solutions:

• Onye ofufe anaghị agbanwu:
  • Gbaa mbọ hụ na etinyere eriri ọkụ n'ime oghere eletrik na-arụ ọrụ.
  • Check if the speed control dial is set to an active speed (1, 2, or 3) and not '0' (off).
  • Chọpụta na ihe nbibi sekit emebibeghị.
• Mbelata ikuku ikuku:
  • Check for any obstructions around the fan blades or grill.
  • Clean the fan blades and grill if dust or debris has accumulated.
• Mkpọtụ na-adịghị ahụkebe:
  • Ensure the fan is on a stable, level surface.
  • Check for any loose parts or foreign objects inside the fan grill.
  • If the noise persists and is unusual, discontinue use and contact customer support.

For issues not covered here, please contact BILT HARD customer support.

Nkọwapụta

Akwụkwọ ikike na nkwado

The BILT HARD 12-inch floor fan is backed by a 1-afọ nkwa. We offer free exchanges for any quality problems within the warranty period.

For warranty claims, technical support, or any questions regarding your product, please contact BILT HARD customer service through the retailer where the product was purchased or visit the official BILT HARD websaịtị.
