BAKAJI Pedestal Fan with Remote Control

1. Okwu mmalite

Thank you for choosing the BAKAJI Pedestal Fan. This manual provides important information for the safe and efficient use of your new fan. Please read these instructions carefully before assembly, operation, and maintenance. Keep this manual for future reference.

Image showing the BAKAJI Pedestal Fan and its remote control, highlighting the convenience of remote operation.

2. Ntuziaka nchekwa

• Gbaa mbọ hụ na edobere fan ahụ n'elu kwụsiri ike, dịkwa larịị ka ọ ghara ịfetụ.
• Do not insert fingers or any objects through the fan grille when the fan is operating.
• Keep the fan away from water or other liquids. Do not use in wet environments.
• Kwupuo fan na oghere ọkụ tupu ihicha, mmezi, ma ọ bụ mgbe ejighị ya.
• Ejila eriri ma ọ bụ plọg mebiri emebi arụ ọrụ fan. Kpọtụrụ ndị ọrụ ruru eru maka nrụzi.
• Ezubere ngwa a maka iji ndị mmadụ (gụnyere ụmụaka) nwere ike anụ ahụ, mmetụta uche ma ọ bụ nke uche, ma ọ bụ enweghị ahụmịhe na ihe ọmụma, ma ọ bụrụ na enyereghị ha nlekọta ma ọ bụ ntụziaka gbasara iji ngwa ahụ site n'aka onye na-ahụ maka nchekwa ha.
• Ekwesịrị ilekọta ụmụaka ka ha hụ na ha ejighi ngwa eji egwu egwu egwu.

3. Ihe ngwugwu

Please check the package contents upon opening. Ensure all parts are present and undamaged.

• Fan Motor Unit with Control Panel
• Front and Rear Grilles
• Agụba Fan (agụba 3)
• Pedestal Pole (Adjustable Height)
• Agba okirikiri
• Njikwa anya
• Fasteners and Assembly Tools (if applicable)
• Akwụkwọ ntuziaka

4. Mgbakọ na Ntọala

Follow these steps to assemble your pedestal fan:

1. Kpọkọta ntọala: Attach the pedestal pole to the round base using the provided fasteners. Ensure it is securely tightened.
2. Tinye Ngalaba moto: Secure the fan motor unit to the top of the pedestal pole.
3. Wụnye Grille Azụ: Place the rear grille onto the motor unit, aligning the notches. Secure it with the retaining nut.
4. Mount the Blades: Carefully slide the fan blades onto the motor shaft. Ensure they are properly seated and secured with the blade cap.
5. Wụnye grille dị n'ihu: Attach the front grille to the rear grille, ensuring all clips are securely fastened.
6. Hazie Ogologo na Ntụda: Adjust the fan's height to your desired level using the adjustable pole. The fan head can also be tilted to direct airflow.

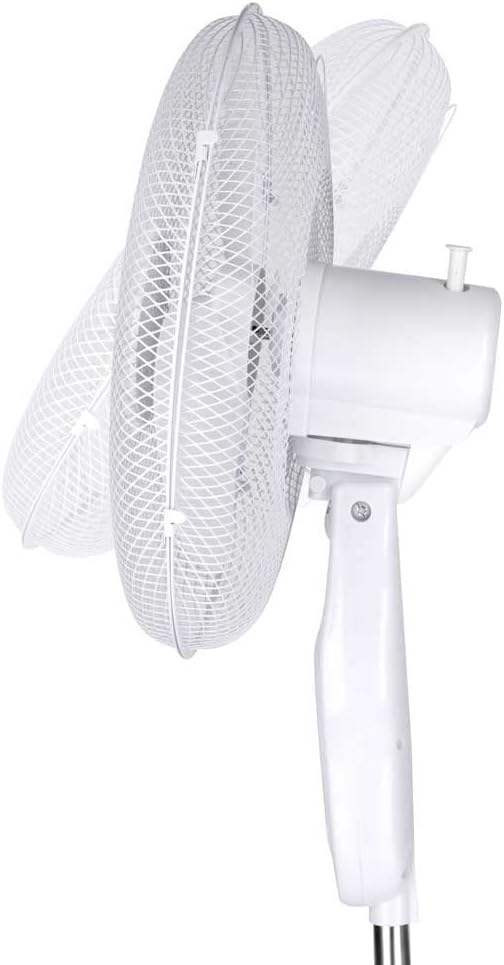

Image demonstrating the adjustable tilt feature of the fan head, allowing users to direct airflow.

5. Ntuziaka ọrụ

Your BAKAJI Pedestal Fan can be operated using the control panel on the unit or the included remote control.

Ọrụ Panel Control:

• Gbanyụọ/gbanyụọ: Pịa ka ịgbanwuo ma ọ bụ gbanyụọ fan.
• Ọsọ: Press to cycle through the 3 speed settings (Low, Medium, High).
• Edị: Press to select different ventilation modes (e.g., Normal, Sleep, Natural - specific modes may vary).
• Oge: Press to set the operating timer (up to 4 hours).
• OSC (Oscillation): Press to activate or deactivate the horizontal oscillation function.

Ọrụ njikwa anya:

Njikwa dịpụrụ adịpụ na-enye ohere dị mfe ịnweta ọrụ fan niile site na anya.

Zuru ezu view of the remote control and the fan's control panel, illustrating buttons for power, mode, speed, timer, and oscillation.

• Gbanyụọ/gbanyụọ: Power button to turn the fan on or off.
• Edị: Selects different fan modes.
• Oge: Sets the automatic shut-off timer (0.5H, 1H, 2H, 4H).
• SPEED/ON: Adjusts fan speed (L, M, H) and can also turn the fan on.
• OSC: Activates or deactivates horizontal oscillation.

6. Atụmatụ

• Ikuku dị ike: 50 Watt motor circulates up to 80 m³ of air per minute.
• Ntọala ọsọ ọsọ 3: Choose between Low, Medium, and High for customized comfort.
• Ọrụ ngụ oge: Tọọ fan ahụ ka ọ gbanyụọ na akpaghị aka mgbe awa 0.5, 1, 2, ma ọ bụ 4 gachara.
• Oscillation kwụ ọtọ: Wide-angle oscillation ensures even air distribution across the room.
• Hedị Arụrụ: Fan height can be adjusted up to 128 cm for optimal positioning.
• Njikwa anya: Conveniently operate all functions from a distance.
• Ọrụ dị jụụ: 40 cm diameter blades designed for reduced noise.

Visual representation of the fan with callouts for its 50W power, 3 speeds, and 4-hour timer function.

7. Nlekọta

Regular cleaning and maintenance will ensure optimal performance and longevity of your fan.

• Nhicha: Kwupuo fan mgbe niile tupu ihicha ya. Jiri nwayọọ, damp akwa iji hichaa elu elu. Ejila ihe nchacha abrasive ma ọ bụ ihe mgbaze.
• Nchacha Grille: The grilles can be removed for thorough cleaning of the blades. Use a soft brush or vacuum cleaner to remove dust from the blades. Ensure all parts are dry before reassembling.
• Nchekwa: Mgbe a naghị eji ya ogologo oge, chekwaa fan ahụ n'ebe dị jụụ, nke kpọrọ nkụ, ọkacha mma na nkwakọ ngwaahịa mbụ ya.

8. Nchọpụta nsogbu

Ọ bụrụ na ị zutere nsogbu ọ bụla na onye na-akwado gị, rụtụ aka na nsogbu na ngwọta ndị a na-emekarị:

Ọ bụrụ na nsogbu ahụ dịgidere mgbe ịnwale azịza ndị a, biko kpọtụrụ nkwado ndị ahịa.

9. Nkọwapụta

10. Akwụkwọ ikike na nkwado

For warranty information or technical support, please refer to the documentation included with your purchase or contact BAKAJI customer service. Keep your proof of purchase for warranty claims.
