Fagor FA-950SLTX 5-Burner Gas Cooktop Instruction Manual

1. Okwu mmalite

Thank you for choosing the Fagor FA-950SLTX 5-Burner Gas Cooktop. This manual provides essential information for the safe installation, operation, and maintenance of your appliance. Please read these instructions thoroughly before using the cooktop and retain them for future reference.

2. Ozi nchekwa dị mkpa

Ịdọ aka ná ntị: Ọ bụrụ na agbasoghị ozi dị n'akwụkwọ ntuziaka a nke ọma, ọkụ ma ọ bụ mgbawa nwere ike ịkpata mmebi ihe onwunwe, mmerụ ahụ nkeonwe ma ọ bụ ọnwụ.

• Echekwala ma ọ bụ jiri mmanụ ụgbọala ma ọ bụ vapors na mmiri mmiri ndị ọzọ na-ere ọkụ n'akụkụ nke a ma ọ bụ ngwa ọ bụla ọzọ.
• Kedu ihe ị ga-eme ma ọ bụrụ na ị na-esi ísì gas:
  1. Anwala ịgbanye ngwa ọ bụla ọkụ.
  2. Emetụla mgba ọkụ eletrik ọ bụla aka; ejikwala ekwentị ọ bụla n'ụlọ gị.
  3. Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
  4. Ọ bụrụ na ịnweghị ike iru onye na-eweta gas gị, kpọọ ngalaba mgbanyụ ọkụ.
• A ga-arụrịrị nrụnye na ọrụ site n'aka onye nrụnye tozuru etozu, ụlọ ọrụ ọrụ, ma ọ bụ onye na-eweta gas.
• Ensure adequate ventilation in the kitchen area during operation.
• Debe ụmụaka pụọ ​​na ngwa ngwa mgbe a na-arụ ọrụ na mgbe ọ na-ajụ oyi.
• Ejila ngwa ahụ dị ka ikpo ọkụ.

3. Ngwaahịa gafereview

The Fagor FA-950SLTX is a 34-inch gas cooktop designed for built-in installation, featuring a durable stainless steel surface and five powerful burners. It is equipped with a universal ignition system and a flame failure safety device for enhanced safety.

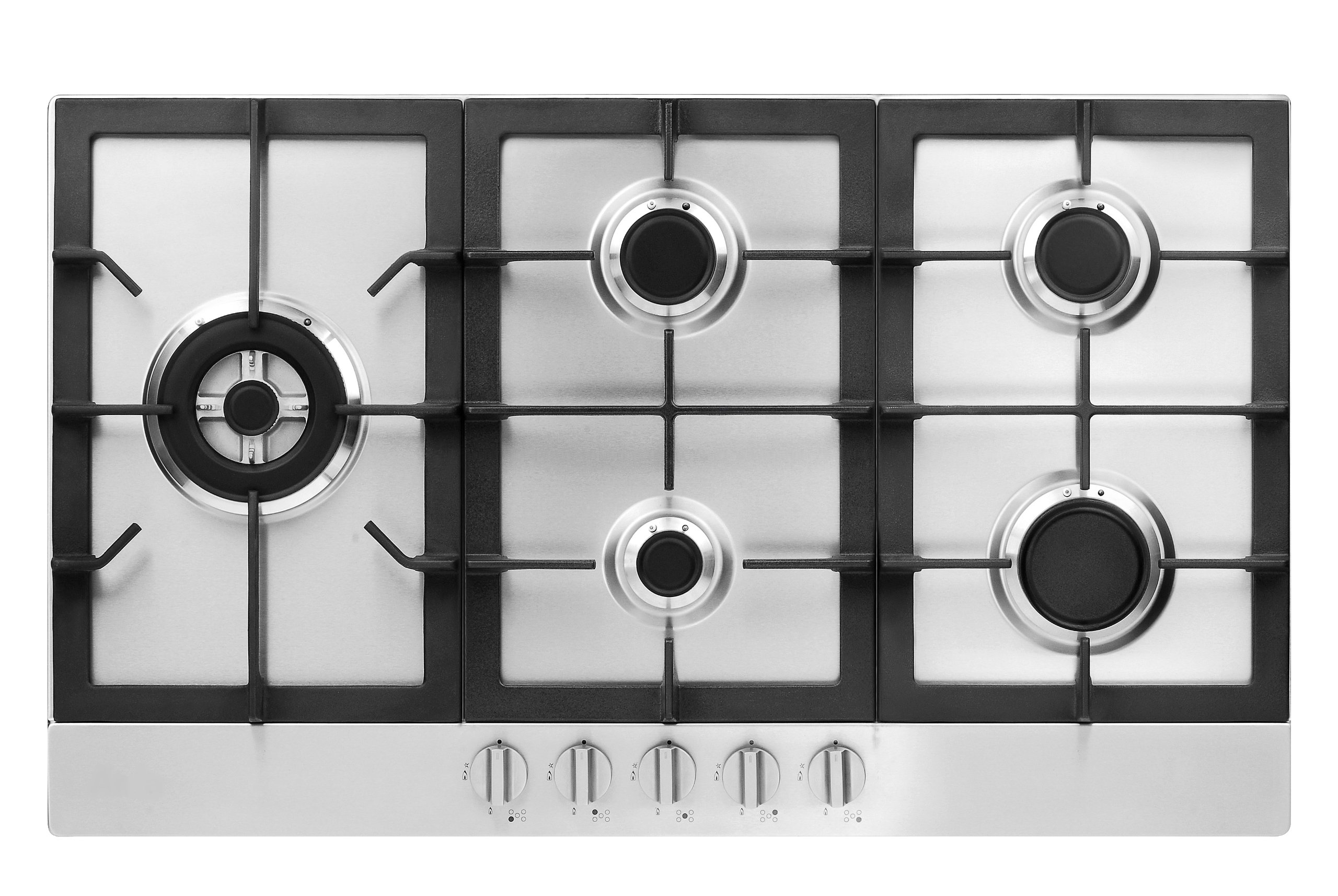

Foto 3.1: N'elu view of the Fagor FA-950SLTX 5-Burner Gas Cooktop. This image shows the stainless steel surface, five gas burners with continuous grates, and control knobs located at the front.

Akụkụ ndị bụ isi:

• 5 Gas Burners: Provides versatile cooking options.
• Interlocking Continuous Grates: Allows for easy movement of cookware across burners.
• Automatic Re-ignition: Automatically re-lights a burner if the flame accidentally extinguishes.
• Powerful Sealed Burners: Designed for efficient cooking and easy cleaning.
• Triple Crown Burner (16,000 BTU/h): A high-power burner for rapid heating and large cookware.
• Universal Ignition: Ensures reliable ignition for all burners.
• Ngwaọrụ nchekwa ọdịda ọkụ: Automatically cuts off gas supply if the flame is extinguished.
• Metallic Knobs: Durable and easy to operate controls.
• LPG Conversion Kit Included: Allows for conversion to Liquid Propane Gas if needed.

4. Ntọala na nwụnye

Installation of this gas cooktop must be performed by a qualified technician in accordance with local codes and regulations. Ensure the installation area meets the required dimensions and ventilation standards.

4.1 Nwepu

• Carefully remove all packaging materials from the cooktop.
• Inspect the appliance for any shipping damage. Report any damage immediately to the carrier and your dealer.
• Gbaa mbọ hụ na akụrụngwa niile edepụtara na listi nkwakọ dị.

4.2 Ọnọdụ chọrọ

• The cooktop is designed for built-in installation into a countertop.
• Ensure sufficient clearance from combustible materials above and around the cooktop.
• Provide adequate ventilation as per local building codes.

4.3 Njikọ Gas na Eletriki

• The cooktop operates on natural gas or can be converted to LPG using the included conversion kit.
• Electrical connection: 120 Volts. This is required for the electronic ignition system.
• All gas and electrical connections must comply with local codes and be performed by a licensed professional.
• Perform a leak test on all gas connections after installation.

4.4 Akụkụ na ịkpụ

The overall product dimensions are approximately 20.07 inches (D) x 33.86 inches (W) x 2.15 inches (H). Refer to the detailed installation template for precise countertop cutout dimensions.

5. Ntuziaka ọrụ

5.1 Tupu ojiji mbụ

• Remove any protective films or stickers from the cooktop surface and grates.
• Jiri mgbasa ozi hichaa elu elu esi nriamp akwa na ncha dị nro.
• Ensure all burner caps and grates are correctly positioned.

5.2 Lighting a Burner

1. Place cookware on the desired burner grate.
2. Push down and turn the corresponding control knob counter-clockwise to the "HIGH" position. You will hear a clicking sound as the electronic ignition sparks.
3. Once the flame ignites, continue to hold the knob down for a few seconds to allow the flame failure safety device to engage.
4. Release the knob and adjust the flame to the desired cooking intensity by turning the knob between "HIGH" and "LOW" settings.
5. If the burner does not light within 15 seconds, turn the knob to the "OFF" position, wait one minute, and try again.

5.3 Flame Adjustment

• The flame should be stable and blue, with a visible inner cone.
• Adjust the flame size to match the bottom of your cookware. A flame that extends beyond the cookware can waste energy and pose a safety risk.
• For simmering, turn the knob to the lowest setting. If simmering is difficult to achieve, ensure the burner caps are clean and correctly seated.

5.4 Ịgbanyụ ihe ọkụ

To turn off a burner, simply turn the control knob clockwise to the "OFF" position. Ensure the flame is completely extinguished.

6. Nlekọta na nlekọta

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Fagor gas cooktop.

6.1 Nhicha kwa ụbọchị

• Kwe ka ebe a na-esi nri ka ọ dị jụụ kpamkpam tupu ihicha ya.
• Wipe the stainless steel surface with a soft cloth and mild soapy water or a specialized stainless steel cleaner. Avoid abrasive cleaners or scouring pads.
• Kpochapụ ihe na-awụfusị ozugbo iji gbochie ntụpọ.

6.2 Burner and Grate Cleaning

• Remove the continuous grates and burner caps. These can be washed in warm soapy water. For stubborn stains, a non-abrasive scrub brush can be used.
• Ensure burner ports are clear of food debris. Use a small brush or toothpick if necessary.
• Dry all parts thoroughly before reassembling. Incorrectly placed burner caps can affect flame performance.
• The sealed burners are designed to prevent spills from entering the internal components, simplifying cleanup.

6.3 Igwe njikwa

The metallic control knobs can be pulled off for cleaning. Wash them with warm soapy water, dry thoroughly, and reattach.

7. Nchọpụta nsogbu

Before contacting service, please review nsogbu na azịza ndị a na-ahụkarị:

8. Nkọwapụta

9. Akwụkwọ ikike na nkwado

9.1 Akwụkwọ ikike nke onye nrụpụta

This Fagor cooktop is covered by a 1-year Parts & Labor warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal household use. Please retain your proof of purchase for warranty claims.

The warranty does not cover damage resulting from improper installation, misuse, abuse, accident, or unauthorized repairs. For full warranty terms and conditions, please refer to the documentation included with your product or contact Fagor customer service.

9.2 Nkwado ndị ahịa

For technical assistance, troubleshooting beyond this manual, or to schedule service, please contact Fagor customer support. Have your model number (FA-950SLTX) and serial number ready when you call.

Contact information for Fagor customer support can typically be found on the manufacturer's websaịtị ma ọ bụ na nkwakọ ngwaahịa.
